Search › Model › AE85

AE85

Toyota COROLLA · 1983 · 4,790 parts · 177 categories

4,790 items

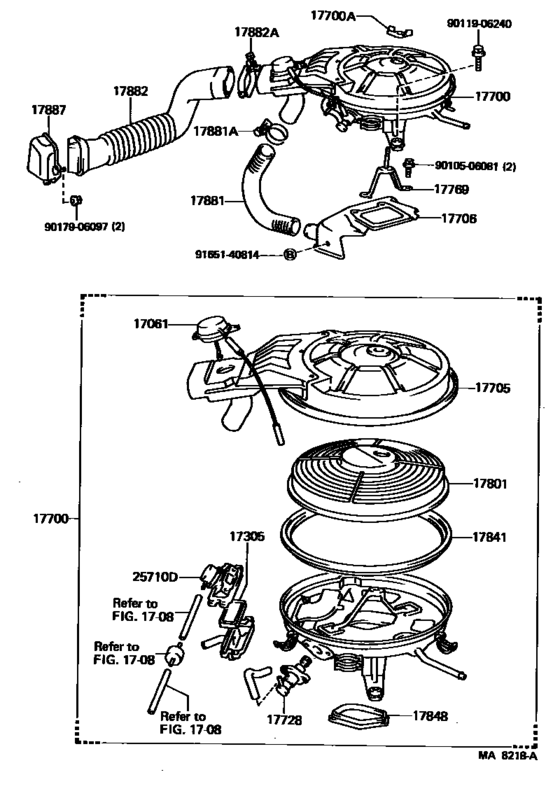

Air Cleaner ([05.1985 - ] (8505- )3AU) 38

#	OEM	Part name
17061	17061-15040	Diaphragm Sub-Assy
17305	17305-15030	Valve Sub-Assy, Reed
17305	17305-16010	Valve Sub-Assy, Reed
17700	17700-15150	Cleaner Assy, Air
17700	17700-15220	Cleaner Assy, Air
17700	90175-06003	Nut, Wing(For Air Cleaner)
17700	90175-06011	Nut, Wing(For Air Cleaner)
17705	17705-15060	Cap Sub-Assy, Air Cleaner
17705	17705-15130	Cap Sub-Assy, Air Cleaner
17706	17902-16030	Inlet Sub-Assy, Air Cleaner, No.2
17706	17902-16031	Inlet Sub-Assy, Air Cleaner, No.2
17728	17728-13030	Valve, Thermostatic
17728	17728-15040	Valve, Thermostatic
17769	17769-15020	Support, Air Cleaner
17801	17801-10030	Element Sub-Assy, Air Cleaner Filter
17801	17801-11100	Element Sub-Assy, Air Cleaner Filter
17801	17801-15010	Element Sub-Assy, Air Cleaner Filter
17841	17841-15010	Gasket, Filter Element
17841	17845-10020	Gasket, Filter Element
17848	17848-15010	Gasket, Air Cleaner To Carburetor
17848	90430-63001	Gasket, Air Cleaner To Carburetor
17848	17848-10020	Gasket, Air Cleaner To Carburetor
17881	17881-63010	Hose, Air Cleaner, No.1
17881	17881-74040	Hose, Air Cleaner, No.1
17881	96111-10460	Clamp Or Clip, Hose(For Radiator Inlet)
17882	17881-15060	Hose, Air Cleaner, No.2
17882	90460-01005	Clamp(For Air Cleaner Hose, No.2)
17887	58405-12020	Cover, Air Cleaner Hose
25710	25710-15050	Valve Assy, Air Switching
25710	25710-15070	Valve Assy, Air Switching
9010506081	90105-06081	BOLT FLANGE
9010506081	91511-B0614	BOLT, FLANGE
9011906240	90119-06240	New Genuine Part
9011906240	90119-06965	New Genuine Part
9017906097	90179-06097	Clip(For Front Bumper), No.1
9017906097	90179-06206	Nut
9165140814	91651-40814	BOLT
9165140814	90080-11228	New Genuine Part

OEM	Part name	Category
17061-15040	Diaphragm Sub-Assy	Air Cleaner ([05.1985 - ] (8505- )3AU)
17305-15030	Valve Sub-Assy, Reed	Air Cleaner ([05.1985 - ] (8505- )3AU)
17305-16010	Valve Sub-Assy, Reed	Air Cleaner ([05.1985 - ] (8505- )3AU)
17700-15150	Cleaner Assy, Air	Air Cleaner ([05.1985 - ] (8505- )3AU)
17700-15220	Cleaner Assy, Air	Air Cleaner ([05.1985 - ] (8505- )3AU)
17705-15060	Cap Sub-Assy, Air Cleaner	Air Cleaner ([05.1985 - ] (8505- )3AU)
17705-15130	Cap Sub-Assy, Air Cleaner	Air Cleaner ([05.1985 - ] (8505- )3AU)
17728-13030	Valve, Thermostatic	Air Cleaner ([05.1985 - ] (8505- )3AU)
17728-15040	Valve, Thermostatic	Air Cleaner ([05.1985 - ] (8505- )3AU)
17769-15020	Support, Air Cleaner	Air Cleaner ([05.1985 - ] (8505- )3AU)
17801-10030	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([05.1985 - ] (8505- )3AU)
17801-11100	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([05.1985 - ] (8505- )3AU)
17801-15010	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([05.1985 - ] (8505- )3AU)
17841-15010	Gasket, Filter Element	Air Cleaner ([05.1985 - ] (8505- )3AU)
17845-10020	Gasket, Filter Element	Air Cleaner ([05.1985 - ] (8505- )3AU)
17848-10020	Gasket, Air Cleaner To Carburetor	Air Cleaner ([05.1985 - ] (8505- )3AU)
17848-15010	Gasket, Air Cleaner To Carburetor	Air Cleaner ([05.1985 - ] (8505- )3AU)
17881-15060	Hose, Air Cleaner, No.2	Air Cleaner ([05.1985 - ] (8505- )3AU)
17881-63010	Hose, Air Cleaner, No.1	Air Cleaner ([05.1985 - ] (8505- )3AU)
17881-74040	Hose, Air Cleaner, No.1	Air Cleaner ([05.1985 - ] (8505- )3AU)
17902-16030	Inlet Sub-Assy, Air Cleaner, No.2	Air Cleaner ([05.1985 - ] (8505- )3AU)
17902-16031	Inlet Sub-Assy, Air Cleaner, No.2	Air Cleaner ([05.1985 - ] (8505- )3AU)
25710-15050	Valve Assy, Air Switching	Air Cleaner ([05.1985 - ] (8505- )3AU)
25710-15070	Valve Assy, Air Switching	Air Cleaner ([05.1985 - ] (8505- )3AU)
58405-12020	Cover, Air Cleaner Hose	Air Cleaner ([05.1985 - ] (8505- )3AU)
90080-11228	New Genuine Part	Air Cleaner ([05.1985 - ] (8505- )3AU)
90105-06081	BOLT FLANGE	Air Cleaner ([05.1985 - ] (8505- )3AU)
90119-06240	New Genuine Part	Air Cleaner ([05.1985 - ] (8505- )3AU)
90119-06965	New Genuine Part	Air Cleaner ([05.1985 - ] (8505- )3AU)
90175-06003	Nut, Wing(For Air Cleaner)	Air Cleaner ([05.1985 - ] (8505- )3AU)
90175-06011	Nut, Wing(For Air Cleaner)	Air Cleaner ([05.1985 - ] (8505- )3AU)
90179-06097	Clip(For Front Bumper), No.1	Air Cleaner ([05.1985 - ] (8505- )3AU)
90179-06206	Nut	Air Cleaner ([05.1985 - ] (8505- )3AU)
90430-63001	Gasket, Air Cleaner To Carburetor	Air Cleaner ([05.1985 - ] (8505- )3AU)
90460-01005	Clamp(For Air Cleaner Hose, No.2)	Air Cleaner ([05.1985 - ] (8505- )3AU)
91511-B0614	BOLT, FLANGE	Air Cleaner ([05.1985 - ] (8505- )3AU)
91651-40814	BOLT	Air Cleaner ([05.1985 - ] (8505- )3AU)
96111-10460	Clamp Or Clip, Hose(For Radiator Inlet)	Air Cleaner ([05.1985 - ] (8505- )3AU)
