AE82

Toyota COROLLA · 1983 · 3,952 parts · 162 categories

3,952 items

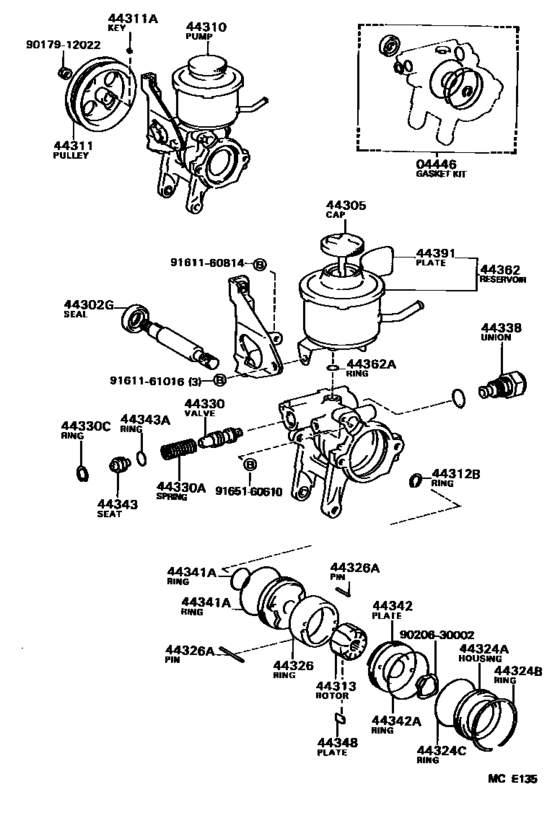

Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D) 67

#	OEM	Part name
4446	04446-01010	Gasket Kit, Power Steering Pump
4446	04446-27011	Gasket Kit, Power Steering Pump
44302	90311-18007	Seal, Oil, No.2(For Vane Pump Housing)
44305	44305-30020	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir
44310	44320-12061	Pump Assy, Vane
44310	44320-12062	Pump Assy, Vane
44311	44311-12040	Pulley, Vane Pump
44311	90280-05008	Key, Woodruff(For Distributor Drive Gear)
44312	90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-12010	Rotor, Vane Pump
44313	44313-22040	Rotor, Vane Pump
44313	44313-12020	Rotor, Vane Pump
44313	44313-22050	Rotor, Vane Pump
44313	44313-12030	Rotor, Vane Pump
44313	44313-22060	Rotor, Vane Pump
44313	44313-12040	Rotor, Vane Pump
44313	44313-22070	Rotor, Vane Pump
44313	44313-12050	Rotor, Vane Pump
44313	44313-22080	Rotor, Vane Pump
44324	44324-12031	Housing Sub-Assy, Vane Pump, Rear
44324	90521-62002	Ring, Snap, No.1(For Vane Pump Housing)
44324	90301-52001	Ring, O(For Pump Housing Rear)
44326	44325-12110	Ring, Fixed(For Vane Pump)
44326	44325-12120	Ring, Fixed(For Vane Pump)
44326	44325-12130	Ring, Fixed(For Vane Pump)
44326	44325-12140	Ring, Fixed(For Vane Pump)
44326	44325-12150	Ring, Fixed(For Vane Pump)
44326	90250-04047	Pin, Straight(For Vane Pump Cam Ring)
44326	90250-04049	Pin, Straight(For Vane Pump Cam Ring)
44330	44330-14010	Valve Assy, Flow Control
44330	44330-35191	Valve Assy, Flow Control
44330	44330-14020	Valve Assy, Flow Control
44330	44330-35201	Valve Assy, Flow Control
44330	44330-14030	Valve Assy, Flow Control
44330	44330-35211	Valve Assy, Flow Control
44330	44330-14040	Valve Assy, Flow Control
44330	44330-35221	Valve Assy, Flow Control
44330	44330-14050	Valve Assy, Flow Control
44330	44330-35231	Valve Assy, Flow Control
44330	44330-14060	Valve Assy, Flow Control
44330	44330-35241	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44330	96151-01700	Ring, Snap(For Flow Control Valve)
44338	44308-12042	Union Sub-Assy, Pressure Port
44341	90301-25001	Ring, O(For Vane Pump Front Side Plate)
44341	90301-25008	Ring, O(For Vane Pump Front Side Plate)
44342	44342-12021	Plate, Vane Pump Side, Rear
44342	44342-32010	Plate, Vane Pump Side, Rear
44343	44343-12010	Seat, Flow Control Spring
44343	96711-19014	O-Ring
44348	44345-12010	Plate, Vane Pump
44348	44345-12020	Plate, Vane Pump
44348	44345-12030	Plate, Vane Pump
44348	44345-12040	Plate, Vane Pump
44348	44345-12050	Plate, Vane Pump
44362	44306-12030	Reservoir, Oil(For Vane Pump)
44362	90301-12003	Ring, O(For Power Steering Suction Port)
44362	90301-11016	Ring, O(For Power Steering Suction Port)
44391	44391-12020	Plate, Power Steering Oil Reservoir Caution
9017912022	90179-12022	Nut(For Vane Pump Pulley)
9020630002	90206-30002	New Genuine Part
9161160814	91611-60814	Bolt
9161161016	91611-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161161016	91612-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9165160610	91651-60610	BOLT
9165160610	91651-B0610	BOLTWWASHER

OEM	Part name	Category
04446-01010	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
04446-27011	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44305-30020	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44306-12030	Reservoir, Oil(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44308-12042	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44311-12040	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44313-12010	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44313-12020	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44313-12030	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44313-12040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44313-12050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44313-22040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44313-22050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44313-22060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44313-22070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44313-22080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44320-12061	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44320-12062	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44324-12031	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44325-12110	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44325-12120	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44325-12130	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44325-12140	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44325-12150	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44330-14010	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44330-14020	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44330-14030	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44330-14040	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44330-14050	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44330-14060	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44330-35191	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44330-35201	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44330-35211	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44330-35221	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44330-35231	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44330-35241	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44342-12021	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44342-32010	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44343-12010	Seat, Flow Control Spring	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44345-12010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44345-12020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44345-12030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44345-12040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44345-12050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
44391-12020	Plate, Power Steering Oil Reservoir Caution	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
90179-12022	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
90206-30002	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
90250-04047	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
90250-04049	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
90280-05008	Key, Woodruff(For Distributor Drive Gear)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
90301-11016	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
90301-12003	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
90301-25001	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
90301-25008	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
90301-52001	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
90311-18007	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
90521-62002	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
91611-60814	Bolt	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
91611-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
91612-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
91651-60610	BOLT	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
91651-B0610	BOLTWWASHER	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
96151-01700	Ring, Snap(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
96711-19014	O-Ring	Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D)
