AE82

Toyota COROLLA · 1983 · 3,952 parts · 162 categories

3,952 items

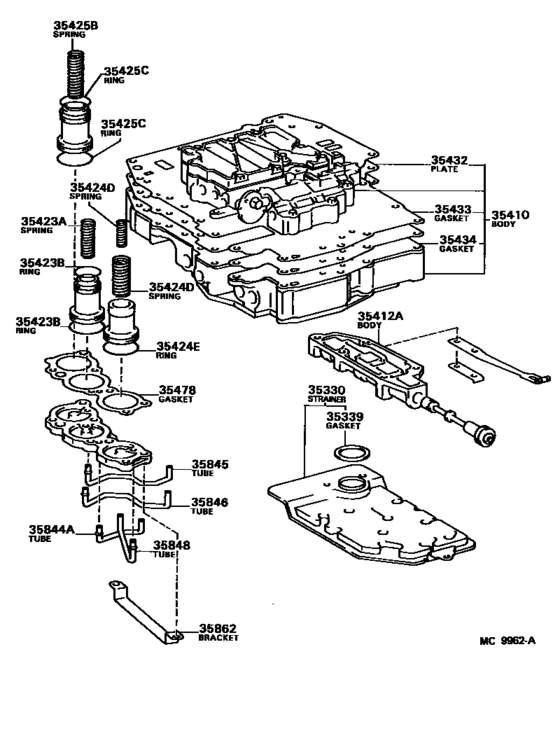

Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D) 89

#	OEM	Part name
35211	90250-02013	Pin, Straight (For Lock Up Signal Valve)
35211	90501-07025	Spring, Compression (For Lock Up Signal Valve)
35212	90501-07023	Spring, Compression (For Lock Up Relay Valve)
35215	35215-32010	Sleeve, Lock Up Relay Valve
35216	35216-32010	Stopper, Valve Sleeve
35218	90282-03003	Key, Straight (For Lock Up Signal Valve)
35330	35330-20010	Strainer Assy, Valve Body Oil
35330	35330-20H00	Tube, Rr Clutch Accumulator
35330	35330-20H01	Strainer Assy, Valve Body Oil
35330	35330-20H02	Strainer Assy, Valve Body Oil
35339	35339-32010	Gasket, Oil Strainer
35410	35410-12170	Body Assy, Transmission Valve
35410	35403-20010	Piston, B-2 Accumulator
35410	35410-12320	Body Assy, Transmission Valve
35410	90301-22185	Ring (For Accumulator Piston No.3)
35410	90301-29187	Ring, O (For Low Speed Brake Accumulator Piston)
35410	90501-20114	Spring, Compression (For B-2 Accumulator Piston)
35410	90501-24016	Spring, Compression (For B-2 Accumulator Piston)
35410	35410-20060	Body Assy, Transmission Valve
35412	35412-32010	Body, Manual Valve
35415	90501-16065	Spring, Compression (For Primary Regulator Valve)
35415	90201-06013	Washer (For Primary Regulator Valve)
35415	94613-10601	Washer (For Primary Regulator Valve)
35415	94614-10600	Washer (For Primary Regulator Valve)
35415	90523-06004	Ring, E (For Primary Regulator Valve)
35419	90501-10056	Spring, Compression (For Check Valve)
35420	35495-22010	Ball (For Transfer Upper Valve Body)
35420	35495-22020	Ball (For Transfer Upper Valve Body)
35422	35422-32010	Stopper, Valve Vibrating
35423	90501-26014	Spring, Compression (For Accumulator Piston No.1)
35424	90501-22005	Spring, Compression (For C-1 Accumulator Piston)
35424	90501-21013	Spring, Compression (For C-1 Accumulator Piston)
35424	90501-23044	Spring, Compression (For C-1 Accumulator Piston)
35425	90501-23042	Spring, Compression (For C-2 Accumulator Piston)
35425	90301-26190	Ring, O (For Flange Yoke)
35431	35431-32010	Gasket, Upper Valve Body Cover
35432	35432-20031	Plate, Valve Body, No.1
35433	35433-20020	Gasket, Valve Body, No.1
35434	35434-32020	Gasket, Valve Body, No.2
35442	35442-32010	Strainer, Throttle Modulator Oil
35445	90501-11013	Spring, Compression (For 2Nd Modulator Valve)
35445	90501-09035	Spring, Compression (For Low Modulator Valve)
35445	90250-03035	Pin, Straight (For Low Modulator Valve)
35449	90501-09032	Spring, Compression (For Valve Pressure Relief)
35450	90360-06023	Ball (For Rear Upper Valve Body)
35451	35451-32010	Sleeve, Throttle Valve
35451	90250-03036	Pin, Straight (For Throttle Valve Sleeve)
35453	90501-09052	Spring, Compression (For Detent Regulator Valve)
35456	90501-06027	Spring, Compression (For 2-3 Shift Valve)
35456	90282-03004	Key, Straight (For 2-3 Shift Valve)
35457	90282-03001	Key, Straight (For Lock Up Signal Valve)
35457	90501-09037	Spring, Compression (For Throttle Modulator Valve)
35461	90501-10054	Spring, Compression (For Down Shift Plug)
35462	90501-07022	Spring, Compression (For Throttle Valve)
35462	90523-06023	Ring, E (For Throttle Valve)
35464	90501-06025	Spring, Compression (For 1-2 Shift Valve)
35468	90501-14059	Spring, Compression (For Secondary Regulator Valve)
35477	35477-32020	Gasket, Valve Body Cover
35477	35477-32021	Gasket, Valve Body Cover
35478	35478-32010	Gasket, Accumulator Cover
35491	90501-10055	Spring, Compression (For Accumulator Control Valve No.1)
35491	90282-03002	Key, Straight (For Lock Up Signal Valve)
35521	90508-11003	Spring (For Throttle Valve Cam Return)
35521	90201-06472	Washer (For Throttle Valve Cam Set)
35521	90105-06018	Bolt (For Throttle Valve Cam Set)
35844	35844-32021	Tube, Accumulator Back Pressure, No.1
35845	35845-32011	Tube, Rr Clutch Accumulator
35845	35845-32012	Tube, Rr Clutch Accumulator
35846	35846-32021	Tube, Brake Accumulator
35846	35846-32022	Tube, Brake Accumulator
35848	35848-32011	Tube, Forward Clutch Accumulator
35862	35862-32011	Bracket, Accumulator Apply Tube
9010505001	90105-05001	New Genuine Part
9010505002	90105-05002	New Genuine Part
9010505003	90105-05003	Bolt (For Pressure Regulator Valve No.2)
9010505003	90119-05035	Bolt (For Pressure Regulator Valve No.2)
9010505010	90105-05010	New Genuine Part
9010505011	90105-05011	New Genuine Part
9010506017	90105-06017	Bolt(for Cylinder Head Cover)
9010506017	91551-A0625	Bolt(For Cylinder Head Cover)
9010506025	90105-06025	New Genuine Part
9010506025	91511-C0635	BOLT, FLANGE
9010506026	90105-06026	Bolt (For Transaxle Case Upper Cover)
9010506026	91511-H0620	Bolt (For Transaxle Case Upper Cover)
9010506028	90105-06028	New Genuine Part
9010506029	90105-06029	Bolt(For Cylinder Head Cover)
9010506029	90105-06202	Bolt(For Cylinder Head Cover)
9010506030	90105-06030	New Genuine Part
9010506030	91511-80614	BOLT FLANGE

OEM	Part name	Category
35215-32010	Sleeve, Lock Up Relay Valve	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35216-32010	Stopper, Valve Sleeve	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35330-20010	Strainer Assy, Valve Body Oil	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35330-20H00	Tube, Rr Clutch Accumulator	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35330-20H01	Strainer Assy, Valve Body Oil	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35330-20H02	Strainer Assy, Valve Body Oil	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35339-32010	Gasket, Oil Strainer	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35403-20010	Piston, B-2 Accumulator	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35410-12170	Body Assy, Transmission Valve	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35410-12320	Body Assy, Transmission Valve	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35410-20060	Body Assy, Transmission Valve	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35412-32010	Body, Manual Valve	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35422-32010	Stopper, Valve Vibrating	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35431-32010	Gasket, Upper Valve Body Cover	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35432-20031	Plate, Valve Body, No.1	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35433-20020	Gasket, Valve Body, No.1	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35434-32020	Gasket, Valve Body, No.2	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35442-32010	Strainer, Throttle Modulator Oil	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35451-32010	Sleeve, Throttle Valve	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35477-32020	Gasket, Valve Body Cover	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35477-32021	Gasket, Valve Body Cover	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35478-32010	Gasket, Accumulator Cover	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35495-22010	Ball (For Transfer Upper Valve Body)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35495-22020	Ball (For Transfer Upper Valve Body)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35844-32021	Tube, Accumulator Back Pressure, No.1	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35845-32011	Tube, Rr Clutch Accumulator	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35845-32012	Tube, Rr Clutch Accumulator	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35846-32021	Tube, Brake Accumulator	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35846-32022	Tube, Brake Accumulator	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35848-32011	Tube, Forward Clutch Accumulator	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
35862-32011	Bracket, Accumulator Apply Tube	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90105-05001	New Genuine Part	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90105-05002	New Genuine Part	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90105-05003	Bolt (For Pressure Regulator Valve No.2)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90105-05010	New Genuine Part	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90105-05011	New Genuine Part	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90105-06017	Bolt(for Cylinder Head Cover)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90105-06018	Bolt (For Throttle Valve Cam Set)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90105-06025	New Genuine Part	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90105-06026	Bolt (For Transaxle Case Upper Cover)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90105-06028	New Genuine Part	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90105-06029	Bolt(For Cylinder Head Cover)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90105-06030	New Genuine Part	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90105-06202	Bolt(For Cylinder Head Cover)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90119-05035	Bolt (For Pressure Regulator Valve No.2)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90201-06013	Washer (For Primary Regulator Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90201-06472	Washer (For Throttle Valve Cam Set)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90250-02013	Pin, Straight (For Lock Up Signal Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90250-03035	Pin, Straight (For Low Modulator Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90250-03036	Pin, Straight (For Throttle Valve Sleeve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90282-03001	Key, Straight (For Lock Up Signal Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90282-03002	Key, Straight (For Lock Up Signal Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90282-03003	Key, Straight (For Lock Up Signal Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90282-03004	Key, Straight (For 2-3 Shift Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90301-22185	Ring (For Accumulator Piston No.3)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90301-26190	Ring, O (For Flange Yoke)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90301-29187	Ring, O (For Low Speed Brake Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90360-06023	Ball (For Rear Upper Valve Body)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-06025	Spring, Compression (For 1-2 Shift Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-06027	Spring, Compression (For 2-3 Shift Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-07022	Spring, Compression (For Throttle Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-07023	Spring, Compression (For Lock Up Relay Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-07025	Spring, Compression (For Lock Up Signal Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-09032	Spring, Compression (For Valve Pressure Relief)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-09035	Spring, Compression (For Low Modulator Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-09037	Spring, Compression (For Throttle Modulator Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-09052	Spring, Compression (For Detent Regulator Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-10054	Spring, Compression (For Down Shift Plug)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-10055	Spring, Compression (For Accumulator Control Valve No.1)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-10056	Spring, Compression (For Check Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-11013	Spring, Compression (For 2Nd Modulator Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-14059	Spring, Compression (For Secondary Regulator Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-16065	Spring, Compression (For Primary Regulator Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-20114	Spring, Compression (For B-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-21013	Spring, Compression (For C-1 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-22005	Spring, Compression (For C-1 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-23042	Spring, Compression (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-23044	Spring, Compression (For C-1 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-24016	Spring, Compression (For B-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90501-26014	Spring, Compression (For Accumulator Piston No.1)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90508-11003	Spring (For Throttle Valve Cam Return)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90523-06004	Ring, E (For Primary Regulator Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
90523-06023	Ring, E (For Throttle Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
91511-80614	BOLT FLANGE	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
91511-C0635	BOLT, FLANGE	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
91511-H0620	Bolt (For Transaxle Case Upper Cover)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
91551-A0625	Bolt(For Cylinder Head Cover)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
94613-10601	Washer (For Primary Regulator Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
94614-10600	Washer (For Primary Regulator Valve)	Valve Body & Oil Strainer (Atm) ([02.1987 - ] (8702- )ATM..D)
