Search › Model › AE82

AE82

Toyota COROLLA · 1983 · 3,952 parts · 162 categories

3,952 items

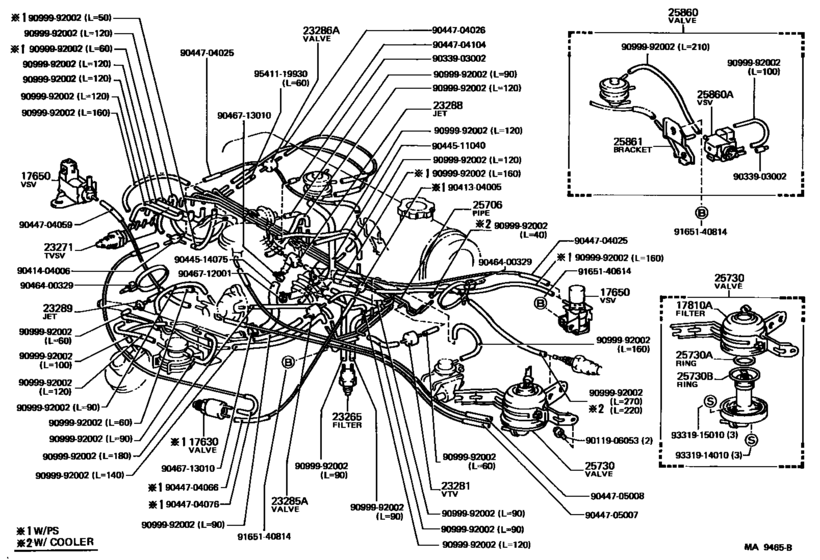

Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC) 49

#	OEM	Part name
17630	17630-15030	Valve Assy, Air Control
17650	89570-12301	Valve Assy, Vacuum Switching
17650	90910-12007	Valve Assy, Vacuum Switching
17810	17810-16010	Filter Assy, Air
17810	17810-15020	Filter Assy, Air
23265	90917-11023	Filter, Gas, No.1
23271	90925-02076	Valve, Thermostatic Vacuum Switching, No.1
23281	90925-01014	Valve, Vacuum Transmitting, No.1
23285	90917-10049	Valve, Check, No.1
23288	90925-04012	Jet, No.1
23289	90925-04034	Jet, No.1
25706	25706-16121	Pipe Sub-Assy, Vacuum Transmitting, No.1
25706	25706-16141	Pipe Sub-Assy, Vacuum Transmitting, No.1
25730	25730-16040	Valve Assy, Electric Bleed Air Control
25730	25730-16110	Valve Assy, Electric Bleed Air Control
25730	90096-80002	Ring, O, No.1(For Electric Bleed Air Control Valve)
25730	90099-06032	Ring, O, No.2(For Electric Bleed Air Control Valve)
25860	25860-01030	Valve Assy, Vacuum Switching, No.1
25860	25860-01040	Valve Assy, Vacuum Switching, No.1
25860	90080-91020	Valve, Vacuum Switching, No.1
25861	25861-01010	Bracket, Vacuum Switching Valve
25861	25861-01020	Bracket, Vacuum Switching Valve
9011906053	90119-06053	New Genuine Part
9033903002	90339-03002	PLUG
9041304005	90413-04005	Way, 3, No.1 (For Front Drive Shift)
9041404006	90414-04006	New Genuine Part
9044511040	90445-11040	Hose, No.1(For Idle-Up)
9044514075	90445-14075	Hose, No.1(For Air Pipe)
9044704025	90447-04025	New Genuine Part
9044704026	90447-04026	New Genuine Part
9044704059	90447-04059	New Genuine Part
9044704066	90447-04066	New Genuine Part
9044704076	90447-04076	New Genuine Part
9044704104	90447-04104	New Genuine Part
9044705007	90447-05007	New Genuine Part
9044705008	90447-05008	New Genuine Part
9046400329	90464-00329	Clamp (For Fuel Lid Lock Control Cable)
9046400329	82711-12200	Clamp (For Fuel Lid Lock Control Cable)
9046712001	90467-12001	Clip(For Carburetor Fuel Hose)
9046712001	96132-51100	Clip (For Hose)
9046713010	90467-13010	Clip(For Ventilation Hose No.2)
9046713010	96132-51300	Clip(For Ventilation Hose No.2)
9099992002	90999-92002	Air Hose (300 mm)
9165140614	91651-40614	Bolt
9165140814	91651-40814	BOLT
9165140814	90080-11228	New Genuine Part
9331914010	93319-14010	SCREW
9331915010	93319-15010	SCREW
9541119930	95411-19930	Hose(For Carburetor To Manifold)

OEM	Part name	Category
17630-15030	Valve Assy, Air Control	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
17810-15020	Filter Assy, Air	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
17810-16010	Filter Assy, Air	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
25706-16121	Pipe Sub-Assy, Vacuum Transmitting, No.1	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
25706-16141	Pipe Sub-Assy, Vacuum Transmitting, No.1	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
25730-16040	Valve Assy, Electric Bleed Air Control	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
25730-16110	Valve Assy, Electric Bleed Air Control	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
25860-01030	Valve Assy, Vacuum Switching, No.1	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
25860-01040	Valve Assy, Vacuum Switching, No.1	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
25861-01010	Bracket, Vacuum Switching Valve	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
25861-01020	Bracket, Vacuum Switching Valve	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
82711-12200	Clamp (For Fuel Lid Lock Control Cable)	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
89570-12301	Valve Assy, Vacuum Switching	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90080-11228	New Genuine Part	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90080-91020	Valve, Vacuum Switching, No.1	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90096-80002	Ring, O, No.1(For Electric Bleed Air Control Valve)	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90099-06032	Ring, O, No.2(For Electric Bleed Air Control Valve)	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90119-06053	New Genuine Part	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90339-03002	PLUG	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90413-04005	Way, 3, No.1 (For Front Drive Shift)	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90414-04006	New Genuine Part	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90445-11040	Hose, No.1(For Idle-Up)	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90445-14075	Hose, No.1(For Air Pipe)	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90447-04025	New Genuine Part	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90447-04026	New Genuine Part	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90447-04059	New Genuine Part	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90447-04066	New Genuine Part	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90447-04076	New Genuine Part	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90447-04104	New Genuine Part	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90447-05007	New Genuine Part	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90447-05008	New Genuine Part	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90464-00329	Clamp (For Fuel Lid Lock Control Cable)	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90467-12001	Clip(For Carburetor Fuel Hose)	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90467-13010	Clip(For Ventilation Hose No.2)	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90910-12007	Valve Assy, Vacuum Switching	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90917-10049	Valve, Check, No.1	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90917-11023	Filter, Gas, No.1	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90925-01014	Valve, Vacuum Transmitting, No.1	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90925-02076	Valve, Thermostatic Vacuum Switching, No.1	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90925-04012	Jet, No.1	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90925-04034	Jet, No.1	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
90999-92002	Air Hose (300 mm)	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
91651-40614	Bolt	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
91651-40814	BOLT	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
93319-14010	SCREW	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
93319-15010	SCREW	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
95411-19930	Hose(For Carburetor To Manifold)	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
96132-51100	Clip (For Hose)	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
96132-51300	Clip(For Ventilation Hose No.2)	Vacuum Piping ([02.1987 - ] CALIFORNIA SPEC (8702- )4ALC)
