Search › Model › AE82

AE82

Toyota COROLLA · 1983 · 3,952 parts · 162 categories

3,952 items

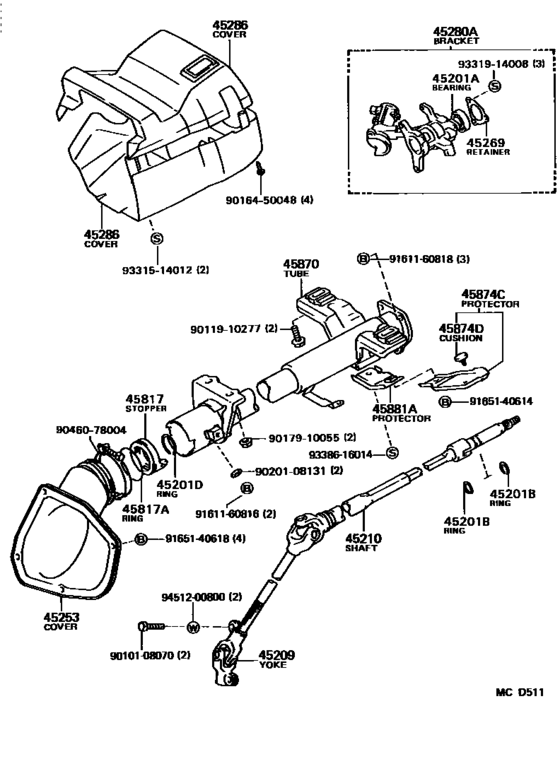

Steering Column & Shaft ([09.1986 - ] (8609- )D,Q) 45

#	OEM	Part name
45201	90363-18038	Bearing(For Steering Main Shaft)
45201	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45201	90520-17196	Ring, Shaft Snap(For Steering Main Shaft)
45201	96152-00300	Ring, Hole Snap (For Differential Side Gear Shaft)
45209	45209-32010	Yoke Sub-Assy, Steering Sliding
45209	45209-10020	Yoke Sub-Assy, Steering Sliding
45209	45209-32020	Yoke Sub-Assy, Steering Sliding
45209	45209-16010	Yoke Sub-Assy, Steering Sliding
45210	45210-12210	Shaft Sub-Assy, Steering Main
45210	45210-12230	Shaft Sub-Assy, Steering Main
45253	45025-12160	Cover, Steering Column Hole
45269	45269-10010	Retainer, Main Shaft Bearing
45280	45280-12050	Bracket, Steering Column, Upper
45280	45280-12052	Bracket, Steering Column, Upper
45286	45286-01020-J9	Cover, Steering Column
45286	45286-01020-P8	Cover, Steering Column
45286	45287-01010-J9	Cover, Steering Column
45286	45287-01010-P8	Cover, Steering Column
45817	45808-20020	Stopper, Steering Shaft Thrust
45817	45808-20030	Stopper Sub-Assy, Steering Shaft Thrust
45817	90301-54002	Ring, O(For Input Front)
45870	45870-12190	Tube Sub-Assy, Steering Column
45874	45802-02010	Protector, Steering Column, No.1
45874	45802-12011	Protector, Steering Column, No.1
45874	90081-54001	Cushion(For Steering Column Protector)
45874	90541-06008	Cushion, No.1(For Clutch Pedal)
45881	45881-02010	Protector, Steering Column, No.2
45881	45881-12020	Protector, Steering Column, No.2
9010108070	90101-08070	Bolt, Hexagon
9010108070	90119-08560	Bolt, Hexagon
9011910277	90119-10277	New Genuine Part
9016450048	90164-50048	SCREW
9017910055	90179-10055	NUT
9020108131	90201-08131	WASHER
9046078004	90460-78004	New Genuine Part
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161160818	91611-60818	Bolt(For Oil Receiver Pipe)
9161160818	90119-08830	Bolt(For Oil Receiver Pipe)
9165140614	91651-40614	Bolt
9165140618	91651-40618	New Genuine Part
9331514012	93315-14012	Screw with washer
9331914008	93319-14008	SCREW
9338616014	93386-16014	New Genuine Part
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
45025-12160	Cover, Steering Column Hole	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45209-10020	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45209-16010	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45209-32010	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45209-32020	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45210-12210	Shaft Sub-Assy, Steering Main	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45210-12230	Shaft Sub-Assy, Steering Main	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45269-10010	Retainer, Main Shaft Bearing	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45280-12050	Bracket, Steering Column, Upper	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45280-12052	Bracket, Steering Column, Upper	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45286-01020-J9	Cover, Steering Column	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45286-01020-P8	Cover, Steering Column	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45287-01010-J9	Cover, Steering Column	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45287-01010-P8	Cover, Steering Column	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45802-02010	Protector, Steering Column, No.1	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45802-12011	Protector, Steering Column, No.1	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45808-20020	Stopper, Steering Shaft Thrust	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45808-20030	Stopper Sub-Assy, Steering Shaft Thrust	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45870-12190	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45881-02010	Protector, Steering Column, No.2	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
45881-12020	Protector, Steering Column, No.2	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
90081-54001	Cushion(For Steering Column Protector)	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
90101-08070	Bolt, Hexagon	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
90119-08830	Bolt(For Oil Receiver Pipe)	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
90119-10277	New Genuine Part	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
90164-50048	SCREW	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
90179-10055	NUT	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
90201-08131	WASHER	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
90301-54002	Ring, O(For Input Front)	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
90363-18038	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
90460-78004	New Genuine Part	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
90520-17196	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
90541-06008	Cushion, No.1(For Clutch Pedal)	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
91611-60818	Bolt(For Oil Receiver Pipe)	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
91611-B0816	Bolt	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
91651-40614	Bolt	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
91651-40618	New Genuine Part	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
93315-14012	Screw with washer	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
93319-14008	SCREW	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
93386-16014	New Genuine Part	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
96152-00300	Ring, Hole Snap (For Differential Side Gear Shaft)	Steering Column & Shaft ([09.1986 - ] (8609- )D,Q)
