Search › Model › AE82
AE82

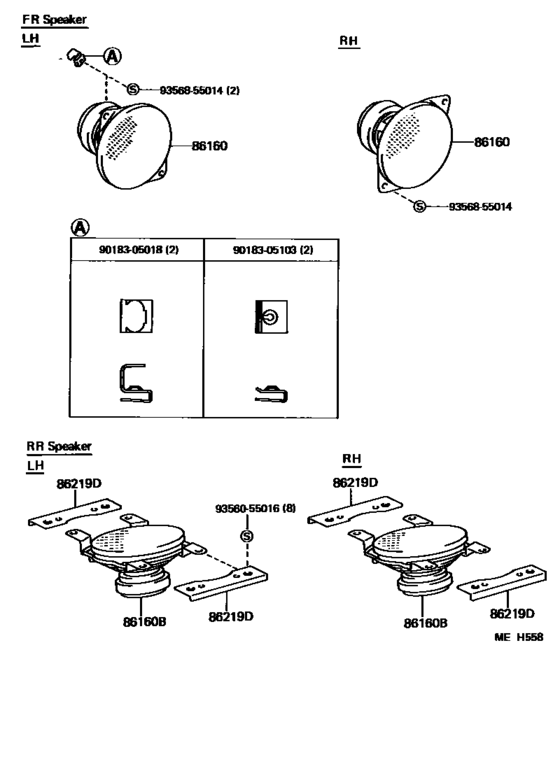

Speaker ([09.1986 - ] (8609- )) 8
| # | OEM | Part name |
|---|---|---|
| 86160 | 86160-12170 | Speaker Assy, Front No.1 |
| 86160 | 86160-12190 | Speaker Assy, Rear |
| 86160 | 86160-12200 | Speaker Assy, Rear |
| 86219 | 86219-12070 | Bracket, Speaker, Rear No.1 |
| 9018305018 | 90183-05018 | Clip, Instrument Panel Finish, Lower Center |
| 9018305103 | 90183-05103 | NUT |
| 9356055016 | 93560-55016 | Screw(For Mat Set Plate) |
| 9356855014 | 93568-55014 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 86160-12170 | Speaker Assy, Front No.1 | Speaker ([09.1986 - ] (8609- )) |
| 86160-12190 | Speaker Assy, Rear | Speaker ([09.1986 - ] (8609- )) |
| 86160-12200 | Speaker Assy, Rear | Speaker ([09.1986 - ] (8609- )) |
| 86219-12070 | Bracket, Speaker, Rear No.1 | Speaker ([09.1986 - ] (8609- )) |
| 90183-05018 | Clip, Instrument Panel Finish, Lower Center | Speaker ([09.1986 - ] (8609- )) |
| 90183-05103 | NUT | Speaker ([09.1986 - ] (8609- )) |
| 93560-55016 | Screw(For Mat Set Plate) | Speaker ([09.1986 - ] (8609- )) |
| 93568-55014 | Screw | Speaker ([09.1986 - ] (8609- )) |
