Search › Model › AE82
AE82

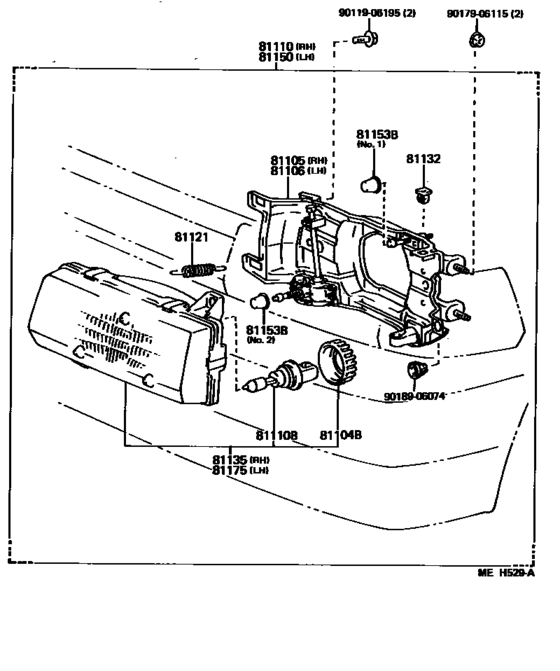

Headlamp ([09.1986 - ] (8609- )) 16
| # | OEM | Part name |
|---|---|---|
| 81104 | 81104-22520 | Locking Cap, Headlamp |
| 81105 | 81101-02010 | Housing Sub-Assy, Headlamp, Rh |
| 81106 | 81102-02010 | Housing Sub-Assy, Headlamp, Lh |
| 81110 | 81110-02010 | Headlamp Assy, Rh |
| 81110 | 90981-13032 | Bulb(For Headlamp, No.1) |
| 81121 | 81121-22520 | Spring, Headlamp Tension |
| 81132 | 81137-22530 | Nut, Headlamp Self Locking |
| 81132 | 90075-10004 | Nut, Headlamp Self Locking |
| 81135 | 81130-02010 | Unit Assy, Headlamp, Rh |
| 81150 | 81150-02010 | Headlamp Assy, Lh |
| 81153 | 81127-1A191 | Bearing, Headlamp |
| 81153 | 81127-32200 | Bearing, Headlamp |
| 81175 | 81170-02010 | Unit Assy, Headlamp, Lh |
| 9011906195 | 90119-06195 | New Genuine Part |
| 9017906115 | 90179-06115 | Nut (For Rear Wiper Arm Setting) |
| 9018906074 | 90189-06074 | GROMMET |
| OEM | Part name | Category |
|---|---|---|
| 81101-02010 | Housing Sub-Assy, Headlamp, Rh | Headlamp ([09.1986 - ] (8609- )) |
| 81102-02010 | Housing Sub-Assy, Headlamp, Lh | Headlamp ([09.1986 - ] (8609- )) |
| 81104-22520 | Locking Cap, Headlamp | Headlamp ([09.1986 - ] (8609- )) |
| 81110-02010 | Headlamp Assy, Rh | Headlamp ([09.1986 - ] (8609- )) |
| 81121-22520 | Spring, Headlamp Tension | Headlamp ([09.1986 - ] (8609- )) |
| 81127-1A191 | Bearing, Headlamp | Headlamp ([09.1986 - ] (8609- )) |
| 81127-32200 | Bearing, Headlamp | Headlamp ([09.1986 - ] (8609- )) |
| 81130-02010 | Unit Assy, Headlamp, Rh | Headlamp ([09.1986 - ] (8609- )) |
| 81137-22530 | Nut, Headlamp Self Locking | Headlamp ([09.1986 - ] (8609- )) |
| 81150-02010 | Headlamp Assy, Lh | Headlamp ([09.1986 - ] (8609- )) |
| 81170-02010 | Unit Assy, Headlamp, Lh | Headlamp ([09.1986 - ] (8609- )) |
| 90075-10004 | Nut, Headlamp Self Locking | Headlamp ([09.1986 - ] (8609- )) |
| 90119-06195 | New Genuine Part | Headlamp ([09.1986 - ] (8609- )) |
| 90179-06115 | Nut (For Rear Wiper Arm Setting) | Headlamp ([09.1986 - ] (8609- )) |
| 90189-06074 | GROMMET | Headlamp ([09.1986 - ] (8609- )) |
| 90981-13032 | Bulb(For Headlamp, No.1) | Headlamp ([09.1986 - ] (8609- )) |
