Search › Model › AE82

AE82

Toyota COROLLA · 1983 · 3,952 parts · 162 categories

3,952 items

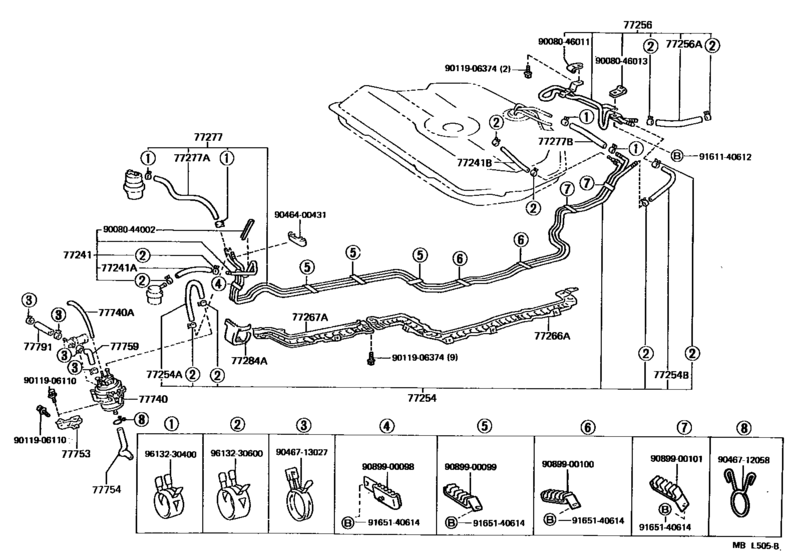

Fuel Tank & Tube ([02.1987 - ] (8702- )D) 47

#	OEM	Part name
77241	77205-01010	Tube, Fuel Main, No.1
77241	77259-12080	Hose, Fuel, No.1 (For Main Tube, No.1)
77241	77259-16040	Hose, Fuel(For Fuel Evaporative Separator)
77241	95337-06020	Hose, Differential Pressure Control
77254	77019-01010	Tube, Fuel Emission, No.1
77254	95333-06030	Hose, Fuel
77254	95338-06030	HOSE, FUEL
77254	95332-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)
77254	95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)
77256	77263-02010	Tube, Fuel Emission, No.3
77266	77266-01010	Protector, Fuel Tube, No.1
77267	77267-01010	Protector, Fuel Tube, No.2
77277	77207-01010	Tube, Fuel Return, No.1
77277	23271-16060	Hose, Fuel, No.1(For Return Tube, No.1)
77277	95333-04020	Hose, Lpg Injector
77284	77284-12010	Protector, Fuel Tube, No.3
77740	77740-12341	Canister Assy, Charcoal
77740	90999-92002	Air Hose (300 mm)
77740	95411-19930	Hose(For Carburetor To Manifold)
77753	77753-12010	Bracket, Charcoal Canister Base
77754	77754-12040	Hose, Charcoal Canister Outlet, No.1
77759	77759-20011	Hose, Charcoal Canister
77791	90447-14012	Hose, Outer Vent Valve To Carburetor
9008044002	90080-44002	New Genuine Part
9008046011	90080-46011	New Genuine Part
9008046011	90461-06175	New Genuine Part
9008046013	90080-46013	Clamp, Brake Tube, No.3
9008046013	90461-06957	Clamp, Brake Tube, No.3
9011906110	90119-06110	New Genuine Part
9011906110	90119-06442	BOLT WWASHER
9011906374	90119-06374	BOLT
9011906374	91653-A0614	BOLT WWASHER
9046400431	90464-00431	New Genuine Part
9046712058	90467-12058	Clamp Or Clip(For Radiator Reserve Tank Hose)
9046713027	90467-13027	Clamp Or Clip(For Water By-Pass Hose No.2)
9046713027	96132-51300	Clip(For Ventilation Hose No.2)
9089900098	90899-00098	New Genuine Part
9089900099	90899-00099	New Genuine Part
9089900100	90899-00100	New Genuine Part
9089900101	90899-00101	New Genuine Part
9161140612	91611-40612	Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9161140612	91611-G0612	Bolt
9165140614	91651-40614	Bolt
9613230400	96132-30400	Clip Or Clamp(For Ventilation Hose)
9613230400	96132-51000	Clip Or Clamp(For Ventilation Hose)
9613230600	96132-30600	Clip(For Actuator Hose)
9613230600	96132-51100	Clip (For Hose)

OEM	Part name	Category
23271-16060	Hose, Fuel, No.1(For Return Tube, No.1)	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
77019-01010	Tube, Fuel Emission, No.1	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
77205-01010	Tube, Fuel Main, No.1	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
77207-01010	Tube, Fuel Return, No.1	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
77259-12080	Hose, Fuel, No.1 (For Main Tube, No.1)	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
77259-16040	Hose, Fuel(For Fuel Evaporative Separator)	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
77263-02010	Tube, Fuel Emission, No.3	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
77266-01010	Protector, Fuel Tube, No.1	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
77267-01010	Protector, Fuel Tube, No.2	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
77284-12010	Protector, Fuel Tube, No.3	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
77740-12341	Canister Assy, Charcoal	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
77753-12010	Bracket, Charcoal Canister Base	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
77754-12040	Hose, Charcoal Canister Outlet, No.1	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
77759-20011	Hose, Charcoal Canister	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
90080-44002	New Genuine Part	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
90080-46011	New Genuine Part	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
90080-46013	Clamp, Brake Tube, No.3	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
90119-06110	New Genuine Part	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
90119-06374	BOLT	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
90119-06442	BOLT WWASHER	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
90447-14012	Hose, Outer Vent Valve To Carburetor	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
90461-06175	New Genuine Part	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
90461-06957	Clamp, Brake Tube, No.3	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
90464-00431	New Genuine Part	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
90467-12058	Clamp Or Clip(For Radiator Reserve Tank Hose)	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
90467-13027	Clamp Or Clip(For Water By-Pass Hose No.2)	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
90899-00098	New Genuine Part	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
90899-00099	New Genuine Part	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
90899-00100	New Genuine Part	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
90899-00101	New Genuine Part	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
90999-92002	Air Hose (300 mm)	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
91611-40612	Bolt(for Dust Cover To Steering Knuckle Arm Setting)	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
91611-G0612	Bolt	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
91651-40614	Bolt	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
91653-A0614	BOLT WWASHER	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
95332-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
95333-04020	Hose, Lpg Injector	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
95333-06030	Hose, Fuel	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
95337-06020	Hose, Differential Pressure Control	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
95338-06030	HOSE, FUEL	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
95411-19930	Hose(For Carburetor To Manifold)	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
96132-30400	Clip Or Clamp(For Ventilation Hose)	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
96132-30600	Clip(For Actuator Hose)	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
96132-51300	Clip(For Ventilation Hose No.2)	Fuel Tank & Tube ([02.1987 - ] (8702- )D)
