Search › Model › AE82
AE82

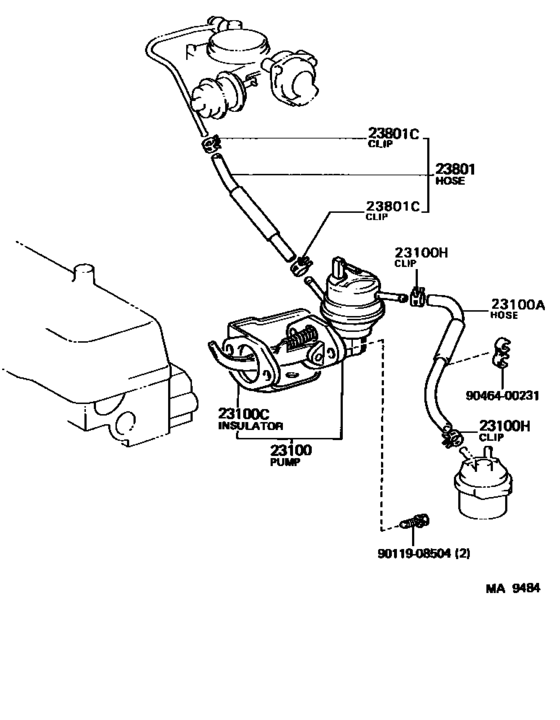

Fuel Pump & Pipe ([02.1987 - ] (8702- )4ALC) 9
| # | OEM | Part name |
|---|---|---|
| 23100 | 23100-19225 | Pump Assy, Fuel |
| 23100 | 23271-15070 | Hose, Fuel |
| 23100 | 23915-15011 | Insulator, Fuel Pump |
| 23100 | 96132-30600 | Clip(For Actuator Hose) |
| 23100 | 96132-51100 | Clip (For Hose) |
| 23801 | 23271-15010 | Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1 |
| 9011908504 | 90119-08504 | Bolt(For Clutch Release Cylinder Setting) |
| 9011908504 | 91611-60830 | Bolt(For Clutch Release Cylinder Setting) |
| 9046400231 | 90464-00231 | Clamp, Fuel Pipe(Hose), No.1 |
| OEM | Part name | Category |
|---|---|---|
| 23100-19225 | Pump Assy, Fuel | Fuel Pump & Pipe ([02.1987 - ] (8702- )4ALC) |
| 23271-15010 | Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1 | Fuel Pump & Pipe ([02.1987 - ] (8702- )4ALC) |
| 23271-15070 | Hose, Fuel | Fuel Pump & Pipe ([02.1987 - ] (8702- )4ALC) |
| 23915-15011 | Insulator, Fuel Pump | Fuel Pump & Pipe ([02.1987 - ] (8702- )4ALC) |
| 90119-08504 | Bolt(For Clutch Release Cylinder Setting) | Fuel Pump & Pipe ([02.1987 - ] (8702- )4ALC) |
| 90464-00231 | Clamp, Fuel Pipe(Hose), No.1 | Fuel Pump & Pipe ([02.1987 - ] (8702- )4ALC) |
| 91611-60830 | Bolt(For Clutch Release Cylinder Setting) | Fuel Pump & Pipe ([02.1987 - ] (8702- )4ALC) |
| 96132-30600 | Clip(For Actuator Hose) | Fuel Pump & Pipe ([02.1987 - ] (8702- )4ALC) |
| 96132-51100 | Clip (For Hose) | Fuel Pump & Pipe ([02.1987 - ] (8702- )4ALC) |
