Search › Model › AE82

AE82

Toyota COROLLA · 1983 · 3,952 parts · 162 categories

3,952 items

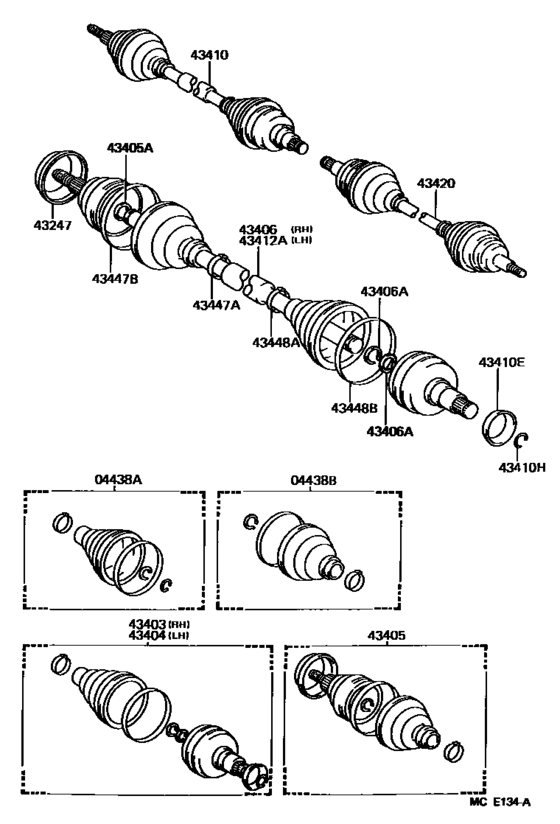

Front Drive Shaft ([02.1987 - ] (8702- )D) 23

#	OEM	Part name
4438	04438-01010	Boot Kit, Front Drive Shaft Inboard Joint
4438	04438-01020	Boot Kit, Front Drive Shaft Outboard Joint
43247	43247-01010	Deflector, Front Wheel Bearing Dust, No.2
43247	43247-02030	Deflector, Front Wheel Bearing Dust, Rh No.2
43403	43047-09010	Joint Set, Front Axle Inboard, Rh
43403	43047-09020	Joint Sub-Assy, Front Axle Inboard, Rh
43404	43048-09010	Joint Set, Front Axle Inboard, Lh
43404	43048-09020	Joint Sub-Assy, Front Axle Inboard, Lh
43405	43405-09010	Shaft Sub-Assy, Front Axle Outer
43405	90080-52004	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
43406	43406-01010	Shaft Sub-Assy, Front Axle Pipe
43406	90080-52005	Ring,shaft Snap (For Front Axle Pipe Shaft)
43410	43410-01010	Shaft Assy, Front Drive, Rh
43410	43410-01030	Shaft Assy, Front Drive, Rh
43410	41336-01010	Cover, Front Drive Shaft Dust, Rh
43410	90080-52003	Ring, Hole Snap (For Front Drive Shaft)
43412	43412-01010	Shaft, Front Axle, Lh
43420	43420-01010	Shaft Assy, Front Drive, Lh
43420	43420-01030	Shaft Assy, Front Drive, Lh
43447	90080-46032	Clamp, No.1 (For Front Axle Outboard Joint Boot Setting)
43447	90080-46051	Clamp, No.1 (For Front Axle Outboard Joint Boot Setting)
43447	90080-46031	Clamp, No.2 (For Front Axle Outboard Joint Boot Setting)
43447	90080-46049	Clamp, No.2 (For Front Axle Outboard Joint Boot Setting)

OEM	Part name	Category
04438-01010	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([02.1987 - ] (8702- )D)
04438-01020	Boot Kit, Front Drive Shaft Outboard Joint	Front Drive Shaft ([02.1987 - ] (8702- )D)
41336-01010	Cover, Front Drive Shaft Dust, Rh	Front Drive Shaft ([02.1987 - ] (8702- )D)
43047-09010	Joint Set, Front Axle Inboard, Rh	Front Drive Shaft ([02.1987 - ] (8702- )D)
43047-09020	Joint Sub-Assy, Front Axle Inboard, Rh	Front Drive Shaft ([02.1987 - ] (8702- )D)
43048-09010	Joint Set, Front Axle Inboard, Lh	Front Drive Shaft ([02.1987 - ] (8702- )D)
43048-09020	Joint Sub-Assy, Front Axle Inboard, Lh	Front Drive Shaft ([02.1987 - ] (8702- )D)
43247-01010	Deflector, Front Wheel Bearing Dust, No.2	Front Drive Shaft ([02.1987 - ] (8702- )D)
43247-02030	Deflector, Front Wheel Bearing Dust, Rh No.2	Front Drive Shaft ([02.1987 - ] (8702- )D)
43405-09010	Shaft Sub-Assy, Front Axle Outer	Front Drive Shaft ([02.1987 - ] (8702- )D)
43406-01010	Shaft Sub-Assy, Front Axle Pipe	Front Drive Shaft ([02.1987 - ] (8702- )D)
43410-01010	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([02.1987 - ] (8702- )D)
43410-01030	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([02.1987 - ] (8702- )D)
43412-01010	Shaft, Front Axle, Lh	Front Drive Shaft ([02.1987 - ] (8702- )D)
43420-01010	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([02.1987 - ] (8702- )D)
43420-01030	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([02.1987 - ] (8702- )D)
90080-46031	Clamp, No.2 (For Front Axle Outboard Joint Boot Setting)	Front Drive Shaft ([02.1987 - ] (8702- )D)
90080-46032	Clamp, No.1 (For Front Axle Outboard Joint Boot Setting)	Front Drive Shaft ([02.1987 - ] (8702- )D)
90080-46049	Clamp, No.2 (For Front Axle Outboard Joint Boot Setting)	Front Drive Shaft ([02.1987 - ] (8702- )D)
90080-46051	Clamp, No.1 (For Front Axle Outboard Joint Boot Setting)	Front Drive Shaft ([02.1987 - ] (8702- )D)
90080-52003	Ring, Hole Snap (For Front Drive Shaft)	Front Drive Shaft ([02.1987 - ] (8702- )D)
90080-52004	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)	Front Drive Shaft ([02.1987 - ] (8702- )D)
90080-52005	Ring,shaft Snap (For Front Axle Pipe Shaft)	Front Drive Shaft ([02.1987 - ] (8702- )D)
