Search › Model › AE82

AE82

Toyota COROLLA · 1983 · 3,952 parts · 162 categories

3,952 items

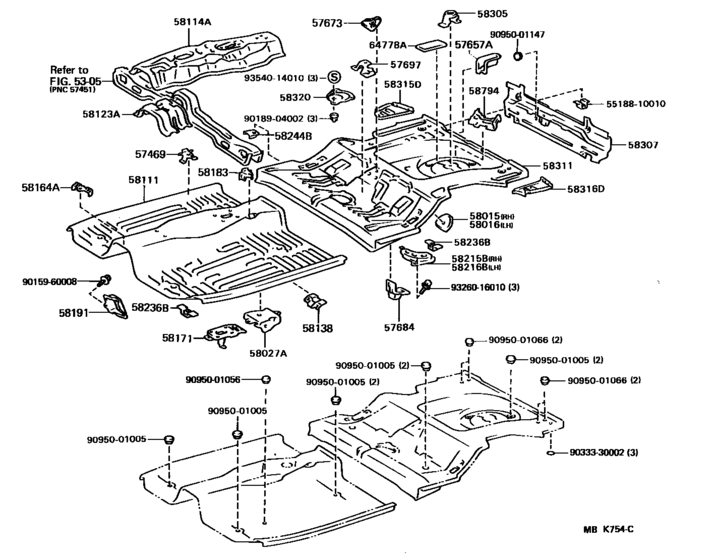

Floor Pan & Lower Back Panel ([09.1986 - ] (8609- )) 44

#	OEM	Part name
57469	57468-12010	Bracket, Front Seat, Outside
57469	57469-12010	Bracket, Front Seat, Outside
57657	57657-16010	Bracket, Exhaust Pipe Mounting, No.2
57673	57607-12020	Bracket, Rear Seat Back Hinge Mounting
57684	57686-16011	Bracket, Fuel Tank, Rear
57684	57687-16011	Bracket, Fuel Tank, Rear
57697	57697-16010	Retainer, Rear Seat Cushion
58015	58015-12010	Reinforcement, Belt Anchor To Floor Pan, Rh
58027	58027-12020	Reinforce Sub-Assy, Seat Belt Anchor
58111	58111-01011	Pan, Front Floor
58114	58114-12020	Reinforcement, Front Floor Panel
58123	58013-12010	Support, Shift & Select Lever
58138	58134-12010	Bracket, Front Floor Heat Insulator, No.4
58164	58164-12020	Retainer, Console Box Mounting
58171	58107-12010	Reinforcement, Parking Brake Base
58183	58183-12060	Bracket, Front Seat Mounting, Inner
58183	58184-12080	Bracket, Front Seat Mounting, Inner
58215	58215-16010	Bracket, Rear Seat Mounting, Rh
58216	58216-16010	Bracket, Rear Seat Mounting, Lh
58236	58236-14010	Bracket, Mounting, Floor, No.1
58244	58244-16030	Bracket, Rear Seat Cushion Mounting
58305	58305-10011	Bracket Sub-Assy, Spare Wheel Clamp
58307	58307-02010	Panel Sub-Assy, Body Lower Back
58311	58311-16050	Pan, Rear Floor
58315	58315-12020	Extension, Rear Floor Pan, Rh
58316	58316-12020	Extension, Rear Floor Pan, Lh
58320	58325-16020	Cover, Rear Floor Service Hole
58794	58791-12090	Carrier, Jack
64778	64759-16030	Protector, Spare Wheel
64778	64778-12020	Protector, Spare Wheel
5518810010	55188-10010	Bracket, Under Tray Support
9015960008	90159-60008	SCREW
9018904002	90189-04002	GROMMET
9033330002	90333-30002	Cover, Front Floor Hole
9095001005	90950-01005	PLUGHOLE
9095001005	90950-01867	PLUG HOLE
9095001056	90950-01056	Plug, Hole(For Floor Panel)
9095001056	90950-01826	Plug, Hole(For Floor Panel)
9095001066	90950-01066	New Genuine Part
9095001147	90950-01147	Plug, Hole(For Luggage Compartment Door Panel)
9095001147	90950-01864	Plug, Hole(For Luggage Compartment Door Panel)
9326016010	93260-16010	New Genuine Part
9326016010	93260-56010	SCREW
9354014010	93540-14010	Clip, Headlining Retainer

OEM	Part name	Category
55188-10010	Bracket, Under Tray Support	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
57468-12010	Bracket, Front Seat, Outside	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
57469-12010	Bracket, Front Seat, Outside	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
57607-12020	Bracket, Rear Seat Back Hinge Mounting	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
57657-16010	Bracket, Exhaust Pipe Mounting, No.2	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
57686-16011	Bracket, Fuel Tank, Rear	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
57687-16011	Bracket, Fuel Tank, Rear	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
57697-16010	Retainer, Rear Seat Cushion	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58013-12010	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58015-12010	Reinforcement, Belt Anchor To Floor Pan, Rh	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58027-12020	Reinforce Sub-Assy, Seat Belt Anchor	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58107-12010	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58111-01011	Pan, Front Floor	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58114-12020	Reinforcement, Front Floor Panel	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58134-12010	Bracket, Front Floor Heat Insulator, No.4	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58164-12020	Retainer, Console Box Mounting	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58183-12060	Bracket, Front Seat Mounting, Inner	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58184-12080	Bracket, Front Seat Mounting, Inner	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58215-16010	Bracket, Rear Seat Mounting, Rh	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58216-16010	Bracket, Rear Seat Mounting, Lh	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58236-14010	Bracket, Mounting, Floor, No.1	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58244-16030	Bracket, Rear Seat Cushion Mounting	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58305-10011	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58307-02010	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58311-16050	Pan, Rear Floor	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58315-12020	Extension, Rear Floor Pan, Rh	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58316-12020	Extension, Rear Floor Pan, Lh	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58325-16020	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
58791-12090	Carrier, Jack	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
64759-16030	Protector, Spare Wheel	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
64778-12020	Protector, Spare Wheel	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
90159-60008	SCREW	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
90189-04002	GROMMET	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
90333-30002	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
90950-01005	PLUGHOLE	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
90950-01056	Plug, Hole(For Floor Panel)	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
90950-01066	New Genuine Part	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
90950-01147	Plug, Hole(For Luggage Compartment Door Panel)	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
90950-01826	Plug, Hole(For Floor Panel)	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
90950-01864	Plug, Hole(For Luggage Compartment Door Panel)	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
90950-01867	PLUG HOLE	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
93260-16010	New Genuine Part	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
93260-56010	SCREW	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
93540-14010	Clip, Headlining Retainer	Floor Pan & Lower Back Panel ([09.1986 - ] (8609- ))
