Search › Model › AE82
AE82

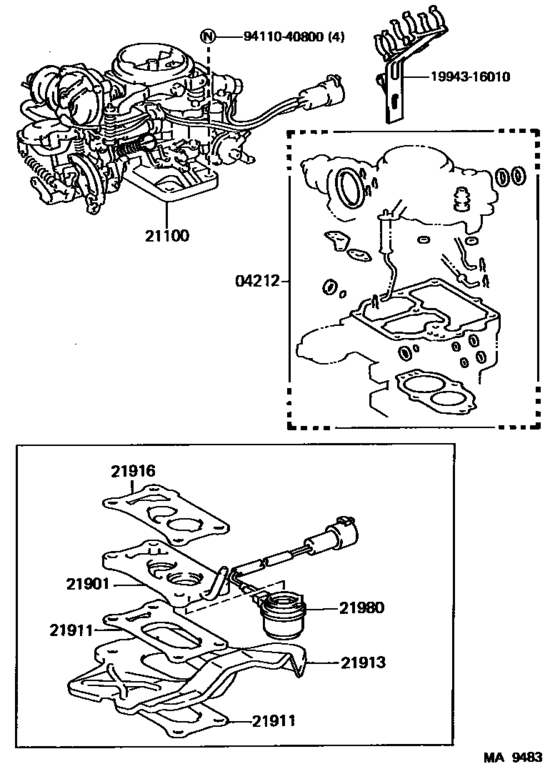

Carburetor Assembly ([02.1987 - ] (8702- )4ALC) 11
| # | OEM | Part name |
|---|---|---|
| 4212 | 04212-16020 | Gasket Kit, Carburetor |
| 21100 | 21100-16210 | Carburetor Assy |
| 21901 | 21901-15030 | Insulator Sub-Assy, Carburetor Heat, No.1 |
| 21911 | 21916-15030 | Gasket, Carburetor |
| 21911 | 21916-15031 | Gasket, Carburetor |
| 21913 | 21913-15030 | Insulator, Carburetor Heat, No.2 |
| 21916 | 21911-15030 | Gasket, Carburetor, No.2 - CARBURETER, NO.2 |
| 21980 | 21980-15020 | Heater Assy, Cold Mixture |
| 1994316010 | 19943-16010 | Plate, Resistive Cord Clamp Support No.1 |
| 9411040800 | 94110-40800 | Nut(For Steering Damper) |
| 9411040800 | 94130-00802 | Nut, No.1 (For Center Support Bearing) |
| OEM | Part name | Category |
|---|---|---|
| 04212-16020 | Gasket Kit, Carburetor | Carburetor Assembly ([02.1987 - ] (8702- )4ALC) |
| 19943-16010 | Plate, Resistive Cord Clamp Support No.1 | Carburetor Assembly ([02.1987 - ] (8702- )4ALC) |
| 21100-16210 | Carburetor Assy | Carburetor Assembly ([02.1987 - ] (8702- )4ALC) |
| 21901-15030 | Insulator Sub-Assy, Carburetor Heat, No.1 | Carburetor Assembly ([02.1987 - ] (8702- )4ALC) |
| 21911-15030 | Gasket, Carburetor, No.2 - CARBURETER, NO.2 | Carburetor Assembly ([02.1987 - ] (8702- )4ALC) |
| 21913-15030 | Insulator, Carburetor Heat, No.2 | Carburetor Assembly ([02.1987 - ] (8702- )4ALC) |
| 21916-15030 | Gasket, Carburetor | Carburetor Assembly ([02.1987 - ] (8702- )4ALC) |
| 21916-15031 | Gasket, Carburetor | Carburetor Assembly ([02.1987 - ] (8702- )4ALC) |
| 21980-15020 | Heater Assy, Cold Mixture | Carburetor Assembly ([02.1987 - ] (8702- )4ALC) |
| 94110-40800 | Nut(For Steering Damper) | Carburetor Assembly ([02.1987 - ] (8702- )4ALC) |
| 94130-00802 | Nut, No.1 (For Center Support Bearing) | Carburetor Assembly ([02.1987 - ] (8702- )4ALC) |
