AE82

Toyota COROLLA · 1983 · 3,952 parts · 162 categories

← Back to categories

3,952 items

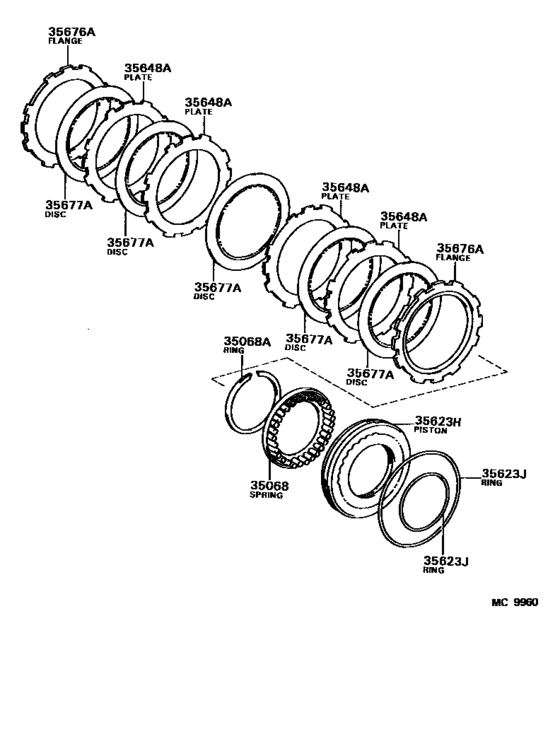

Brake No.3, 1St & Reverse Brake (Atm) ([09.1986 - ] (8609- )ATM) 10

#	OEM	Part name
35068	35068-32010	Spring Sub-Assy, 1St & Reverse Brake Return
35068	35068-20010	Spring Sub-Assy, 1St & Reverse Brake Return
35068	90520-90001	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)
35623	35623-32020	Piston, 1St & Reverse Brake
35623	90301-94001	Ring, O (For 1St & Reverse Brake)
35623	90301-99022	Ring, O (For Overdrive Brake Piston)
35648	35648-32020	Plate, Clutch (For 1St & Reverse Brake)
35676	35676-32010	Flange, Brake (For 2Nd Brake)
35676	35676-12030	Flange, Brake (For 2Nd Brake)
35677	35677-32040	Disc, Clutch (For 2Nd Brake)

OEM	Part name	Category
35068-20010	Spring Sub-Assy, 1St & Reverse Brake Return	Brake No.3, 1St & Reverse Brake (Atm) ([09.1986 - ] (8609- )ATM)
35068-32010	Spring Sub-Assy, 1St & Reverse Brake Return	Brake No.3, 1St & Reverse Brake (Atm) ([09.1986 - ] (8609- )ATM)
35623-32020	Piston, 1St & Reverse Brake	Brake No.3, 1St & Reverse Brake (Atm) ([09.1986 - ] (8609- )ATM)
35648-32020	Plate, Clutch (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([09.1986 - ] (8609- )ATM)
35676-12030	Flange, Brake (For 2Nd Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([09.1986 - ] (8609- )ATM)
35676-32010	Flange, Brake (For 2Nd Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([09.1986 - ] (8609- )ATM)
35677-32040	Disc, Clutch (For 2Nd Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([09.1986 - ] (8609- )ATM)
90301-94001	Ring, O (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([09.1986 - ] (8609- )ATM)
90301-99022	Ring, O (For Overdrive Brake Piston)	Brake No.3, 1St & Reverse Brake (Atm) ([09.1986 - ] (8609- )ATM)
90520-90001	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)	Brake No.3, 1St & Reverse Brake (Atm) ([09.1986 - ] (8609- )ATM)
