Search › Model › AE81
AE81

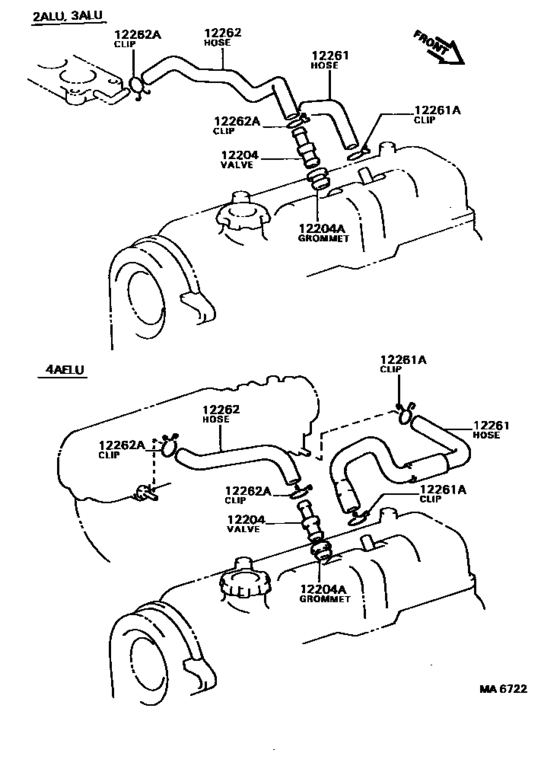

Ventilation Hose ([05.1983 - ] (8305- )2ALU,3ALU,4AELU) 7
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-15030 | Valve Sub-Assy, Ventilation |
| 12204 | 90480-18001 | Grommet(For Ventilation System) |
| 12261 | 12261-15020 | Hose, Ventilation |
| 12261 | 12261-15060 | Hose, Ventilation |
| 12261 | 90467-16010 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-15060 | Hose, Ventilation, No.2 |
| 12262 | 90467-13103 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 12204-15030 | Valve Sub-Assy, Ventilation | Ventilation Hose ([05.1983 - ] (8305- )2ALU,3ALU,4AELU) |
| 12261-15020 | Hose, Ventilation | Ventilation Hose ([05.1983 - ] (8305- )2ALU,3ALU,4AELU) |
| 12261-15060 | Hose, Ventilation | Ventilation Hose ([05.1983 - ] (8305- )2ALU,3ALU,4AELU) |
| 12262-15060 | Hose, Ventilation, No.2 | Ventilation Hose ([05.1983 - ] (8305- )2ALU,3ALU,4AELU) |
| 90467-13103 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([05.1983 - ] (8305- )2ALU,3ALU,4AELU) |
| 90467-16010 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([05.1983 - ] (8305- )2ALU,3ALU,4AELU) |
| 90480-18001 | Grommet(For Ventilation System) | Ventilation Hose ([05.1983 - ] (8305- )2ALU,3ALU,4AELU) |
