Search › Model › AE81

AE81

Toyota COROLLA · 1983 · 4,956 parts · 178 categories

4,956 items

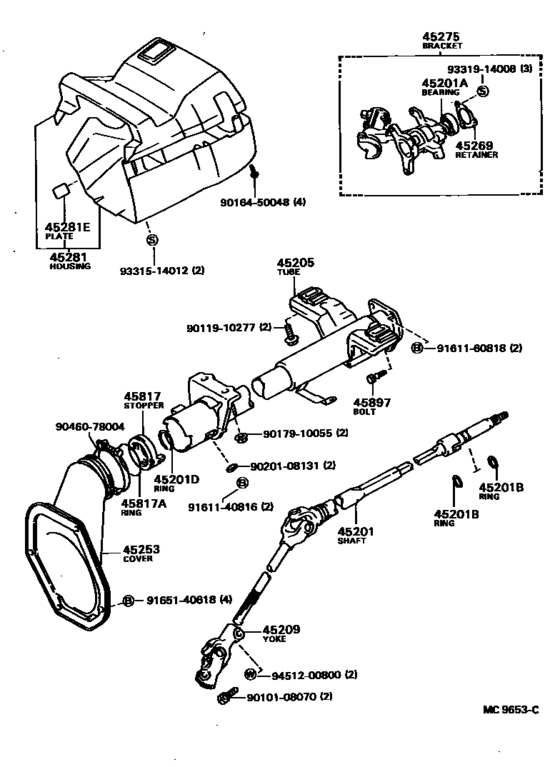

Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80) 46

#	OEM	Part name
45201	45210-12200	Shaft Sub-Assy, Steering Main
45201	45210-12220	Shaft Sub-Assy, Steering Main
45201	90363-18038	Bearing(For Steering Main Shaft)
45201	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45201	90520-17196	Ring, Shaft Snap(For Steering Main Shaft)
45201	96152-00300	Ring, Hole Snap (For Differential Side Gear Shaft)
45205	45870-12180	Tube Sub-Assy, Steering Column
45205	45870-12200	Tube Sub-Assy, Steering Column
45209	45209-32010	Yoke Sub-Assy, Steering Sliding
45209	45209-10020	Yoke Sub-Assy, Steering Sliding
45209	45209-32020	Yoke Sub-Assy, Steering Sliding
45209	45209-16010	Yoke Sub-Assy, Steering Sliding
45253	45025-12120	Cover, Steering Column Hole
45269	45269-10010	Retainer, Main Shaft Bearing
45275	45280-12090	Bracket, Steering Column, Upper
45275	45280-12092	Bracket, Steering Column, Upper
45275	45280-17010	Bracket, Steering Column, Upper
45281	45286-12933-03	Housing, Steering Column
45281	45286-12933-04	Housing, Steering Column
45281	45286-12933-06	Housing, Steering Column
45281	45286-12933-14	Housing, Steering Column
45281	45286-12934-03	Housing, Steering Column
45281	45286-12934-01	Housing, Steering Column
45281	45286-12934-04	Housing, Steering Column
45281	45286-12934-06	Housing, Steering Column
45281	45283-22010	Plate, Safety Caution
45817	45808-20020	Stopper, Steering Shaft Thrust
45817	45808-20030	Stopper Sub-Assy, Steering Shaft Thrust
45817	90301-54002	Ring, O(For Input Front)
45817	96711-24056	Ring, O(For Steering Shaft Thrust Stopper)
45897	45897-12020	Bolt, Steering Lock Set
9010108070	90101-08070	Bolt, Hexagon
9010108070	90119-08560	Bolt, Hexagon
9011910277	90119-10277	New Genuine Part
9016450048	90164-50048	SCREW
9017910055	90179-10055	NUT
9020108131	90201-08131	WASHER
9046078004	90460-78004	New Genuine Part
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9161160818	91611-60818	Bolt(For Oil Receiver Pipe)
9161160818	90119-08830	Bolt(For Oil Receiver Pipe)
9165140618	91651-40618	New Genuine Part
9331514012	93315-14012	Screw with washer
9331914008	93319-14008	SCREW
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
45025-12120	Cover, Steering Column Hole	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45209-10020	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45209-16010	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45209-32010	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45209-32020	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45210-12200	Shaft Sub-Assy, Steering Main	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45210-12220	Shaft Sub-Assy, Steering Main	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45269-10010	Retainer, Main Shaft Bearing	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45280-12090	Bracket, Steering Column, Upper	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45280-12092	Bracket, Steering Column, Upper	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45280-17010	Bracket, Steering Column, Upper	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45283-22010	Plate, Safety Caution	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45286-12933-03	Housing, Steering Column	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45286-12933-04	Housing, Steering Column	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45286-12933-06	Housing, Steering Column	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45286-12933-14	Housing, Steering Column	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45286-12934-01	Housing, Steering Column	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45286-12934-03	Housing, Steering Column	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45286-12934-04	Housing, Steering Column	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45286-12934-06	Housing, Steering Column	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45808-20020	Stopper, Steering Shaft Thrust	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45808-20030	Stopper Sub-Assy, Steering Shaft Thrust	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45870-12180	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45870-12200	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
45897-12020	Bolt, Steering Lock Set	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
90101-08070	Bolt, Hexagon	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
90119-08830	Bolt(For Oil Receiver Pipe)	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
90119-10277	New Genuine Part	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
90164-50048	SCREW	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
90179-10055	NUT	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
90201-08131	WASHER	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
90301-54002	Ring, O(For Input Front)	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
90363-18038	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
90460-78004	New Genuine Part	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
90520-17196	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
91611-60818	Bolt(For Oil Receiver Pipe)	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
91611-B0816	Bolt	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
91651-40618	New Genuine Part	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
93315-14012	Screw with washer	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
93319-14008	SCREW	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
96152-00300	Ring, Hole Snap (For Differential Side Gear Shaft)	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
96711-24056	Ring, O(For Steering Shaft Thrust Stopper)	Steering Column & Shaft ([05.1985 - ] (8305-8505)AE80,81,CE80 ; (8305-8505)AE82..FXR,F XT,GT,SR,SX ; (8505- )AE82..FXR, SE ; (8505- )A E81,CE80,EE80)
