AE81

Toyota COROLLA · 1983 · 4,956 parts · 178 categories
AE81 ×

← Back to categories

4,956 items

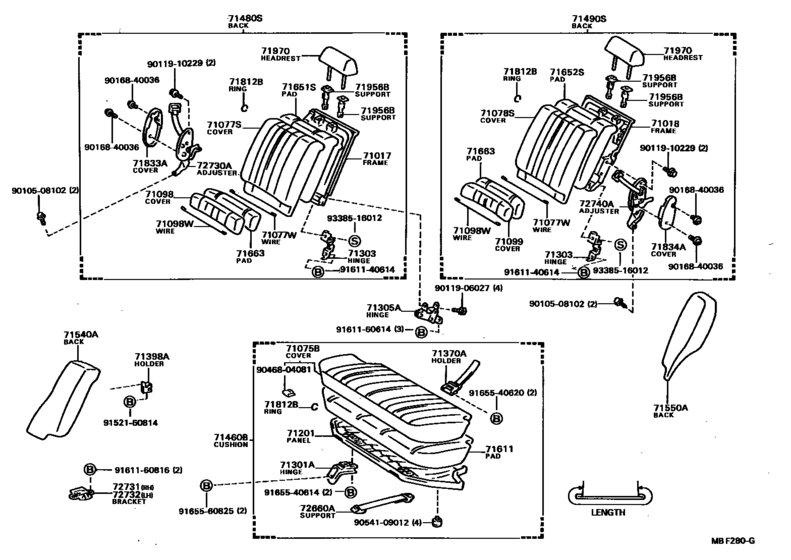

Rear Seat & Seat Track ([05.1985 - ] (8305-8401)ZX ; (8401-8505)5D3 ; (8505- )5D3) 116
#OEMPart name
71017 71017-12220 Frame Sub-Assy, Rear Seat Back, Rh
71018 71018-12010 Frame Sub-Assy, Rear Seat Back, Lh
71075 71065-1A120-03 Cover, Rear Seat Cushion (For Bench Type)
71075 71065-1A120-04 Cover, Rear Seat Cushion (For Bench Type)
71075 71065-1A120-06 Cover, Rear Seat Cushion (For Bench Type)
71075 71065-1A150-08 Cover, Rear Seat Cushion (For Bench Type)
71075 71065-1A320-03 Cover, Rear Seat Cushion (For Bench Type)
71075 71065-1A320-06 Cover, Rear Seat Cushion (For Bench Type)
71075 71065-1A331-03 Cover, Rear Seat Cushion (For Bench Type)
71075 71065-1A331-04 Cover, Rear Seat Cushion (For Bench Type)
71075 71065-1A331-06 Cover, Rear Seat Cushion (For Bench Type)
71077 71077-1H121-03 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-1H121-04 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-1H121-06 Cover, Rear Seat Back, Rh (For Separate Type)
71077 90580-16024 Wire, Rear Seat Back Cover
71077 90580-20170 Wire, Rear Seat Back Cover
71077 90580-16041 Wire, Rear Seat Back Cover
71077 90580-20107 Wire, Front Seat Cushion Cover
71077 90580-16063 Wire, Rear Seat Back Cover
71078 71078-1A101-03 Cover, Rear Seat Back, Lh(For Separate Type)
71078 71078-1A101-04 Cover, Rear Seat Back, Lh(For Separate Type)
71078 71078-1A101-06 Cover, Rear Seat Back, Lh(For Separate Type)
71098 71098-12031-03 Cover Sub-Assy, Rear Seat Back, Lower Rh
71098 71098-12031-04 Cover Sub-Assy, Rear Seat Back, Lower Rh
71098 71098-12031-06 Cover Sub-Assy, Rear Seat Back, Lower Rh
71099 71099-12031-03 Cover Sub-Assy, Rear Seat Back, Lower Lh
71099 71099-12031-04 Cover Sub-Assy, Rear Seat Back, Lower Lh
71099 71099-12031-06 Cover Sub-Assy, Rear Seat Back, Lower Lh
71201 71201-12010 Panel Sub-Assy, Rear Seat Cushion
71301 71301-12020-03 Hinge Sub-Assy, Rear Seat Cushion
71301 71301-12020-04 Hinge Sub-Assy, Rear Seat Cushion
71301 71301-12020-06 Hinge Sub-Assy, Rear Seat Cushion
71303 71303-12051 Hinge Sub-Assy, Rear Seat Back
71305 71305-12040 Hinge Sub-Assy, Rear Seat Back, Center
71370 71370-12010-03 Holder Assy, Rear Seat Cushion
71370 71370-12010-04 Holder Assy, Rear Seat Cushion
71370 71370-12010-06 Holder Assy, Rear Seat Cushion
71398 71397-12010 Holder, Rear Seat Back, Rh
71398 71398-12010 Holder, Rear Seat Back
71460 71560-1A040-08 Cushion Assy, Rear Seat (For Bench Type)
71460 71560-1A110-03 Cushion Assy, Rear Seat (For Bench Type)
71460 71560-1A110-04 Cushion Assy, Rear Seat (For Bench Type)
71460 71560-1A110-06 Cushion Assy, Rear Seat (For Bench Type)
71460 71560-1A360-03 Cushion Assy, Rear Seat (For Bench Type)
71460 71560-1A360-06 Cushion Assy, Rear Seat (For Bench Type)
71460 71560-1A371-03 Cushion Assy, Rear Seat (For Bench Type)
71460 71560-1A371-04 Cushion Assy, Rear Seat (For Bench Type)
71460 71560-1A371-06 Cushion Assy, Rear Seat (For Bench Type)
71480 71480-1H181-03 Back Assy, Rear Seat, Rh (For Separate Type)
71480 71480-1H181-04 Back Assy, Rear Seat, Rh (For Separate Type)
71480 71480-1H181-06 Back Assy, Rear Seat, Rh (For Separate Type)
71490 71490-1A151-03 Back Assy, Rear Seat, Lh (For Separate Type)
71490 71490-1A151-04 Back Assy, Rear Seat, Lh (For Separate Type)
71490 71490-1A151-06 Back Assy, Rear Seat, Lh (For Separate Type)
71540 71540-12040-03 Back Assy, Rear Side Seat, Rh
71540 71540-12040-04 Back Assy, Rear Side Seat, Rh
71540 71540-12040-06 Back Assy, Rear Side Seat, Rh
71550 71550-12040-03 Back Assy, Rear Side Seat, Lh
71550 71550-12040-04 Back Assy, Rear Side Seat, Lh
71550 71550-12040-06 Back Assy, Rear Side Seat, Lh
71611 71611-12420 Pad, Rear Seat Cushion
71611 71611-12440 Pad, Rear Seat Cushion
71651 71651-12470 Pad, Rear Seat Back, Rh(For Separate Type)
71652 71652-12350 Pad, Rear Seat Back, Lh(For Separate Type)
71663 71663-12100 Pad, Rear Seat Back, Lower
71663 71664-12040 Pad, Rear Seat Back, Lower
71812 90468-18071 Clip (For Front Seat Cushion Cover)
71812 90468-16019 Clip (For Rear Seat Back)
71833 71833-12020-03 Cover, Rear Seat Reclining, No.1 Rh
71833 71833-12020-04 Cover, Rear Seat Reclining, No.1 Rh
71833 71833-12020-06 Cover, Rear Seat Reclining, No.1 Rh
71834 71834-12020-03 Cover, Rear Seat Reclining, No.1 Lh
71834 71834-12020-04 Cover, Rear Seat Reclining, No.1 Lh
71834 71834-12020-06 Cover, Rear Seat Reclining, No.1 Lh
71956 71930-10060-01 Support, Front Seat Headrest
71956 71930-10060-B1 Support, Front Seat Headrest
71956 71930-10060-04 Support, Front Seat Headrest
71956 71930-10060-16 Support, Front Seat Headrest
71956 71931-10010-01 Support, Front Seat Headrest
71956 71931-10010-B1 Support, Front Seat Headrest
71956 71931-10010-04 Support, Front Seat Headrest
71956 71931-10010-16 Support, Front Seat Headrest
71970 71940-12030-06 Headrest Assy, Rear Seat
71970 71940-12030-13 Headrest Assy, Rear Seat
71970 71940-12030-14 Headrest Assy, Rear Seat
72660 72660-12010 Support Assy, Rear Seat Cushion
72730 72730-12030-03 Adjuster Assy, Rear Seat Reclining, Rh
72730 72730-12030-04 Adjuster Assy, Rear Seat Reclining, Rh
72730 72730-12030-06 Adjuster Assy, Rear Seat Reclining, Rh
72731 72731-12010 Bracket, Rear Seat Reclining, Rh
72732 72732-12010 Bracket, Rear Seat Reclining, Lh
72740 72740-12030-03 Adjuster Assy, Rear Seat Reclining, Lh
72740 72740-12030-04 Adjuster Assy, Rear Seat Reclining, Lh
72740 72740-12030-06 Adjuster Assy, Rear Seat Reclining, Lh
9010508102 90105-08102 New Genuine Part
9011906027 90119-06027 New Genuine Part
9011910229 90119-10229 BOLT
9016840036 90168-40036 SCREW
9046804081 90468-04081 New Genuine Part
9054109012 90541-09012 Cushion (For Rear Seat Cushion)
9152160814 91521-60814 New Genuine Part
9152160814 91511-B0814 BOLT
9161140614 91611-40614 Bolt, Hexagon(For Steering Column Bracket)
9161140614 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9161160614 91611-60614 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9165540614 91655-40614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9165540614 91651-60614 Bolt
9165540620 91655-40620 Bolt(For Oil Receiver Pipe)
9165540620 91651-60618 Bolt(For Oil Receiver Pipe)
9165560825 91655-60825 Bolt, Radiator Side Support Plate
9165560825 91651-B0820 Bolt, Radiator Side Support Plate
9166140614 91661-40614 New Genuine Part
9166140614 91661-A0614 New Genuine Part
9338516012 93385-16012 New Genuine Part
