Search › Model › AE81
AE81

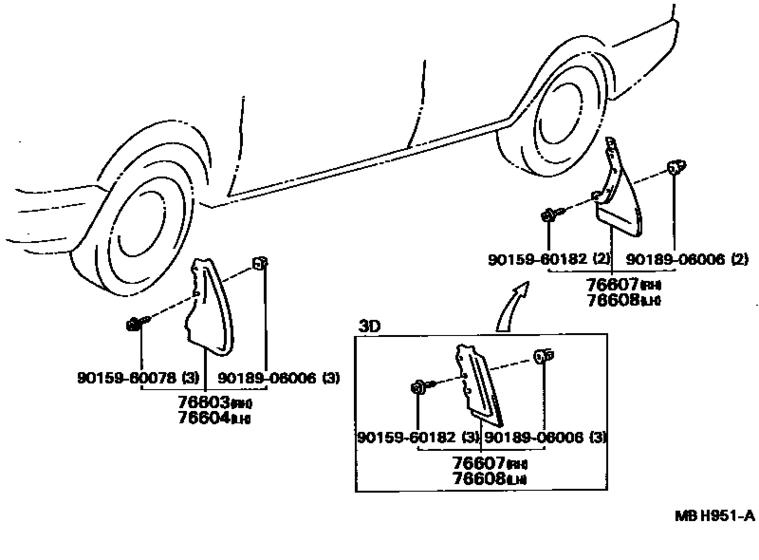

Mudguard & Spoiler ([05.1983 - ] (8305- )) 9
| # | OEM | Part name |
|---|---|---|
| 76603 | 76621-19086 | Mudguard Sub-Assy, Front Fender, Rh |
| 76604 | 76622-19086 | Mudguard Sub-Assy, Front Fender, Lh |
| 76607 | 76625-19026 | Mudguard Sub-Assy, Quarter Panel, Rear Rh |
| 76607 | 76625-19115 | Mudguard Sub-Assy, Quarter Panel, Rear Rh |
| 76608 | 76626-19036 | Mudguard Sub-Assy, Quarter Panel, Rear Lh |
| 76608 | 76626-19125 | Mudguard Sub-Assy, Quarter Panel, Rear Lh |
| 9015960078 | 90159-60078 | SCREW |
| 9015960182 | 90159-60182 | SCREW |
| 9018906006 | 90189-06006 | Grommet |
| OEM | Part name | Category |
|---|---|---|
| 76621-19086 | Mudguard Sub-Assy, Front Fender, Rh | Mudguard & Spoiler ([05.1983 - ] (8305- )) |
| 76622-19086 | Mudguard Sub-Assy, Front Fender, Lh | Mudguard & Spoiler ([05.1983 - ] (8305- )) |
| 76625-19026 | Mudguard Sub-Assy, Quarter Panel, Rear Rh | Mudguard & Spoiler ([05.1983 - ] (8305- )) |
| 76625-19115 | Mudguard Sub-Assy, Quarter Panel, Rear Rh | Mudguard & Spoiler ([05.1983 - ] (8305- )) |
| 76626-19036 | Mudguard Sub-Assy, Quarter Panel, Rear Lh | Mudguard & Spoiler ([05.1983 - ] (8305- )) |
| 76626-19125 | Mudguard Sub-Assy, Quarter Panel, Rear Lh | Mudguard & Spoiler ([05.1983 - ] (8305- )) |
| 90159-60078 | SCREW | Mudguard & Spoiler ([05.1983 - ] (8305- )) |
| 90159-60182 | SCREW | Mudguard & Spoiler ([05.1983 - ] (8305- )) |
| 90189-06006 | Grommet | Mudguard & Spoiler ([05.1983 - ] (8305- )) |
