AE81

Toyota COROLLA · 1983 · 4,956 parts · 178 categories
AE81 ×

← Back to categories

4,956 items

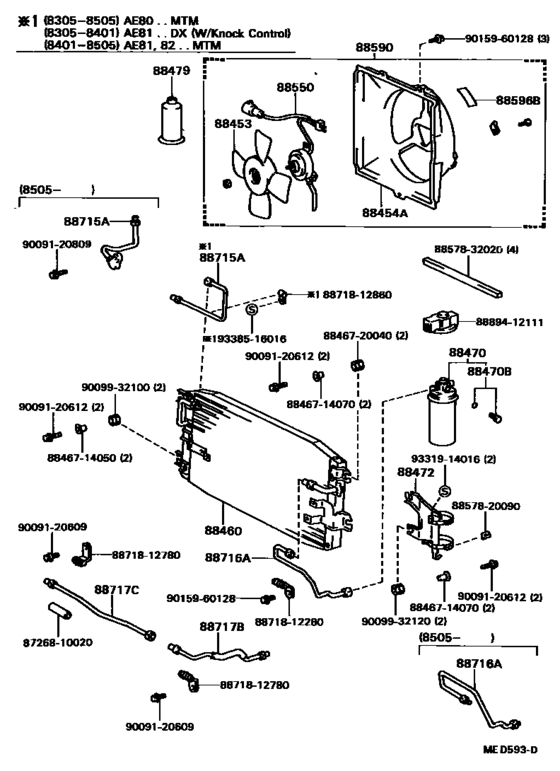

Heating & Air Conditioning - Cooler Piping ([05.1983 - ] (8305- )AE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,GL, SE,SR,SX,ZX) 97
#OEMPart name
88453 16361-28010 Fan, Cooling (For Condenser)
88453 88453-10010 Fan, Cooling (For Condenser)
88454 88454-12070 Shroud, Fan
88454 88454-12071 Shroud, Fan
88454 88454-12050 Shroud, Fan
88454 88454-12051 Shroud, Fan
88454 88454-12090 Shroud, Fan
88460 88460-12230 Condenser Assy, Cooler
88460 88460-12240 Condenser Assy, Cooler
88460 88460-12320 Condenser Assy, Cooler
88460 88460-12250 Condenser Assy, Cooler
88460 88460-12200 Condenser Assy, Cooler
88460 88460-12330 Condenser Assy, Cooler
88470 88470-14010 Receiver & Dryer Assy, Cooler
88470 04884-33110 New Genuine Part
88470 88475-12020 Bolt, Fuse
88472 88473-20010 Bracket, Receiver Tank, No.1
88479 90986-02001 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02005 New Genuine Part
88550 88550-12080 Motor Assy, Blower (For Condenser)
88550 88550-12090 Motor Assy, Blower (For Condenser)
88590 88590-12050 Blower Assy, W/shroud
88590 88590-12051 Blower Assy, W/shroud
88590 88590-12021 Blower Assy, W/shroud
88590 88590-12040 Blower Assy, W/shroud
88590 88590-12010 Blower Assy, W/shroud
88590 88590-12120 Blower Assy, W/shroud
88596 88596-14010 Plate, Caution(For Fan Shroud)
88596 88596-24010 Plate, Caution, No.1
88645 88645-32020 Switch, Pressure No.1
88645 88645-16050 Switch, Pressure No.1
88711 88711-12260 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-12370 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-12490 Hose, Cooler Refrigerant Suction, No.1
88712 88712-12491 Hose, Cooler Refrigerant Suction, No.1
88715 88715-12260 Pipe, Cooler Refrigerant Discharge, A
88715 88715-12340 Pipe, Cooler Refrigerant Discharge, A
88715 88715-12350 Pipe, Cooler Refrigerant Discharge, A
88716 88716-12750 Pipe, Cooler Refrigerant Liquid, A
88716 88726-12080 Pipe, Cooler Refrigerant Liquid, A
88716 88716-12761 Pipe, Cooler Refrigerant Liquid, E
88716 88726-12140 Pipe, Cooler Refrigerant Liquid, E
88717 88717-12230 Pipe, Cooler Refrigerant Suction, B
88717 88717-12260 Pipe, Cooler Refrigerant Suction, C
88717 88717-12220 Pipe, Cooler Refrigerant Suction, A
88717 88717-12221 Pipe, Cooler Refrigerant Suction, A
887181 88718-1A080 Pipe, Cooler Refrigerant Suction, No.2
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
8726810020 87268-10020 Insulator, Cooler Refrigerant Hose, No.2
8726810020 88714-24100 Insulator, Cooler Refrigerant Hose, No.2
8844612050 88446-12050 Bolt, Idle Pulley
8846712020 88467-12020 Cushion, Cooler Condenser, No.1
8846712040 88467-12040 Cushion, Cooler Condenser, No.1
8846712070 88467-12070 Cushion, Cooler Condenser, No.1
8846714050 88467-14050 Cushion, Cooler Condenser, No.1
8846714070 88467-14070 Insulator (For Power Take-Off Cable Bracket)
8846720040 88467-20040 Insulator, Cooler Condenser Mounting
8846795701 88467-95701 Insulator, Cooler Condenser Mounting
8856916020 88569-16020 Clamp (for Cooler Relay)
8857820090 88578-20090 Paking, Cooler Air Duct
8857832020 88578-32020 Packing A (For Cooler)
8868812510 88688-12510 Bracket, Cooler Diaphragm
8871410010 88714-10010 Insulator(For Water By-Pass Hose)
8871412210 88714-12210 Hose, Cooler Refrigerant Liquid, No.1
8871416020 88714-16020 Insulator, Cooler Refrigerant Hose, No.2
8871416020 88714-95402 Insulator, Cooler Refrigerant Hose, No.1
8871812280 88718-12280 Clamp(For Cooler Refrigerant Pipe), No.1
8871812770 88718-12770 Pipe, Cooler Refrigerant Suction, No.2
8871812780 88718-12780 Pipe, Cooler Refrigerant Suction, No.2
8871812790 88718-12790 Pipe, Cooler Refrigerant Suction, No.2
8871812800 88718-12800 Pipe, Cooler Refrigerant Suction, No.2
8871812810 88718-12810 Pipe, Cooler Refrigerant Suction, No.2
8871812820 88718-12820 Pipe, Cooler Refrigerant Suction, No.2
8871812850 88718-12850 Pipe, Cooler Refrigerant Suction, No.2
8871812860 88718-12860 Pipe, Cooler Refrigerant Suction, No.2
8871820480 88718-20480 Pipe, Cooler Refrigerant Suction, No.2
8889412111 88894-12111 Cap, Cooler Receiver Tank
8889595708 88895-95708 Insulator, Hose (For Idle Up Device)
8889612150 88896-12150 Cover, Air Conditioner
9009120609 90091-20609 BOLT
9009120612 90091-20612 New Genuine Part
9009120612 90091-20642 BOLT WWASHER
9009120809 90091-20809 New Genuine Part
9009932100 90099-32100 Cushion, Cooler Condenser, No.2
9009932120 90099-32120 Cushion, Cooler Condenser, No.2
9009932120 90099-32130 Grommet (For Power Take-Off Cable Bracket)
9015960128 90159-60128 New Genuine Part
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9046400074 90464-00074 Joint, No.1 (For Idle Up Divice)
9094703002 90947-03002 New Genuine Part
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9331914016 93319-14016 New Genuine Part
9338516016 93385-16016 New Genuine Part
9338556020 93385-56020 New Genuine Part
9338556020 90091-20641 New Genuine Part
9417110600 94171-10600 New Genuine Part
