Search › Model › AE81

AE81

Toyota COROLLA · 1983 · 4,956 parts · 178 categories

4,956 items

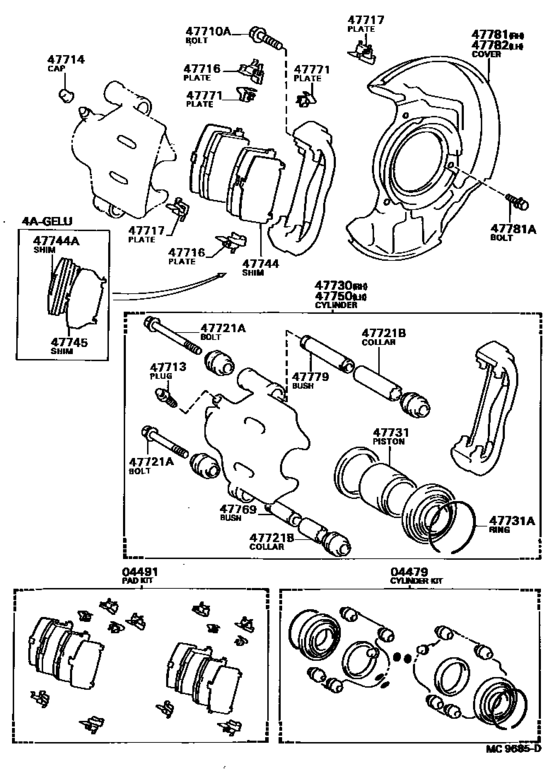

Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- )) 28

#	OEM	Part name
4479	04479-16021	Cylinder Kit, Disc Brake, Front
4491	04491-12170	Pad Kit, Disc Brake, Front
4491	04465-20030	Pad Kit, Disc Brake, Front
4945	04945-32220	Shim Kit, Anti Squeal, Front
4947	04947-32010	Fitting Kit, Disc Brake, Front
47710	90119-12040	Bolt, Hexagon(For Front Disc Brake Caliper)
47713	47547-20010	Plug, Bleeder(For Release Cylinder)
47714	31478-30010	Bleeder Plug Cap
47716	47716-32010	Plate, Pad Support, No.1(For Front Disc Brake)
47716	47716-32031	Plate, Pad Support, No.1(For Front Disc Brake)
47717	47717-32010	Plate, Pad Support, No.2(For Front Disc Brake)
47717	47717-32031	Plate, Pad Support, No.2(For Front Disc Brake)
47721	90119-09003	Bolt(For Front Disc Brake Cylinder Slide)
47721	90119-09004	Bolt(For Front Disc Brake Cylinder Slide)
47721	90387-15004	Collar(For Front Disc Brake Cylinder Mounting)
47721	90387-15005	Collar(For Front Disc Brake Cylinder Mounting)
47730	47730-12200	Cylinder Assy, Front Disc Brake, Rh
47731	47731-16020	Piston, Front Disc Brake
47731	90522-61001	Ring, Set(For Front Disc Brake Piston)
47744	47744-32010	Shim, Anti-Squeal, No.1(For Front Disc Brake)
47750	47750-12200	Cylinder Assy, Disc Brake, Lh
47769	47769-16010	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47769	47769-12030	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47771	47771-32010	Plate, Pad Wear Indicator, No.1
47779	47779-16010	Bush, Cylinder Slide, No.2(For Front Disc Brake)
47781	47781-20140	Cover, Disc Brake Dust, Front Rh
47781	90119-06227	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
47782	47782-20140	Cover, Disc Brake Dust, Front Lh

OEM	Part name	Category
04465-20030	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
04479-16021	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
04491-12170	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
04945-32220	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
04947-32010	Fitting Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
31478-30010	Bleeder Plug Cap	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
47547-20010	Plug, Bleeder(For Release Cylinder)	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
47716-32010	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
47716-32031	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
47717-32010	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
47717-32031	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
47730-12200	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
47731-16020	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
47744-32010	Shim, Anti-Squeal, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
47750-12200	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
47769-12030	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
47769-16010	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
47771-32010	Plate, Pad Wear Indicator, No.1	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
47779-16010	Bush, Cylinder Slide, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
47781-20140	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
47782-20140	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
90119-06227	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
90119-09003	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
90119-09004	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
90119-12040	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
90387-15004	Collar(For Front Disc Brake Cylinder Mounting)	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
90387-15005	Collar(For Front Disc Brake Cylinder Mounting)	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
90522-61001	Ring, Set(For Front Disc Brake Piston)	Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- ))
