Search › Model › AE81

AE81

Toyota COROLLA · 1983 · 4,956 parts · 178 categories

4,956 items

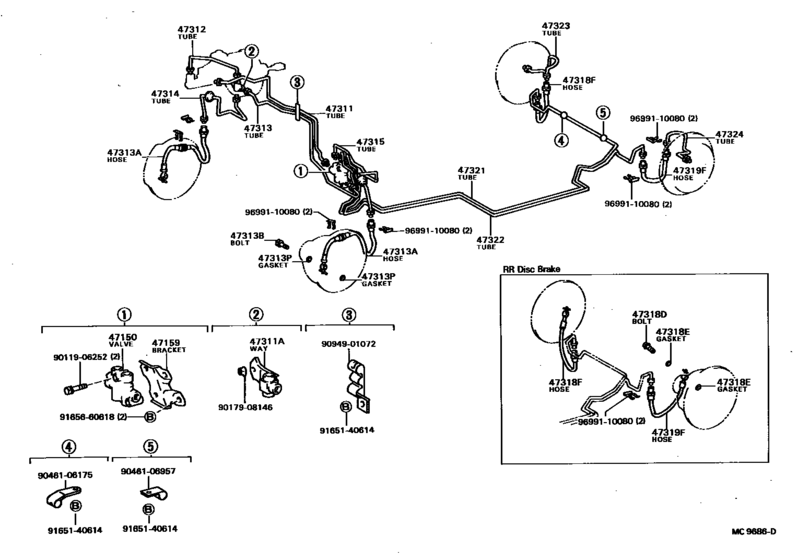

Brake Tube & Clamp ([05.1983 - ] (8305- )) 27

#	OEM	Part name
47150	47150-12050	Valve Assy, Proportioning
47150	47150-12230	Valve Assy, Proportioning
47159	47159-12040	Bracket, Proportioning Valve
47311	47311-12340	Tube, Front Brake, No.1
47311	90413-10164	Way(For Front Brake Tube)
47312	47312-12200	Tube, Front Brake, No.2
47313	47313-12150	Tube, Front Brake, No.3
47313	90947-02455	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47314	47314-12190	Tube, Front Brake, No.4
47315	47315-12330	Tube, Front Brake, No.5
47318	90947-02465	Hose, Flexible(For Rear Rh)
47321	47321-12010	Tube, Rear Brake, No.1
47322	47322-12120	Tube, Rear Brake, No.2
47323	47323-12200	Tube, Rear Brake, No.3
47324	47324-12160	Tube, Rear Brake, No.4
9011906252	90119-06252	New Genuine Part
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9046106175	90461-06175	New Genuine Part
9046106957	90461-06957	Clamp, Brake Tube, No.3
9094901072	90949-01072	New Genuine Part
9165140614	91651-40614	Bolt
9165660618	91656-60618	Bolt (For Rear Differential Breather Plug Oil Deflector)
9165660618	91651-60614	Bolt
9699110080	96991-10080	CLIP

OEM	Part name	Category
47150-12050	Valve Assy, Proportioning	Brake Tube & Clamp ([05.1983 - ] (8305- ))
47150-12230	Valve Assy, Proportioning	Brake Tube & Clamp ([05.1983 - ] (8305- ))
47159-12040	Bracket, Proportioning Valve	Brake Tube & Clamp ([05.1983 - ] (8305- ))
47311-12340	Tube, Front Brake, No.1	Brake Tube & Clamp ([05.1983 - ] (8305- ))
47312-12200	Tube, Front Brake, No.2	Brake Tube & Clamp ([05.1983 - ] (8305- ))
47313-12150	Tube, Front Brake, No.3	Brake Tube & Clamp ([05.1983 - ] (8305- ))
47314-12190	Tube, Front Brake, No.4	Brake Tube & Clamp ([05.1983 - ] (8305- ))
47315-12330	Tube, Front Brake, No.5	Brake Tube & Clamp ([05.1983 - ] (8305- ))
47321-12010	Tube, Rear Brake, No.1	Brake Tube & Clamp ([05.1983 - ] (8305- ))
47322-12120	Tube, Rear Brake, No.2	Brake Tube & Clamp ([05.1983 - ] (8305- ))
47323-12200	Tube, Rear Brake, No.3	Brake Tube & Clamp ([05.1983 - ] (8305- ))
47324-12160	Tube, Rear Brake, No.4	Brake Tube & Clamp ([05.1983 - ] (8305- ))
90119-06252	New Genuine Part	Brake Tube & Clamp ([05.1983 - ] (8305- ))
90179-08146	Nut	Brake Tube & Clamp ([05.1983 - ] (8305- ))
90179-08204	Nut	Brake Tube & Clamp ([05.1983 - ] (8305- ))
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([05.1983 - ] (8305- ))
90413-10164	Way(For Front Brake Tube)	Brake Tube & Clamp ([05.1983 - ] (8305- ))
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([05.1983 - ] (8305- ))
90461-06175	New Genuine Part	Brake Tube & Clamp ([05.1983 - ] (8305- ))
90461-06957	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([05.1983 - ] (8305- ))
90947-02455	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([05.1983 - ] (8305- ))
90947-02465	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([05.1983 - ] (8305- ))
90949-01072	New Genuine Part	Brake Tube & Clamp ([05.1983 - ] (8305- ))
91651-40614	Bolt	Brake Tube & Clamp ([05.1983 - ] (8305- ))
91651-60614	Bolt	Brake Tube & Clamp ([05.1983 - ] (8305- ))
91656-60618	Bolt (For Rear Differential Breather Plug Oil Deflector)	Brake Tube & Clamp ([05.1983 - ] (8305- ))
96991-10080	CLIP	Brake Tube & Clamp ([05.1983 - ] (8305- ))
