AE80

Toyota COROLLA · 1983 · 3,396 parts · 187 categories

3,396 items

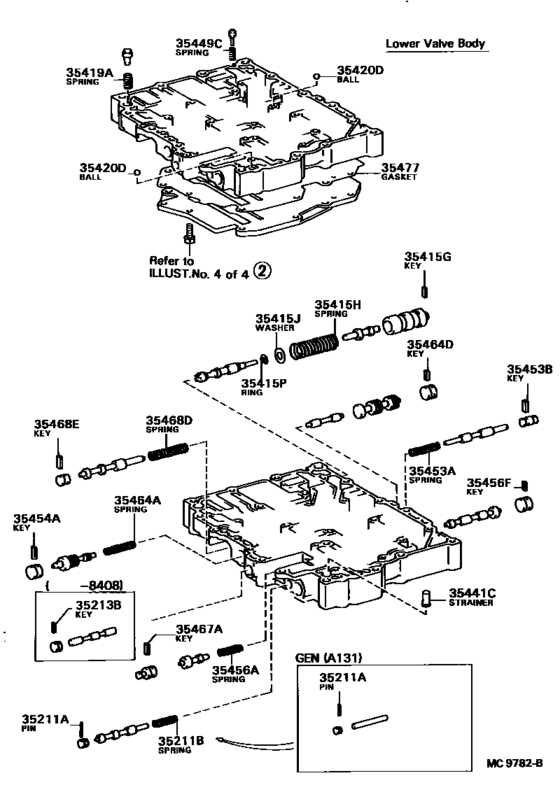

Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC) 20

#	OEM	Part name
35211	90250-02013	Pin, Straight (For Lock Up Signal Valve)
35211	90501-07032	Spring, Compression (For Lock Up Signal Valve)
35415	90282-03001	Key, Straight (For Lock Up Signal Valve)
35415	90501-16065	Spring, Compression (For Primary Regulator Valve)
35415	90201-06013	Washer (For Primary Regulator Valve)
35415	94613-10601	Washer (For Primary Regulator Valve)
35415	94614-10600	Washer (For Primary Regulator Valve)
35415	90523-06004	Ring, E (For Primary Regulator Valve)
35419	90501-10056	Spring, Compression (For Check Valve)
35420	35495-22010	Ball (For Transfer Upper Valve Body)
35420	35495-22020	Ball (For Transfer Upper Valve Body)
35441	35441-12010	Strainer, Solenoid Oil
35449	90501-09032	Spring, Compression (For Valve Pressure Relief)
35453	90501-09036	Spring, Compression (For Detent Regulator Valve)
35453	90282-03002	Key, Straight (For Lock Up Signal Valve)
35456	90501-06027	Spring, Compression (For 2-3 Shift Valve)
35456	90282-03004	Key, Straight (For 2-3 Shift Valve)
35464	90501-06025	Spring, Compression (For 1-2 Shift Valve)
35468	90501-14059	Spring, Compression (For Secondary Regulator Valve)
35477	35477-12020	Gasket, Valve Body Cover

OEM	Part name	Category
35441-12010	Strainer, Solenoid Oil	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
35477-12020	Gasket, Valve Body Cover	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
35495-22010	Ball (For Transfer Upper Valve Body)	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
35495-22020	Ball (For Transfer Upper Valve Body)	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
90201-06013	Washer (For Primary Regulator Valve)	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
90250-02013	Pin, Straight (For Lock Up Signal Valve)	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
90282-03001	Key, Straight (For Lock Up Signal Valve)	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
90282-03002	Key, Straight (For Lock Up Signal Valve)	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
90282-03004	Key, Straight (For 2-3 Shift Valve)	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
90501-06025	Spring, Compression (For 1-2 Shift Valve)	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
90501-06027	Spring, Compression (For 2-3 Shift Valve)	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
90501-07032	Spring, Compression (For Lock Up Signal Valve)	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
90501-09032	Spring, Compression (For Valve Pressure Relief)	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
90501-09036	Spring, Compression (For Detent Regulator Valve)	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
90501-10056	Spring, Compression (For Check Valve)	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
90501-14059	Spring, Compression (For Secondary Regulator Valve)	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
90501-16065	Spring, Compression (For Primary Regulator Valve)	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
90523-06004	Ring, E (For Primary Regulator Valve)	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
94613-10601	Washer (For Primary Regulator Valve)	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
94614-10600	Washer (For Primary Regulator Valve)	Valve Body & Oil Strainer (Atm) ([05.1983 - ] (8305- )AE8#..3FC)
