AE80

Toyota COROLLA · 1983 · 3,396 parts · 187 categories

← Back to categories

3,396 items

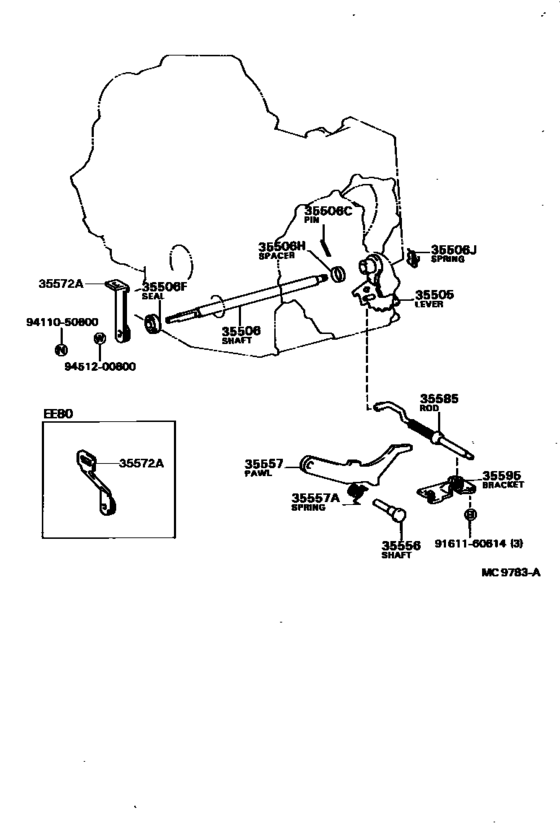

Throttle Link & Valve Lever (Atm) ([05.1983 - ] (8305- )3FC) 18

#	OEM	Part name
35505	35505-20010	Lever Sub-Assy, Manual Valve
35505	35505-32040	Lever Sub-Assy, Manual Valve
35505	35505-32011	Lever Sub-Assy, Manual Valve
35506	35561-32010	Shaft Sub-Assy, Manual Valve Lever
35506	90254-04011	Pin, Slotted Spring (For Transfer Manual Valve Lever)
35506	90311-12002	Oil Seal, Type T
35506	90560-20006	Spacer (For Manual Valve Lever)
35506	90524-09001	Spring, Retainer (For Manual Valve Lever Shaft)
35556	35556-32010	Shaft, Parking Lock Pawl
35557	35557-32020	Pawl, Parking Lock
35557	90508-26047	Spring, Torsion (For Parking Lock Pawl)
35572	35572-12050	Lever, Transmission Control Shaft
35585	35501-32010	Rod Sub-Assy, Parking Lock
35595	35595-32010	Bracket, Parking Lock Pawl
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9411050800	94110-50800	Nut(For Repair Actuator Set)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
35501-32010	Rod Sub-Assy, Parking Lock	Throttle Link & Valve Lever (Atm) ([05.1983 - ] (8305- )3FC)
35505-20010	Lever Sub-Assy, Manual Valve	Throttle Link & Valve Lever (Atm) ([05.1983 - ] (8305- )3FC)
35505-32011	Lever Sub-Assy, Manual Valve	Throttle Link & Valve Lever (Atm) ([05.1983 - ] (8305- )3FC)
35505-32040	Lever Sub-Assy, Manual Valve	Throttle Link & Valve Lever (Atm) ([05.1983 - ] (8305- )3FC)
35556-32010	Shaft, Parking Lock Pawl	Throttle Link & Valve Lever (Atm) ([05.1983 - ] (8305- )3FC)
35557-32020	Pawl, Parking Lock	Throttle Link & Valve Lever (Atm) ([05.1983 - ] (8305- )3FC)
35561-32010	Shaft Sub-Assy, Manual Valve Lever	Throttle Link & Valve Lever (Atm) ([05.1983 - ] (8305- )3FC)
35572-12050	Lever, Transmission Control Shaft	Throttle Link & Valve Lever (Atm) ([05.1983 - ] (8305- )3FC)
35595-32010	Bracket, Parking Lock Pawl	Throttle Link & Valve Lever (Atm) ([05.1983 - ] (8305- )3FC)
90254-04011	Pin, Slotted Spring (For Transfer Manual Valve Lever)	Throttle Link & Valve Lever (Atm) ([05.1983 - ] (8305- )3FC)
90311-12002	Oil Seal, Type T	Throttle Link & Valve Lever (Atm) ([05.1983 - ] (8305- )3FC)
90508-26047	Spring, Torsion (For Parking Lock Pawl)	Throttle Link & Valve Lever (Atm) ([05.1983 - ] (8305- )3FC)
90524-09001	Spring, Retainer (For Manual Valve Lever Shaft)	Throttle Link & Valve Lever (Atm) ([05.1983 - ] (8305- )3FC)
90560-20006	Spacer (For Manual Valve Lever)	Throttle Link & Valve Lever (Atm) ([05.1983 - ] (8305- )3FC)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Throttle Link & Valve Lever (Atm) ([05.1983 - ] (8305- )3FC)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Throttle Link & Valve Lever (Atm) ([05.1983 - ] (8305- )3FC)
94110-50800	Nut(For Repair Actuator Set)	Throttle Link & Valve Lever (Atm) ([05.1983 - ] (8305- )3FC)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Throttle Link & Valve Lever (Atm) ([05.1983 - ] (8305- )3FC)
