Search › Model › AE80

AE80

Toyota COROLLA · 1983 · 3,396 parts · 187 categories

3,396 items

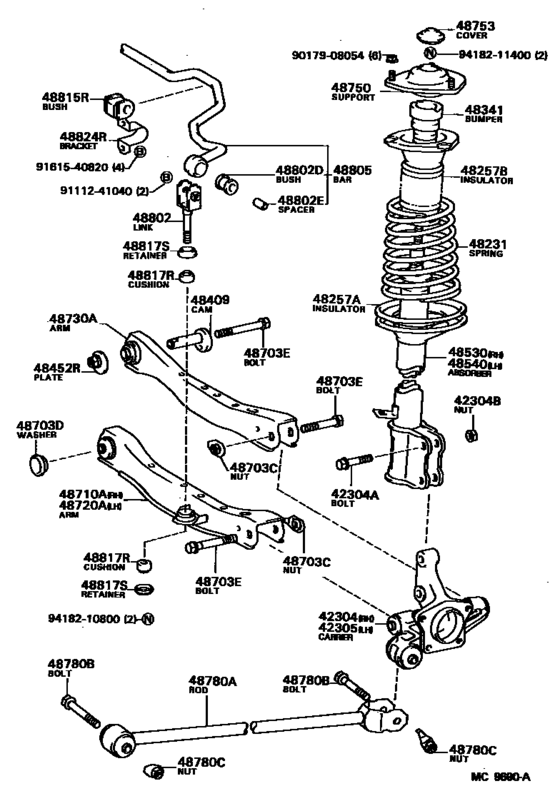

Rear Spring & Shock Absorber ([05.1983 - ] (8305- )) 43

#	OEM	Part name
42304	42304-12010	Carrier Sub-Assy, Rear Axle, Rh
42304	42304-12H00	Carrier Sub-Assy, Rear Axle, Rh
42304	90105-12102	Bolt (For Rear Axle Carrier)
42304	90105-12236	Bolt (For Rear Axle Carrier)
42304	90179-12025	Nut (For Rear Axle Carrier)
42305	42305-12010	Carrier Sub-Assy, Rear Axle, Lh
42305	42305-12H00	Carrier Sub-Assy, Rear Axle, Lh
48257	48258-16010	Insulator, Rear Coil Spring, Lower
48257	48257-32030	Insulator, Rear Coil Spring
48341	48341-12091	Bumper, Rear Spring
48409	48409-32010	Cam Sub-Assy, Rear Suspension Toe Adjust
48452	48452-32010	Plate, Rear Suspension Toe Adjust, No.2
48703	90179-12023	Nut(For Rear Suspension Arm)
48703	90179-12033	Nut(For Rear Suspension Arm)
48703	90209-13005	Washer(For Rear Suspension Arm)
48703	90105-10052	Bolt(For Rear Suspension Arm)
48703	90105-12037	Bolt(For Rear Suspension Arm)
48703	90105-12038	Bolt(For Transaxle Case & Engine Setting)
48710	48710-16020	Arm Assy, Rear Suspension, No.1 Rh
48710	48710-16021	Arm Assy, Rear Suspension, No.1 Rh
48720	48720-16020	Arm Assy, Rear Suspension, No.1 Lh
48720	48720-16021	Arm Assy, Rear Suspension, No.1 Lh
48730	48730-32010	Arm Assy, Rear Suspension, No.2
48730	48730-32011	Arm Assy, Rear Suspension, No.2
48750	48750-12020	Support Assy, Rear Suspension
48753	48753-16010	Cover, Rear Suspension Support
48780	48780-12030	Rod Assy, Strut, Rear
48780	90105-12035	Bolt(For Rear Suspension Arm)
48802	48802-32010	Link Sub-Assy, Stabilizer
48802	90385-11021	Bush, Stabilizer Link
48802	90560-10275	Spacer(For Rear Stabilizer Bar)
48805	48805-12040	Bar Sub-Assy, Rear Stabilizer
48815	48818-12040	Bush, Stabilizer(For Rear)
48817	48817-12010	Cushion, Stabilizer
48817	90948-02024	Retainer, Cushion, No.1(For Front Stabilizer Bar)
48824	48832-12020	Bracket, Stabilizer(For Rear)
9017908054	90179-08054	Nut (For Connecting Rod Swivel)
9111241040	91112-41040	Bolt(For Rear Stabilizer)
9111241040	91111-51040	Shaft, Control Select Lever (For Column Shift)
9161540820	91615-40820	Bolt (for Transmission Control Cable Bracket)
9161540820	91615-60820	Bolt (For Transmission Control Cable Bracket)
9418210800	94182-10800	Nut
9418211400	94182-11400	Nut(For Idler Arm Support)

OEM	Part name	Category
42304-12010	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
42304-12H00	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
42305-12010	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
42305-12H00	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
48257-32030	Insulator, Rear Coil Spring	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
48258-16010	Insulator, Rear Coil Spring, Lower	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
48341-12091	Bumper, Rear Spring	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
48409-32010	Cam Sub-Assy, Rear Suspension Toe Adjust	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
48452-32010	Plate, Rear Suspension Toe Adjust, No.2	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
48710-16020	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
48710-16021	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
48720-16020	Arm Assy, Rear Suspension, No.1 Lh	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
48720-16021	Arm Assy, Rear Suspension, No.1 Lh	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
48730-32010	Arm Assy, Rear Suspension, No.2	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
48730-32011	Arm Assy, Rear Suspension, No.2	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
48750-12020	Support Assy, Rear Suspension	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
48753-16010	Cover, Rear Suspension Support	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
48780-12030	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
48802-32010	Link Sub-Assy, Stabilizer	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
48805-12040	Bar Sub-Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
48817-12010	Cushion, Stabilizer	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
48818-12040	Bush, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
48832-12020	Bracket, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
90105-10052	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
90105-12035	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
90105-12037	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
90105-12038	Bolt(For Transaxle Case & Engine Setting)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
90105-12102	Bolt (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
90105-12236	Bolt (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
90179-08054	Nut (For Connecting Rod Swivel)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
90179-12023	Nut(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
90179-12025	Nut (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
90179-12033	Nut(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
90209-13005	Washer(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
90385-11021	Bush, Stabilizer Link	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
90560-10275	Spacer(For Rear Stabilizer Bar)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
90948-02024	Retainer, Cushion, No.1(For Front Stabilizer Bar)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
91111-51040	Shaft, Control Select Lever (For Column Shift)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
91112-41040	Bolt(For Rear Stabilizer)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
91615-40820	Bolt (for Transmission Control Cable Bracket)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
91615-60820	Bolt (For Transmission Control Cable Bracket)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
94182-10800	Nut	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
94182-11400	Nut(For Idler Arm Support)	Rear Spring & Shock Absorber ([05.1983 - ] (8305- ))
