AE80

Toyota COROLLA · 1983 · 3,396 parts · 187 categories
AE80 ×

← Back to categories

3,396 items

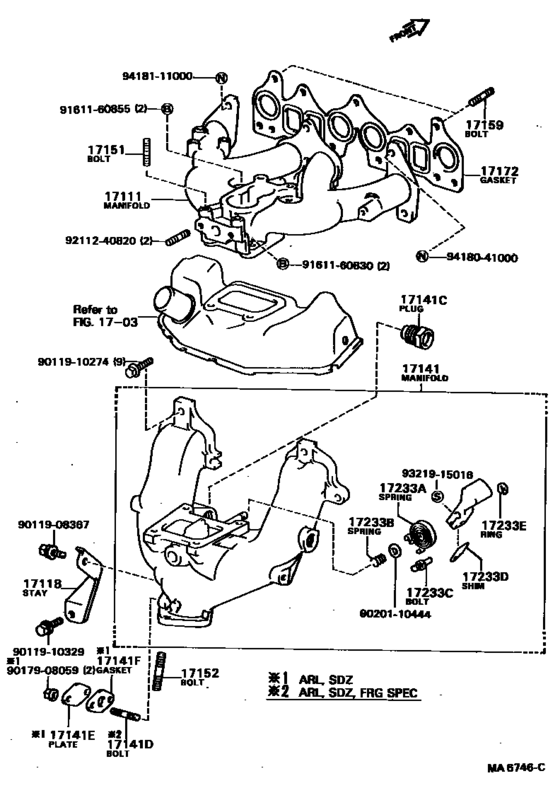

Manifold ([05.1983 - ] (8305- )2ALC,4ALC) 31
#OEMPart name
17111 17111-15030 Manifold, Intake
17118 17118-16020 Stay, Manifold
17141 17140-16010 Manifold, Exhaust
17141 90116-08128 Bolt, Stud(For Manifold Stay)
17141 17148-41010 Plate, Exhaust Manifold
17141 89466-30010 Gasket(For Exhaust Manifold Plate)
17141 89466-20020 Gasket(For Exhaust Manifold Plate)
17151 92112-40832 Bolt, Stud(For Manifold To Carburetor)
17152 90116-10058 Bolt, Stud(For Manifold Extension)
17159 92112-61032 Bolt, Stud(For Manifold To Cylinder Head)
17172 17172-14010 Gasket, Manifold To Cylinder Head
17172 17172-14011 Gasket, Manifold To Cylinder Head
17233 90510-06001 Spring, Spiral, No.1(For Counter Weight)
17233 90501-08022 Spring, Compression(For Heat Control Shaft)
17233 90109-10045 Bolt(For Counter Weight)
17233 90910-10005 Shim(For Counter Weight)
17233 96160-00800 Ring, E(For Counter Weight)
9011908367 90119-08367 New Genuine Part
9011908367 90119-08766 BOLT WWASHER
9011910274 90119-10274 New Genuine Part
9011910274 90119-10038 New Genuine Part
9011910329 90119-10329 New Genuine Part
9017908059 90179-08059 Nut
9017908059 90179-08101 NUT
9020110444 90201-10444 New Genuine Part
9161160830 91611-60830 Bolt(For Clutch Release Cylinder Setting)
9161160855 91611-60855 Bolt(For Rocker Support Set)
9211240820 92112-40820 Bolt, Stud(For Manifold To Venturi)
9321915016 93219-15016 Screw, Cover Set, No.1
9418041000 94180-41000 Nut
9418111000 94181-11000 Nut(For Backing Plate To Rear Axle Housing Setting)
