AE80

Toyota COROLLA · 1983 · 3,396 parts · 187 categories
AE80 ×

← Back to categories

3,396 items

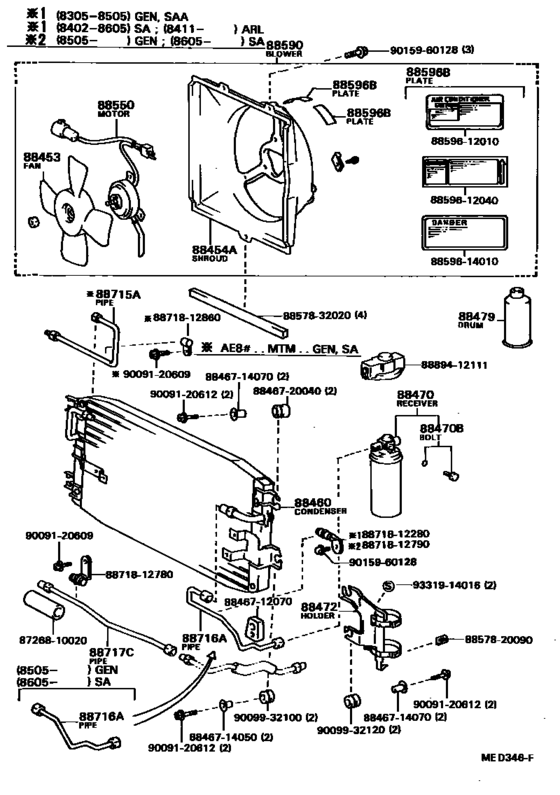

Heating & Air Conditioning - Cooler Piping ([05.1983 - ] (8305- )AE8#,CE80..RHD..CS,CSX,DX,GL,S,SE,STD ,XL) 66
#OEMPart name
88453 16361-28010 Fan, Cooling (For Condenser)
88454 88454-12050 Shroud, Fan
88460 88460-12250 Condenser Assy, Cooler
88460 88460-12200 Condenser Assy, Cooler
88470 88470-14010 Receiver & Dryer Assy, Cooler
88470 04884-33110 New Genuine Part
88470 88475-12020 Bolt, Fuse
88472 88473-20010 Bracket, Receiver Tank, No.1
88479 90986-02001 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02005 New Genuine Part
88550 88550-12080 Motor Assy, Blower (For Condenser)
88590 88590-12040 Blower Assy, W/shroud
88590 88590-12010 Blower Assy, W/shroud
88645 88645-32020 Switch, Pressure No.1
88645 88645-16050 Switch, Pressure No.1
88711 88711-12260 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-12490 Hose, Cooler Refrigerant Suction, No.1
88716 88716-12750 Pipe, Cooler Refrigerant Liquid, A
88716 88716-12761 Pipe, Cooler Refrigerant Liquid, E
88716 88726-12230 Pipe, Cooler Refrigerant Liquid, E
88717 88717-12260 Pipe, Cooler Refrigerant Suction, C
88717 88717-12221 Pipe, Cooler Refrigerant Suction, A
88717 88717-12230 Pipe, Cooler Refrigerant Suction, B
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
8726810020 87268-10020 Insulator, Cooler Refrigerant Hose, No.2
8726810020 88714-24100 Insulator, Cooler Refrigerant Hose, No.2
8846712020 88467-12020 Cushion, Cooler Condenser, No.1
8846712040 88467-12040 Cushion, Cooler Condenser, No.1
8846712070 88467-12070 Cushion, Cooler Condenser, No.1
8846714050 88467-14050 Cushion, Cooler Condenser, No.1
8846714070 88467-14070 Insulator (For Power Take-Off Cable Bracket)
8846720040 88467-20040 Insulator, Cooler Condenser Mounting
8857820090 88578-20090 Paking, Cooler Air Duct
8857832020 88578-32020 Packing A (For Cooler)
8859612010 88596-12010 Plate, Caution, No.1
8859612010 88723-12010 Plate, Caution, No.1
8859612040 88596-12040 Plate, Caution, No.1
8859614010 88596-14010 Plate, Caution(For Fan Shroud)
8871410010 88714-10010 Insulator(For Water By-Pass Hose)
8871412120 88714-12120 Hose, Cooler Refrigerant Liquid, No.1
8871416020 88714-16020 Insulator, Cooler Refrigerant Hose, No.2
8871416020 88714-95402 Insulator, Cooler Refrigerant Hose, No.1
8871812280 88718-12280 Clamp(For Cooler Refrigerant Pipe), No.1
8871812770 88718-12770 Pipe, Cooler Refrigerant Suction, No.2
8871812780 88718-12780 Pipe, Cooler Refrigerant Suction, No.2
8871812790 88718-12790 Pipe, Cooler Refrigerant Suction, No.2
8871812810 88718-12810 Pipe, Cooler Refrigerant Suction, No.2
8871812820 88718-12820 Pipe, Cooler Refrigerant Suction, No.2
8871812850 88718-12850 Pipe, Cooler Refrigerant Suction, No.2
8871812860 88718-12860 Pipe, Cooler Refrigerant Suction, No.2
8871820480 88718-20480 Pipe, Cooler Refrigerant Suction, No.2
8889412111 88894-12111 Cap, Cooler Receiver Tank
9009120609 90091-20609 BOLT
9009120612 90091-20612 New Genuine Part
9009120612 90091-20642 BOLT WWASHER
9009932100 90099-32100 Cushion, Cooler Condenser, No.2
9009932120 90099-32120 Cushion, Cooler Condenser, No.2
9009932120 90099-32130 Grommet (For Power Take-Off Cable Bracket)
9015960128 90159-60128 New Genuine Part
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9331914016 93319-14016 New Genuine Part
9338556020 93385-56020 New Genuine Part
9338556020 90091-20641 New Genuine Part
9417110600 94171-10600 New Genuine Part
