Search › Model › AE80

AE80

Toyota COROLLA · 1983 · 3,396 parts · 187 categories

3,396 items

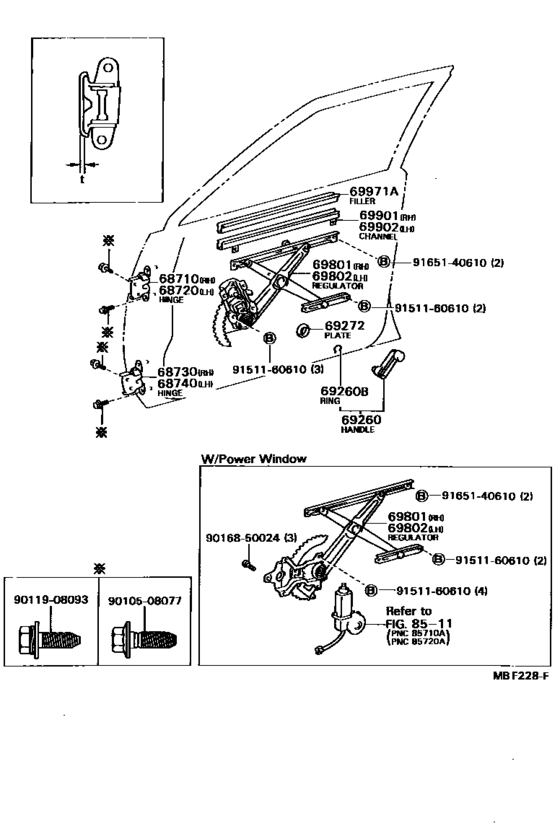

Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS) 37

#	OEM	Part name
68710	68710-12090	Hinge Assy, Front Door, Upper Rh
68720	68720-12090	Hinge Assy, Front Door, Upper Lh
68730	68730-24010	Hinge Assy, Front Door, Lower Rh
68730	68730-60020	Hinge Assy, Front Door, Lower Rh
68740	68740-24010	Hinge Assy, Front Door, Lower Lh
68740	68740-60020	Hinge Assy, Front Door, Lower Lh
69260	69260-10040-10	Handle Assy, Front Door Window Regulator
69260	69260-10040-33	Handle Assy, Front Door Window Regulator
69260	69260-10040-P0	Handle Assy, Front Door Window Regulator
69260	69260-14020-33	Handle Assy, Front Door Window Regulator
69260	69260-14020-01	Handle Assy, Front Door Window Regulator
69260	69260-14020-36	Handle Assy, Front Door Window Regulator
69260	69260-22030-23	Handle Assy, Front Door Window Regulator
69260	90520-01002	Ring, Shaft Snap(For Vent Window Control)
69260	90520-01274	Ring, Shaft Snap(For Front Door Window Regulator Handle)
69272	69268-16010	Plate, Window Regulator Handle
69272	69285-22010-08	Escutcheon, Window Regulator Handle
69801	69810-12180	Regulator Sub-Assy, Front Door Window, Rh
69801	69810-12250	Regulator Sub-Assy, Front Door Window, Rh
69802	69820-12170	Regulator Sub-Assy, Front Door Window, Lh
69802	69820-12250	Regulator Sub-Assy, Front Door Window, Lh
69901	69901-12160	Channel Sub-Assy, Front Door Glass, Rh
69901	69901-12161	Channel Sub-Assy, Front Door Glass, Rh
69901	69901-12162	Channel Sub-Assy, Front Door Glass, Rh
69902	69902-12100	Channel Sub-Assy, Front Door Glass, Lh
69902	69902-12101	Channel Sub-Assy, Front Door Glass, Lh
69902	69902-12102	Channel Sub-Assy, Front Door Glass, Lh
69971	69971-12040	Filler, Front Door Glass Channel
69971	69971-60020	Filler, Front Door Glass Channel
69971	69971-12070	Filler, Front Door Glass Channel
9010508077	90105-08077	BOLT
9011908093	90119-08093	BOLT
9016850024	90168-50024	New Genuine Part
9016850024	90168-50013	SCREW
9151160610	91511-60610	New Genuine Part
9151160610	91511-B0610	BOLT FLANGE
9165140610	91651-40610	RIVET

OEM	Part name	Category
68710-12090	Hinge Assy, Front Door, Upper Rh	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
68720-12090	Hinge Assy, Front Door, Upper Lh	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
68730-24010	Hinge Assy, Front Door, Lower Rh	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
68730-60020	Hinge Assy, Front Door, Lower Rh	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
68740-24010	Hinge Assy, Front Door, Lower Lh	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
68740-60020	Hinge Assy, Front Door, Lower Lh	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69260-10040-10	Handle Assy, Front Door Window Regulator	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69260-10040-33	Handle Assy, Front Door Window Regulator	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69260-10040-P0	Handle Assy, Front Door Window Regulator	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69260-14020-01	Handle Assy, Front Door Window Regulator	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69260-14020-33	Handle Assy, Front Door Window Regulator	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69260-14020-36	Handle Assy, Front Door Window Regulator	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69260-22030-23	Handle Assy, Front Door Window Regulator	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69268-16010	Plate, Window Regulator Handle	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69285-22010-08	Escutcheon, Window Regulator Handle	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69810-12180	Regulator Sub-Assy, Front Door Window, Rh	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69810-12250	Regulator Sub-Assy, Front Door Window, Rh	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69820-12170	Regulator Sub-Assy, Front Door Window, Lh	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69820-12250	Regulator Sub-Assy, Front Door Window, Lh	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69901-12160	Channel Sub-Assy, Front Door Glass, Rh	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69901-12161	Channel Sub-Assy, Front Door Glass, Rh	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69901-12162	Channel Sub-Assy, Front Door Glass, Rh	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69902-12100	Channel Sub-Assy, Front Door Glass, Lh	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69902-12101	Channel Sub-Assy, Front Door Glass, Lh	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69902-12102	Channel Sub-Assy, Front Door Glass, Lh	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69971-12040	Filler, Front Door Glass Channel	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69971-12070	Filler, Front Door Glass Channel	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
69971-60020	Filler, Front Door Glass Channel	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
90105-08077	BOLT	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
90119-08093	BOLT	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
90168-50013	SCREW	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
90168-50024	New Genuine Part	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
90520-01002	Ring, Shaft Snap(For Vent Window Control)	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
90520-01274	Ring, Shaft Snap(For Front Door Window Regulator Handle)	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
91511-60610	New Genuine Part	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
91511-B0610	BOLT FLANGE	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
91651-40610	RIVET	Front Door Window Regulator & Hinge ([05.1983 - ] (8305- )4DS,5D,5DS)
