Search › Model › AE80

AE80

Toyota COROLLA · 1983 · 3,396 parts · 187 categories
AE80 ×

← Back to categories

3,396 items

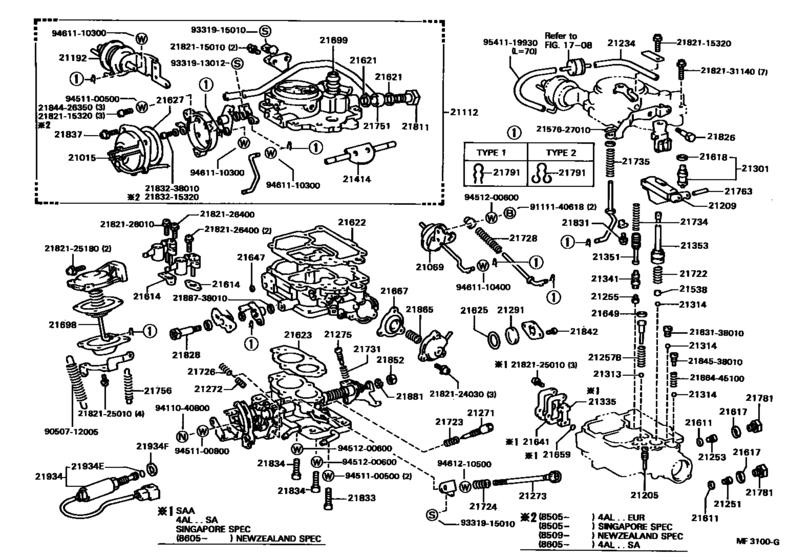

Carburetor ([11.1984 - 11.1985] ..NEW ZEALAND SPEC (8305- )2AL,4AL#..EUG,SDZ ; (8401-8505)2AL..S AA ; (8402- )4AL..GEN,SA ; (8402 - )2AL,4AGEL.. GEN ; (8411-8511)2ALC,4ALC..ARL ; (8509- )4AL) 118
#OEMPart name
21015 21015-15050 Housing Sub-Assy, Coil
21015 21015-16140 Housing Sub-Assy, Coil
21069 21069-15290 Dash Pot Sub-Assy
21112 21112-14130 Horn, Air
21112 21112-14131 Horn, Air
21112 21112-16240 Horn, Air
21192 21192-14130 Breaker
21205 21205-27040 Jet Sub-Assy, Slow
21205 21205-31430 Jet Sub-Assy, Slow
21209 21209-15020 Float Sub-Assy
21234 21249-13090 Pipe Or Hose
21234 90999-92002 Air Hose (300 mm)
21251 90999-41105 Jet, 1St Main
21253 90999-42153 Jet, 2Nd Main
21255 90999-43047 Jet, Power
21257 21864-26020 Spring(For Pump Jet)
21271 21271-15160 Screw, Idle Adjusting
21271 21271-15230 Screw, Idle Adjusting
21272 21828-25180 Screw, 1St Idle Adjusting
21273 21273-14130 Screw, Throttle Adjusting
21275 21842-28090 Screw, Adjusting
21291 21291-34320 Glass, Level Gage
21301 21301-15160 Valve Sub-Assy, Needle
21313 21313-11020 Ball, Steel, No.1(For Discharge Weight)
21314 21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)
21341 21304-30010 Valve, Power
21351 21351-33080 Piston, Power
21353 21353-33010 Plunger, Pump
21353 21353-16510 Plunger, Pump
21414 21054-15050 Shaft, Choke
21538 21538-31010 Retainer, Ball Check
21611 21611-22010 Gasket, Main Jet
21614 21614-33010 Gasket, Venturi
21614 21614-16280 Gasket, Venturi
21614 21614-33080 Gasket, Venturi
21614 21615-16280 Gasket, Venturi
21617 21617-30010 Gasket, Main Passage Plug
21618 21618-14010 Gasket, Needle Valve Seat
21621 21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt
21622 21622-15330 Gasket, Air Horn
21622 21622-16440 Gasket, Air Horn
21622 21622-16090 Gasket, Air Horn
21622 21622-16280 Gasket, Air Horn
21623 21623-25180 Gasket, Body Flange
21623 21623-16280 Gasket, Body Flange
21625 21655-60200 Gasket, Level Gage
21627 21627-28090 Gasket, Coil Housing
21627 21627-28150 Gasket, Coil Housing
21647 21649-33080 Gasket, Diaphragm Housing Cap
21649 21641-33011 Gasket(For Pump Discharge Weight Stopper)
21667 21667-38310 Diaphragm
21667 21675-35510 Diaphragm
21667 21667-72080 Diaphragm
21698 21669-15320 Diaphragm
21699 21699-28150 Boot(For Pump Plunger)
21722 21722-22010 Spring, Pump Damping
21723 21723-15160 Spring, Idle Adjusting
21723 21723-21030 Spring, Idle Adjusting
21724 21723-14130 Spring, Throttle Adjusting
21728 21756-25181 Spring, Throttle Valve Return
21734 21734-22010 Spring, Power Piston
21735 21735-15270 Spring, Pump Arm
21751 21894-15081 Union, Nipple
21756 21756-15080 Spring, Back(For Throttle Shaft)
21763 21763-26350 Pin, Float Lever
21781 21781-15230 Plug, Main Passage(For Carburetor Jet)
21791 21791-13010 Ring, Snap, No.1(For Carburetor Link)
21791 21791-60010 Ring, Snap, No.1(For Carburetor Link)
21811 21811-11060 Bolt, Union Nipple
21826 21826-31012 Screw, Pump Arm Set
21828 21845-15230 Screw, 1St Idle Set
21828 90079-12002 Screw, 1St Idle Set
21831 21821-15060 Screw, 2Nd Throttle Valve Set
21833 21833-33010 Screw, Set, No.1(For Carburetor Body Set)
21834 21834-31140 Screw, Set, No.2(For Carburetor Body Set)
21834 21844-26400 Screw, Set(For 1St Idle Cam Follower Set)
21837 21821-25010 Screw, Coil Housing Set
21842 21842-33010 Screw, Power Piston Stop
21852 21852-30010 Nut, Throttle Lever Set
21865 21865-15230 Spring
21881 21881-60010 Washer, Lock(For Throttle Shaft)
21934 21062-14131 Solenoid, Throttle Valve
21934 21062-16190 Solenoid, Throttle Valve
21934 21062-16240 Solenoid, Throttle Valve
21934 21072-16121 Solenoid, Throttle Valve
21934 21062-16160 Solenoid, Throttle Valve
21934 21655-44101 Ring, O(For Lifter Rod)
21934 21649-38010 Gasket
2157627010 21576-27010 Clip, Pump Strainer
2182115010 21821-15010 Screw(For Choke Lever Adapter Set)
2182115320 21821-15320 Screw, 2nd Throttle Valve Set
2182124030 21821-24030 Screw(For Vacuum Lock Diaphragm Ring Set)
2182125180 21821-25180 Screw, Set, No.2(For Carburetor Body Set)
2182126400 21821-26400 Screw, 2nd Throttle Valve Set
2182128010 21821-28010 Screw, 2nd Throttle Valve Set
2182131140 21821-31140 Screw(For 2Nd Regulator Cover Set)
2183138010 21831-38010 Screw, Power Piston Stop
2183215320 21832-15320 Screw(For Choke Lever Adapter Set)
2183238010 21832-38010 Screw, Thermostat Case Set
2184426350 21844-26350 Screw, Thermostat Case Set
2184538010 21845-38010 Screw, 1St Idle Set
2186445100 21864-45100 Spring(For Pump Jet)
2188738010 21887-38010 New Genuine Part
2188738010 21885-38310 New Genuine Part
9050712005 90507-12005 New Genuine Part
9111140618 91111-40618 New Genuine Part
9111140618 91111-50618 New Genuine Part
9331913012 93319-13012 New Genuine Part
9331915010 93319-15010 SCREW
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9451100500 94511-00500 Washer, Cover Set, No.2
9451100800 94511-00800 WASHERSPRING
9451200600 94512-00600 Washer, Seal(For Head Cover Set)
9461110300 94611-10300 New Genuine Part
9461110400 94611-10400 New Genuine Part
9461210500 94612-10500 WASHERPLATE
9541119930 95411-19930 Hose(For Carburetor To Manifold)
