Search › Model › AE80
AE80

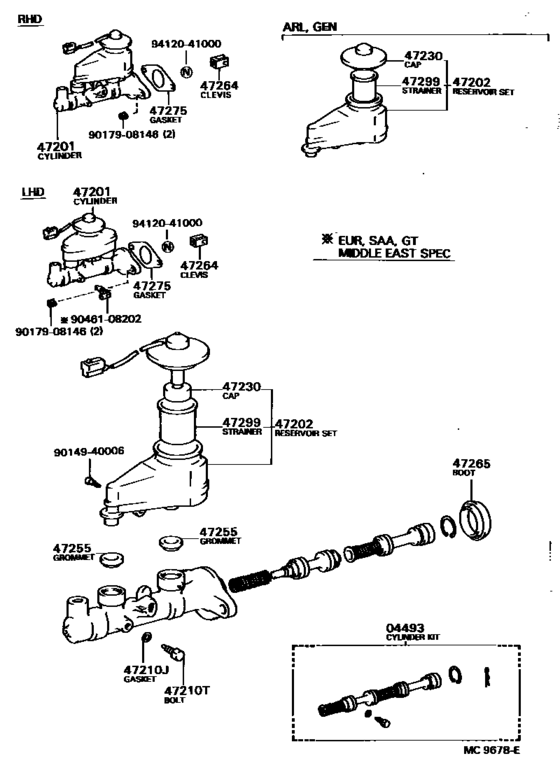

Brake Master Cylinder ([05.1983 - ] (8305- )) 9
| # | OEM | Part name |
|---|---|---|
| 47202 | 47202-12350 | Reservoir Sub-Assy, Brake Master Cylinder |
| 47230 | 47230-12040 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47299 | 47299-32010 | Strainer, Brake Master Cylinder Reservoir |
| 9014940006 | 90149-40006 | Bolt |
| 9017908146 | 90179-08146 | Nut |
| 9017908146 | 90179-08204 | Nut |
| 9046108202 | 90461-08202 | Clamp(For Brake Master Cylinder) |
| 9412041000 | 94120-41000 | Nut(For Clutch Pedal Stopper) |
| 9412041000 | 90170-A0002 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 47202-12350 | Reservoir Sub-Assy, Brake Master Cylinder | Brake Master Cylinder ([05.1983 - ] (8305- )) |
| 47230-12040 | Cap Assy, Brake Master Cylinder Reservoir Filler | Brake Master Cylinder ([05.1983 - ] (8305- )) |
| 47299-32010 | Strainer, Brake Master Cylinder Reservoir | Brake Master Cylinder ([05.1983 - ] (8305- )) |
| 90149-40006 | Bolt | Brake Master Cylinder ([05.1983 - ] (8305- )) |
| 90170-A0002 | Nut | Brake Master Cylinder ([05.1983 - ] (8305- )) |
| 90179-08146 | Nut | Brake Master Cylinder ([05.1983 - ] (8305- )) |
| 90179-08204 | Nut | Brake Master Cylinder ([05.1983 - ] (8305- )) |
| 90461-08202 | Clamp(For Brake Master Cylinder) | Brake Master Cylinder ([05.1983 - ] (8305- )) |
| 94120-41000 | Nut(For Clutch Pedal Stopper) | Brake Master Cylinder ([05.1983 - ] (8305- )) |
