Search › Model › AE71

AE71

Toyota COROLLA · 1982 · 4,173 parts · 195 categories
AE71 ×

← Back to categories

4,173 items

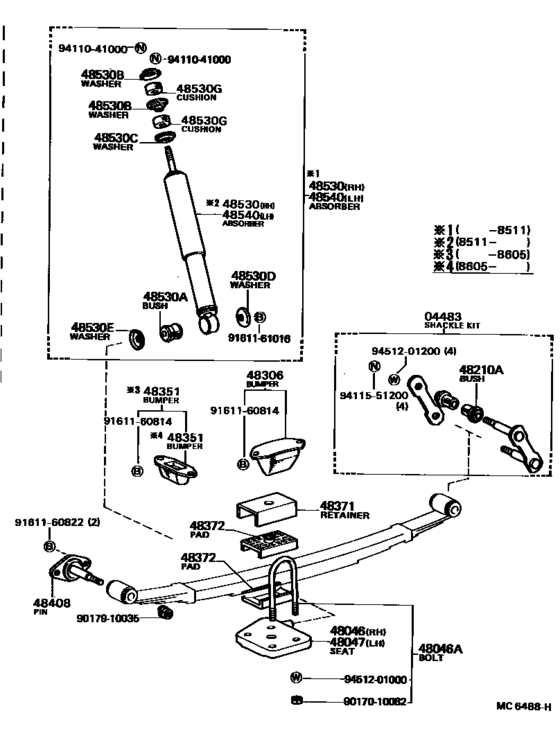

Rear Spring & Shock Absorber ([08.1979 - ] (7908- )DV,WG) 61
#OEMPart name
4483 04483-20020 Shackle Kit, Rear Spring
48046 48046-13060 Seat Sub-Assy, Spring U Bolt, Rh
48046 90118-10183 Bolt, U(For Rear Spring)
48046 90117-10010 Bolt, U(For Rear Spring)
48047 48047-13060 Seat Sub-Assy, Spring U Bolt, Lh
48210 90385-15070 Bush(For Rear Spring Shackle Upper)
48210 90389-12001 Bush(For Rear Spring Leaf)
48210 90389-14001 Bush(For Rear Spring Leaf)
48220 48210-13180 Spring Assy, Rear Rh
48241 48241-13051 Clip, Rear Spring, No.1
48241 48242-13160 Clip, Rear Spring, No.1
48242 48243-13050 Clip, Rear Spring, No.2
48242 48244-13160 Clip, Rear Spring, No.2
48243 48242-13011 Clip, Rear Spring, No.3
48243 48243-13160 Clip, Rear Spring, No.3
48247 48247-13160 Bolt, Rear Spring, Center
48247 48247-20130 Bolt, Rear Spring, Center
48252 48252-21150 Silencer, Rear Spring
48252 48252-22020 Silencer, Rear Spring
48253 48253-20100 Spacer, Rear Spring, No.1
48253 48254-10050 Spacer, Rear Spring, No.1
48306 48341-19035 Bumper Sub-Assy, Rear Spring
48306 48341-19025 Bumper Sub-Assy, Rear Spring
48351 48351-12020 Bumper, Differential Carrier
48351 48351-19025 Bumper, Differential Carrier
48371 48371-13070 Retainer, Rear Spring Pad
48372 48372-22010 Pad, Rear Spring
48408 48409-11020 Pin Sub-Assy, Spring Bracket
48530 48531-12260 Absorber Assy, Shock, Rear Rh
48530 48531-19667 Absorber Assy, Shock, Rear Rh
48530 48531-19666 Absorber Assy, Shock, Rear Rh
48530 90385-16001 Bush(For Shock Absorber)
48530 90385-16004 Cushion, Front Shock Absorber
48530 90948-02002 Retainer, Steering Damper Cushion
48530 90948-02007 Retainer, Steering Damper Cushion
48530 90948-03012 Washer, Front Shock Absorber Cushion, No.1
48530 90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)
48530 90948-01003 Rubber Cushion
48530 48531-13111 Absorber Assy, Shock, Rear Rh
48530 48531-19647 Absorber Assy, Shock, Rear Rh
48530 48531-19646 Absorber Assy, Shock, Rear Rh
9017010082 90170-10082 Nut, Hexagon (For Control Rod Setting)
9017910035 90179-10035 New Genuine Part
9099990211 90999-90211 New Genuine Part
9161160814 91611-60814 Bolt
9161160822 91611-60822 Bolt
9161161016 91611-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161161016 91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9411041000 94110-41000 Nut(For Steering Damper)
9411050800 94110-50800 Nut(For Repair Actuator Set)
9411551200 94115-51200 Nut(For Backing Plate To Steering Knuckle Setting)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201200 94512-01200 Washer
9511100612 95111-00612 New Genuine Part
9511100814 95111-00814 New Genuine Part
9511100816 95111-00816 New Genuine Part
9511100818 95111-00818 New Genuine Part
9511100819 95111-00819 New Genuine Part
9511100820 95111-00820 New Genuine Part
