Search › Model › AE71

AE71

Toyota COROLLA · 1982 · 4,173 parts · 195 categories

4,173 items

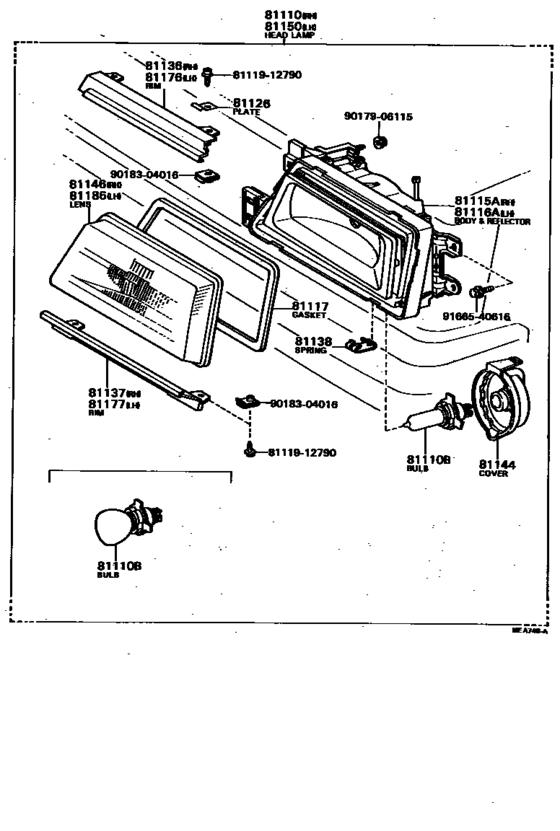

Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD) 46

#	OEM	Part name
81110	81110-80166	Headlamp Assy, Rh
81110	90981-13015	Bulb(For Headlamp, No.1)
81110	90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)
81110	81110-80335	Headlamp Assy, Rh
81110	81110-80336	Headlamp Assy, Rh
81110	81110-80337	Headlamp Assy, Rh
81110	90981-13013	Bulb(For Headlamp, No.1)
81110	90981-13016	Bulb(For Headlamp, No.1)
81110	90981-13H01	Bulb(For Headlamp, No.1)
81115	81135-12800	Body And Reflector Sub-Assy, Headlamp, Rh
81115	81135-13010	Body And Reflector Sub-Assy, Headlamp, Rh
81115	81135-13030	Body And Reflector Sub-Assy, Headlamp, Rh
81115	81135-13040	Body And Reflector Sub-Assy, Headlamp, Rh
81116	81175-12730	Body And Reflector Sub-Assy, Headlamp, Lh
81116	81175-13010	Body And Reflector Sub-Assy, Headlamp, Lh
81116	81175-13030	Body And Reflector Sub-Assy, Headlamp, Lh
81116	81175-13040	Body And Reflector Sub-Assy, Headlamp, Lh
81117	81147-12800	Packing, Headlamp Housing
81126	81126-12790	Plate, Headlamp
81136	81137-12800	Protector, Headlamp, No.1 Rh
81136	81137-13040	Protector, Headlamp, No.1 Rh
81137	81138-12800	Protector, Headlamp, No.2 Rh
81137	81138-13040	Protector, Headlamp, No.2 Rh
81138	81138-20550	Spring, Headlamp
81144	81139-30490	Cover, Sealed Beam Unit
81146	81146-12800	Lens, Headlamp, Rh
81146	81146-13020	Lens, Headlamp, Rh
81146	81146-13040	Lens, Headlamp, Rh
81150	81150-80163	Headlamp Assy, Lh
81150	81150-80330	Headlamp Assy, Lh
81150	81150-80332	Headlamp Assy, Lh
81150	81150-80333	Headlamp Assy, Lh
81150	81150-80334	Headlamp Assy, Lh
81176	81177-12730	Protector, Headlamp, No.1 Lh
81176	81177-13040	Protector, Headlamp, No.1 Lh
81177	81178-12730	Protector, Headlamp, No.2 Lh
81177	81178-13040	Protector, Headlamp, No.2 Lh
81186	81186-12730	Lens, Headlamp, Lh
81186	81186-13020	Lens, Headlamp, Lh
81186	81186-13040	Lens, Headlamp, Lh
8111912790	81119-12790	Screw, Headlamp
9017906115	90179-06115	Nut (For Rear Wiper Arm Setting)
9018304016	90183-04016	Nut, Spring
9018304016	90183-04020	Nut, Spring
9166540616	91665-40616	Screw(For Steering Column Tube)
9166540616	90080-11247	New Genuine Part

OEM	Part name	Category
81110-80166	Headlamp Assy, Rh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81110-80335	Headlamp Assy, Rh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81110-80336	Headlamp Assy, Rh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81110-80337	Headlamp Assy, Rh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81119-12790	Screw, Headlamp	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81126-12790	Plate, Headlamp	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81135-12800	Body And Reflector Sub-Assy, Headlamp, Rh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81135-13010	Body And Reflector Sub-Assy, Headlamp, Rh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81135-13030	Body And Reflector Sub-Assy, Headlamp, Rh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81135-13040	Body And Reflector Sub-Assy, Headlamp, Rh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81137-12800	Protector, Headlamp, No.1 Rh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81137-13040	Protector, Headlamp, No.1 Rh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81138-12800	Protector, Headlamp, No.2 Rh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81138-13040	Protector, Headlamp, No.2 Rh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81138-20550	Spring, Headlamp	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81139-30490	Cover, Sealed Beam Unit	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81146-12800	Lens, Headlamp, Rh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81146-13020	Lens, Headlamp, Rh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81146-13040	Lens, Headlamp, Rh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81147-12800	Packing, Headlamp Housing	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81150-80163	Headlamp Assy, Lh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81150-80330	Headlamp Assy, Lh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81150-80332	Headlamp Assy, Lh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81150-80333	Headlamp Assy, Lh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81150-80334	Headlamp Assy, Lh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81175-12730	Body And Reflector Sub-Assy, Headlamp, Lh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81175-13010	Body And Reflector Sub-Assy, Headlamp, Lh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81175-13030	Body And Reflector Sub-Assy, Headlamp, Lh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81175-13040	Body And Reflector Sub-Assy, Headlamp, Lh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81177-12730	Protector, Headlamp, No.1 Lh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81177-13040	Protector, Headlamp, No.1 Lh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81178-12730	Protector, Headlamp, No.2 Lh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81178-13040	Protector, Headlamp, No.2 Lh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81186-12730	Lens, Headlamp, Lh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81186-13020	Lens, Headlamp, Lh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
81186-13040	Lens, Headlamp, Lh	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
90080-11247	New Genuine Part	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
90179-06115	Nut (For Rear Wiper Arm Setting)	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
90183-04016	Nut, Spring	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
90183-04020	Nut, Spring	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
90981-13013	Bulb(For Headlamp, No.1)	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
90981-13015	Bulb(For Headlamp, No.1)	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
90981-13016	Bulb(For Headlamp, No.1)	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
90981-13H01	Bulb(For Headlamp, No.1)	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
91665-40616	Screw(For Steering Column Tube)	Headlamp ([05.1983 - ] (8305- )KE70..4D..ARL ; (8305- )KE70,TE71. .DV,SED,WG..EUR,GEN,SA ; (8305- )AE71,CE70,TE72.. 3FC,4FC,5F..DX,GL,STD)
