Search › Model › AE71

AE71

Toyota COROLLA · 1982 · 4,173 parts · 195 categories

4,173 items

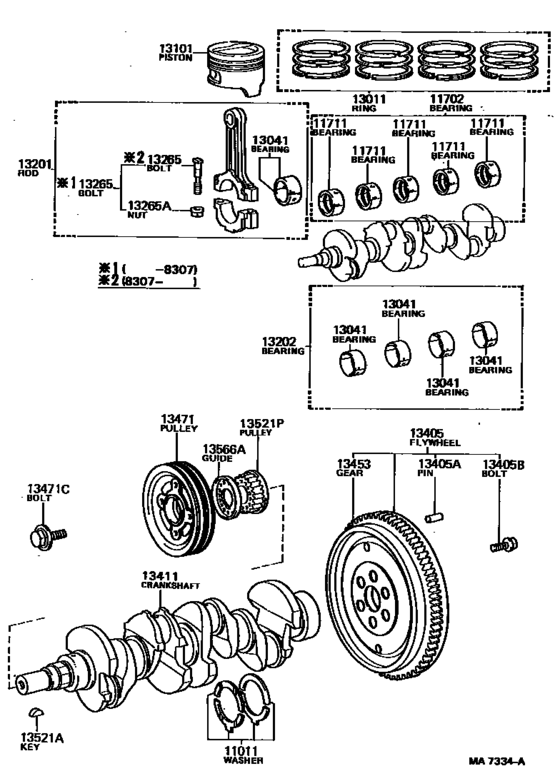

Crankshaft & Piston ([05.1983 - ] (8305- )4A#) 50

#	OEM	Part name
11011	11011-15010	Washer Set, Crankshaft Thrust
11011	11011-15021	Washer Set, Crankshaft Thrust
11702	11704-15050	Bearing Set, Crankshaft
11702	11704-16010	Bearing Set, Crankshaft
11711	11701-15050-01	Bearing, Crankshaft
11711	11701-16010-01	Bearing, Crankshaft
11711	11701-15050-02	Bearing, Crankshaft
11711	11701-16010-02	Bearing, Crankshaft
11711	11701-15050-03	Bearing, Crankshaft
11711	11701-16010-03	Bearing, Crankshaft
11711	11701-15050-04	Bearing, Crankshaft
11711	11701-16010-04	Bearing, Crankshaft
11711	11701-15050-05	Bearing, Crankshaft
11711	11701-16010-05	Bearing, Crankshaft
13011	13011-16031	Ring Set, Piston
13011	13011-16032	Ring Set, Piston
13011	13013-16031	Ring Set, Piston
13011	13013-16032	Ring Set, Piston
13041	13041-15030-01	Bearing, Connecting Rod
13041	13041-15031-01	Bearing, Connecting Rod
13041	13041-15030-02	Bearing, Connecting Rod
13041	13041-15031-02	Bearing, Connecting Rod
13041	13041-15030-03	Bearing, Connecting Rod
13041	13041-15031-03	Bearing, Connecting Rod
13101	13101-16010	Piston Sub-Assy, W/pin
13101	13101-16010-02	Piston Sub-Assy, W/pin
13101	13103-16010	Piston Sub-Assy, W/pin
13201	13201-19055	Rod Sub-Assy, Connecting
13201	13201-19056	Rod Sub-Assy, Connecting
13202	13204-15030	Bearing Set, Connecting Rod (0.25)
13202	13204-15031	Bearing Set, Connecting Rod (0.25)
13265	13265-15020	Bolt, Connecting Rod
13265	13265-16010	Bolt, Connecting Rod
13265	90170-09003	Nut, Hexagon(For Connecting Rod Bolt)
13265	90170-09001	Nut, Hexagon(For Connecting Rod Bolt)
13405	13405-19075	Flywheel Sub-Assy
13405	13405-15030	Flywheel Sub-Assy
13405	90250-08120	Pin, Straight, No.1
13405	90105-10042	Bolt, Flywheel Setting
13411	13411-15030	Crankshaft
13411	13411-15900	Crankshaft
13411	13411-15040	Crankshaft
13453	13453-10010	Gear, Flywheel Ring
13471	13407-15013	Pulley, Crankshaft
13471	13470-15050	Pulley, Crankshaft
13471	90105-12012	Bolt(For Crankshaft Pulley Set)
13471	90119-12101	Bolt(For Crankshaft Pulley Set)
13521	90280-05010	Key(For Oil Pump Drive Spline)
13521	13521-15010	Pulley, Crankshaft Timing
13566	13566-15010	Guide, Timing Belt

OEM	Part name	Category
11011-15010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
11011-15021	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
11701-15050-01	Bearing, Crankshaft	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
11701-15050-02	Bearing, Crankshaft	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
11701-15050-03	Bearing, Crankshaft	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
11701-15050-04	Bearing, Crankshaft	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
11701-15050-05	Bearing, Crankshaft	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
11701-16010-01	Bearing, Crankshaft	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
11701-16010-02	Bearing, Crankshaft	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
11701-16010-03	Bearing, Crankshaft	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
11701-16010-04	Bearing, Crankshaft	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
11701-16010-05	Bearing, Crankshaft	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
11704-15050	Bearing Set, Crankshaft	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
11704-16010	Bearing Set, Crankshaft	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13011-16031	Ring Set, Piston	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13011-16032	Ring Set, Piston	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13013-16031	Ring Set, Piston	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13013-16032	Ring Set, Piston	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13041-15030-01	Bearing, Connecting Rod	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13041-15030-02	Bearing, Connecting Rod	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13041-15030-03	Bearing, Connecting Rod	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13041-15031-01	Bearing, Connecting Rod	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13041-15031-02	Bearing, Connecting Rod	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13041-15031-03	Bearing, Connecting Rod	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13101-16010	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13101-16010-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13103-16010	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13201-19055	Rod Sub-Assy, Connecting	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13201-19056	Rod Sub-Assy, Connecting	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13204-15030	Bearing Set, Connecting Rod (0.25)	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13204-15031	Bearing Set, Connecting Rod (0.25)	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13265-15020	Bolt, Connecting Rod	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13265-16010	Bolt, Connecting Rod	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13405-15030	Flywheel Sub-Assy	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13405-19075	Flywheel Sub-Assy	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13407-15013	Pulley, Crankshaft	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13411-15030	Crankshaft	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13411-15040	Crankshaft	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13411-15900	Crankshaft	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13453-10010	Gear, Flywheel Ring	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13470-15050	Pulley, Crankshaft	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13521-15010	Pulley, Crankshaft Timing	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
13566-15010	Guide, Timing Belt	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
90105-10042	Bolt, Flywheel Setting	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
90105-12012	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
90119-12101	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
90170-09001	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
90170-09003	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
90250-08120	Pin, Straight, No.1	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
90280-05010	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([05.1983 - ] (8305- )4A#)
