Search › Model › AE71

AE71

Toyota COROLLA · 1982 · 4,173 parts · 195 categories

4,173 items

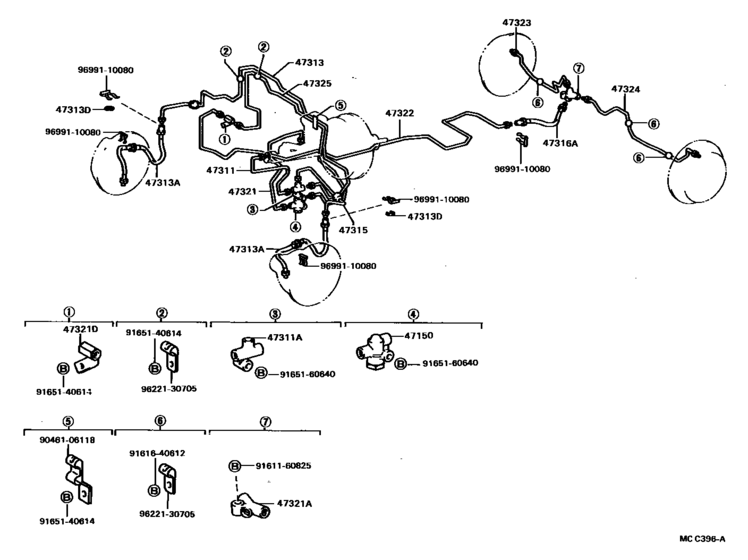

Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN) 27

#	OEM	Part name
47150	47150-12041	Valve Assy, Proportioning
47311	47312-12120	Tube, Front Brake, No.1
47311	90413-10002	Way(For Front Brake Tube)
47313	47314-12181	Tube, Front Brake, No.3
47313	90947-02393	Hose, Flexible, No.1(For Front)
47313	90947-02476	Hose, Flexible, No.1(For Front)
47313	96160-01200	Ring, E(For Clutch Release Cable)
47315	47315-12320	Tube, Front Brake, No.4 - FRONT BRAKE, NO.5
47316	90947-02409	Hose, Flexible(For Rear Brake Tube)
47316	90947-02724	Hose, Flexible(For Rear Brake Tube)
47321	47322-12100	Tube, Rear Brake, No.1
47321	90413-10029	Way, No.2(For Rear Brake Tube)
47321	90412-10001	Way, No.1(For Rear Brake Tube)
47322	47323-13060	Tube, Rear Brake, No.2
47323	47324-13040	Tube, Rear Brake, No.3
47324	47325-13060	Tube, Rear Brake, No.4
47325	47326-12010	Tube, Rear Brake, No.5
9046106118	90461-06118	New Genuine Part
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9161640612	91616-40612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161640612	91611-G0612	Bolt
9165140614	91651-40614	Bolt
9165160640	91651-60640	Bolt, Rear Body Mounting
9165160640	91651-B0640	Bolt, Rear Body Mounting
9622130705	96221-30705	Clamp, Brake Tube, No.4
9699110080	96991-10080	CLIP

OEM	Part name	Category
47150-12041	Valve Assy, Proportioning	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
47312-12120	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
47314-12181	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
47315-12320	Tube, Front Brake, No.4 - FRONT BRAKE, NO.5	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
47322-12100	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
47323-13060	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
47324-13040	Tube, Rear Brake, No.3	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
47325-13060	Tube, Rear Brake, No.4	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
47326-12010	Tube, Rear Brake, No.5	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
90412-10001	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
90413-10002	Way(For Front Brake Tube)	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
90413-10029	Way, No.2(For Rear Brake Tube)	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
90461-06118	New Genuine Part	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
90947-02393	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
90947-02409	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
90947-02476	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
90947-02724	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
91611-G0612	Bolt	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
91616-40612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
91651-40614	Bolt	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
91651-60640	Bolt, Rear Body Mounting	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
91651-B0640	Bolt, Rear Body Mounting	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
96160-01200	Ring, E(For Clutch Release Cable)	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
96221-30705	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
96991-10080	CLIP	Brake Tube & Clamp ([08.1985 - ] (8508- )AE71..GEN)
