Search › Model › AE70

AE70

Toyota COROLLA · 1979 · 4,680 parts · 174 categories

4,680 items

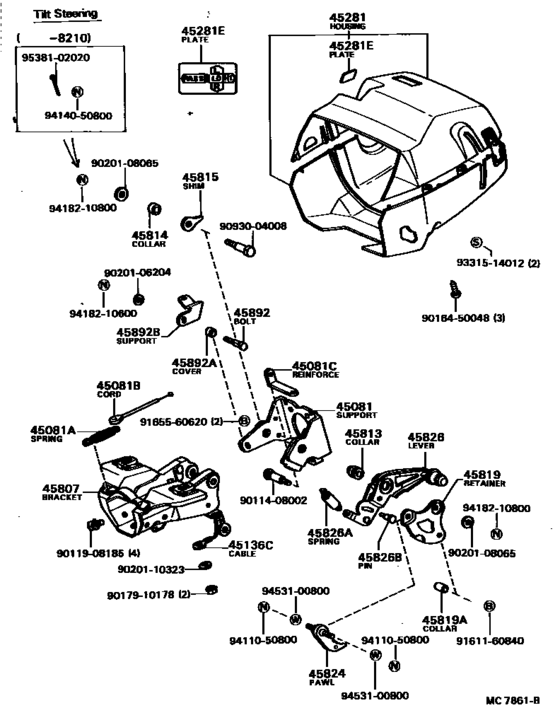

Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX) 62

#	OEM	Part name
45081	45081-22020	Support Sub-Assy, Tilt Steering
45081	90506-23009	Spring, Tension(For Tilt Steering)
45081	90945-02034	Cord(For Tilt Steering)
45081	45821-22010	Reinforce, Tilt Steering Support
45136	90980-07129	Cable, Bond(For Horn Earth)
45136	90980-07195	Cable, Bond(For Horn Earth)
45281	45286-12100-01	Housing, Steering Column
45281	45286-12100-11	Housing, Steering Column
45281	45286-12923-01	Housing, Steering Column
45281	45286-27900-01	Housing, Steering Column
45281	45286-12923-04	Housing, Steering Column
45281	45286-12923-06	Housing, Steering Column
45281	45286-12926-01	Housing, Steering Column
45281	45286-12926-04	Housing, Steering Column
45281	45286-12926-06	Housing, Steering Column
45281	45287-12080-01	Housing, Steering Column
45281	45287-12080-11	Housing, Steering Column
45281	45283-12010	Plate, Safety Caution
45807	45082-12010	Bracket Sub-Assy, Steering Column Upper Support
45807	45807-12090	Bracket Sub-Assy, Steering Column Upper Support
45807	45807-12110	Bracket Sub-Assy, Steering Column Upper Support
45813	45813-22010	Collar, Tilt Steering Support, No.1
45813	45813-22020	Collar, Tilt Steering Support, No.1
45813	45813-22030	Collar, Tilt Steering Support, No.1
45813	45813-22040	Collar, Tilt Steering Support, No.1
45813	45813-22050	Collar, Tilt Steering Support, No.1
45814	45814-22010	Collar, Tilt Steering Support, No.2
45814	45814-22020	Collar, Tilt Steering Support, No.2
45815	45815-22060	Shim, Tilt Steering Support
45815	45815-22070	Shim, Tilt Steering Support
45815	45815-22080	Shim, Tilt Steering Support
45815	45815-22090	Shim, Tilt Steering Support
45815	45815-22100	Shim, Tilt Steering Support
45819	45819-22011	Retainer, Tilt Lever
45819	90387-08002	Collar(For Tilt Lever Retainer)
45824	45890-22050	Pawl, Tilt Steering
45826	45804-22010	Lever Sub-Assy, Steering Tilt
45826	90507-14001	Spring, Tension(For Steering Tilt Lever)
45826	72538-12010	Pin(For Steering Tilt Lever)
45892	45898-22010	Bolt, Tilt Steering Support Stopper
45892	45899-22020	Cover, Tilt Steering Support Stopper
45892	45289-12010	Support, Tilt Steering Column Cover
9011408002	90114-08002	New Genuine Part
9011908185	90119-08185	New Genuine Part
9011908185	90119-08165	New Genuine Part
9016450048	90164-50048	SCREW
9017910178	90179-10178	New Genuine Part
9020106204	90201-06204	Washer, Plate(For Steering Tilt Lever)
9020108065	90201-08065	Washer, Plate(For Control Select Lever)
9020110323	90201-10323	New Genuine Part
9093004008	90930-04008	New Genuine Part
9093004008	90109-08112	New Genuine Part
9093004008	94182-10800	Nut
9161160840	91611-60840	BOLT
9165560620	91655-60620	New Genuine Part
9165560620	91651-60616	BOLT
9331514012	93315-14012	Screw with washer
9411050800	94110-50800	Nut(For Repair Actuator Set)
9414050800	94140-50800	New Genuine Part
9418210600	94182-10600	Nut, Tilt Steering Adjusting, No.1
9453100800	94531-00800	Washer (For Transfer Shift Outer Lever)
9538102020	95381-02020	PIN

OEM	Part name	Category
45081-22020	Support Sub-Assy, Tilt Steering	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45082-12010	Bracket Sub-Assy, Steering Column Upper Support	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45283-12010	Plate, Safety Caution	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45286-12100-01	Housing, Steering Column	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45286-12100-11	Housing, Steering Column	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45286-12923-01	Housing, Steering Column	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45286-12923-04	Housing, Steering Column	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45286-12923-06	Housing, Steering Column	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45286-12926-01	Housing, Steering Column	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45286-12926-04	Housing, Steering Column	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45286-12926-06	Housing, Steering Column	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45286-27900-01	Housing, Steering Column	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45287-12080-01	Housing, Steering Column	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45287-12080-11	Housing, Steering Column	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45289-12010	Support, Tilt Steering Column Cover	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45804-22010	Lever Sub-Assy, Steering Tilt	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45807-12090	Bracket Sub-Assy, Steering Column Upper Support	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45807-12110	Bracket Sub-Assy, Steering Column Upper Support	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45813-22010	Collar, Tilt Steering Support, No.1	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45813-22020	Collar, Tilt Steering Support, No.1	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45813-22030	Collar, Tilt Steering Support, No.1	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45813-22040	Collar, Tilt Steering Support, No.1	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45813-22050	Collar, Tilt Steering Support, No.1	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45814-22010	Collar, Tilt Steering Support, No.2	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45814-22020	Collar, Tilt Steering Support, No.2	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45815-22060	Shim, Tilt Steering Support	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45815-22070	Shim, Tilt Steering Support	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45815-22080	Shim, Tilt Steering Support	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45815-22090	Shim, Tilt Steering Support	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45815-22100	Shim, Tilt Steering Support	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45819-22011	Retainer, Tilt Lever	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45821-22010	Reinforce, Tilt Steering Support	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45890-22050	Pawl, Tilt Steering	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45898-22010	Bolt, Tilt Steering Support Stopper	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
45899-22020	Cover, Tilt Steering Support Stopper	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
72538-12010	Pin(For Steering Tilt Lever)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
90109-08112	New Genuine Part	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
90114-08002	New Genuine Part	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
90119-08165	New Genuine Part	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
90119-08185	New Genuine Part	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
90164-50048	SCREW	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
90179-10178	New Genuine Part	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
90201-06204	Washer, Plate(For Steering Tilt Lever)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
90201-08065	Washer, Plate(For Control Select Lever)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
90201-10323	New Genuine Part	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
90387-08002	Collar(For Tilt Lever Retainer)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
90506-23009	Spring, Tension(For Tilt Steering)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
90507-14001	Spring, Tension(For Steering Tilt Lever)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
90930-04008	New Genuine Part	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
90945-02034	Cord(For Tilt Steering)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
90980-07129	Cable, Bond(For Horn Earth)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
90980-07195	Cable, Bond(For Horn Earth)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
91611-60840	BOLT	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
91651-60616	BOLT	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
91655-60620	New Genuine Part	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
93315-14012	Screw with washer	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
94110-50800	Nut(For Repair Actuator Set)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
94140-50800	New Genuine Part	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
94182-10600	Nut, Tilt Steering Adjusting, No.1	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
94182-10800	Nut	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
94531-00800	Washer (For Transfer Shift Outer Lever)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
95381-02020	PIN	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)KE70..CP,HT,LB ; (8108-8304)KE70..DX, GL,SE..4D ; (8108-8304)AE70,CE70,TE 71..DX,GL,GT,LVN, LVS,SE,SR,SX)
