AE70

Toyota COROLLA · 1979 · 4,680 parts · 174 categories

4,680 items

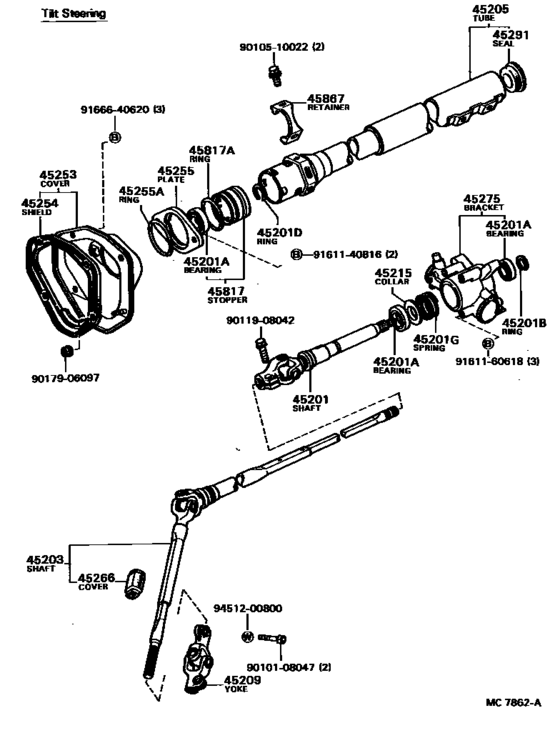

Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D) 54

#	OEM	Part name
45201	45210-12070	Shaft Sub-Assy, Steering Main
45201	45210-12100	Shaft Sub-Assy, Steering Main
45201	45210-12170	Shaft Sub-Assy, Steering Main
45201	45210-22050	Shaft Sub-Assy, Steering Main
45201	90363-18001	Bearing(For Steering Main Shaft)
45201	90363-18038	Bearing(For Steering Main Shaft)
45201	90363-28001	Bearing(For Steering Main Shaft)
45201	90363-30007	Bearing(For Steering Main Shaft)
45201	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45201	90520-17196	Ring, Shaft Snap(For Steering Main Shaft)
45201	96152-00300	Ring, Hole Snap (For Differential Side Gear Shaft)
45201	90501-45011	Spring, Compression(For Steering Main Shaft)
45203	45220-12060	Shaft Sub-Assy, Steering Intermediate, No.2
45203	45220-12070	Shaft Sub-Assy, Steering Intermediate, No.2
45205	45870-12070	Tube Sub-Assy, Steering Column
45205	45870-12100	Tube Sub-Assy, Steering Column
45205	45870-12120	Tube Sub-Assy, Steering Column
45209	45209-12030	Yoke Sub-Assy, Steering Sliding
45209	45209-14030	Yoke Sub-Assy, Steering Sliding
45215	45215-22011	Collar, Main Shaft Bearing Thrust
45253	45025-12030	Cover, Steering Column Hole
45253	45025-12050	Cover, Steering Column Hole
45253	45025-12090	Cover, Steering Column Hole
45254	45254-12020	Shield, Steering Column Hole
45254	45254-12030	Shield, Steering Column Hole
45255	45255-12020	Plate, Steering Column Hole Cover
45255	45255-12030	Plate, Steering Column Hole Cover
45255	90301-45202	Grommet Or Ring, O(For Steering Column Clamp)
45255	90301-60122	Grommet Or Ring, O(For Steering Column Clamp)
45266	45266-12020	Cover, Steering Intermediate Shaft Dust
45275	45020-12130	Bracket, Steering Column, Upper
45275	45280-12060	Bracket, Steering Column, Upper
45275	84450-12060	Switch Assy, Ignition Or Starter
45275	93319-14012	New Genuine Part
45275	45280-12020	Bracket, Steering Column, Upper
45275	45280-12021	Bracket, Steering Column, Upper
45291	45282-22010	Seal, Main Shaft Upper Dust
45817	45808-12020	Stopper, Steering Shaft Thrust
45817	45808-12030	Stopper Sub-Assy, Steering Shaft Thrust
45817	96711-24053	Ring, O(For Hydraulic Cylinder Body)
45867	45867-12010	Retainer, Steering Main Shaft Stopper
9010108047	90101-08047	Bolt, Hexagon(For Steering Sliding Yoke Set)
9010108047	90119-08560	Bolt, Hexagon
9010510022	90105-10022	BOLT
9010510022	90105-10082	New Genuine Part
9011908042	90119-08042	Bolt(For Power Steering Pressure Control Valve)
9017906097	90179-06097	Clip(For Front Bumper), No.1
9017906097	90179-06206	Nut
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9161160618	91611-60618	Bolt(For Oil Receiver Pipe)
9166640620	91666-40620	New Genuine Part
9166640620	91661-60616	BOLT
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
45020-12130	Bracket, Steering Column, Upper	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45025-12030	Cover, Steering Column Hole	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45025-12050	Cover, Steering Column Hole	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45025-12090	Cover, Steering Column Hole	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45209-12030	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45209-14030	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45210-12070	Shaft Sub-Assy, Steering Main	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45210-12100	Shaft Sub-Assy, Steering Main	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45210-12170	Shaft Sub-Assy, Steering Main	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45210-22050	Shaft Sub-Assy, Steering Main	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45215-22011	Collar, Main Shaft Bearing Thrust	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45220-12060	Shaft Sub-Assy, Steering Intermediate, No.2	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45220-12070	Shaft Sub-Assy, Steering Intermediate, No.2	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45254-12020	Shield, Steering Column Hole	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45254-12030	Shield, Steering Column Hole	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45255-12020	Plate, Steering Column Hole Cover	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45255-12030	Plate, Steering Column Hole Cover	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45266-12020	Cover, Steering Intermediate Shaft Dust	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45280-12020	Bracket, Steering Column, Upper	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45280-12021	Bracket, Steering Column, Upper	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45280-12060	Bracket, Steering Column, Upper	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45282-22010	Seal, Main Shaft Upper Dust	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45808-12020	Stopper, Steering Shaft Thrust	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45808-12030	Stopper Sub-Assy, Steering Shaft Thrust	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45867-12010	Retainer, Steering Main Shaft Stopper	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45870-12070	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45870-12100	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
45870-12120	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
84450-12060	Switch Assy, Ignition Or Starter	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
90101-08047	Bolt, Hexagon(For Steering Sliding Yoke Set)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
90105-10022	BOLT	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
90105-10082	New Genuine Part	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
90119-08042	Bolt(For Power Steering Pressure Control Valve)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
90179-06097	Clip(For Front Bumper), No.1	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
90179-06206	Nut	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
90301-45202	Grommet Or Ring, O(For Steering Column Clamp)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
90301-60122	Grommet Or Ring, O(For Steering Column Clamp)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
90363-18001	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
90363-18038	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
90363-28001	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
90363-30007	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
90501-45011	Spring, Compression(For Steering Main Shaft)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
90520-17196	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
91611-60618	Bolt(For Oil Receiver Pipe)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
91611-B0816	Bolt	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
91661-60616	BOLT	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
91666-40620	New Genuine Part	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
93319-14012	New Genuine Part	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
96152-00300	Ring, Hole Snap (For Differential Side Gear Shaft)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
96711-24053	Ring, O(For Hydraulic Cylinder Body)	Steering Column & Shaft ([08.1981 - 04.1983] (8108-8304)AE70 ; (8108-8304)KE70..CP,HT,LB ; (8 108-8304)KE70..DX,GL,SE..4D)
