AE70

Toyota COROLLA · 1979 · 4,680 parts · 174 categories

4,680 items

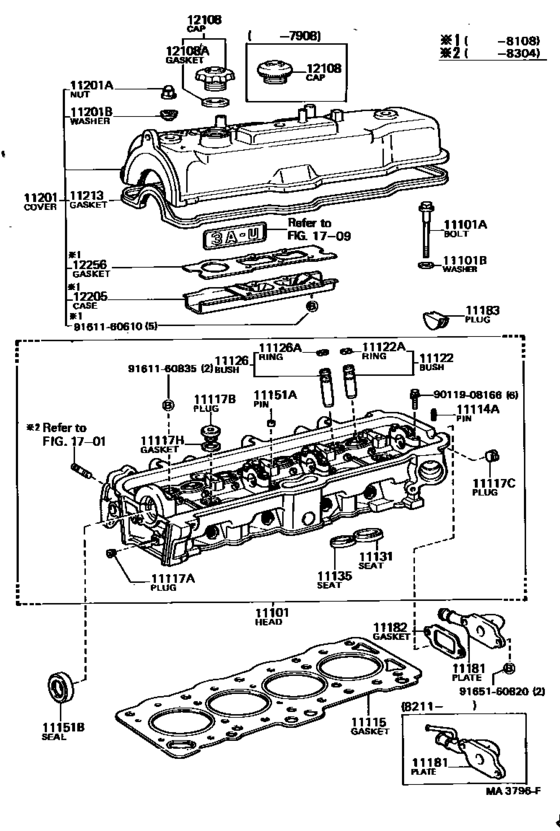

Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU) 61

#	OEM	Part name
11101	11101-15021	Head Sub-Assy, Cylinder
11101	11101-15031	Head Sub-Assy, Cylinder
11101	11101-19125	Head Sub-Assy, Cylinder
11101	11101-15020	Head Sub-Assy, Cylinder
11101	11101-19126	Head Sub-Assy, Cylinder
11101	90109-10025	Bolt(For Cylinder Head Set)
11101	90201-10344	Washer, Plate(For Cylinder Head Set)
11114	90254-03003	Pin, Straight
11115	11115-15042	Gasket, Cylinder Head
11115	11115-15043	Gasket, Cylinder Head
11115	11115-15060	Gasket, Cylinder Head
11115	11115-15061	Gasket, Cylinder Head
11117	90344-51002	Plug, W/head Taper Screw, No.1
11117	90341-20002	Plug, W/head Taper Screw, No.1
11117	90344-54002	Plug, W/head Taper Screw, No.3
11117	90430-20004	Gasket(For Cylinder Head Screw Plug)
11122	11122-15020	Bush, Intake Valve Guide
11122	11123-15020	Bush, Intake Valve Guide
11122	90520-10001	Ring, Shaft Snap (For Valve Guide Bush)
11126	11126-15020	Bush, Intake Valve Guide
11126	11127-15020	Bush, Intake Valve Guide
11131	11131-15010	Seat, Intake Valve
11131	11131-15020	Seat, Intake Valve
11131	11132-15010	Seat, Intake Valve
11131	11132-15020	Seat, Intake Valve
11135	11135-15010	Seat, Exhaust Valve
11135	11135-70030	Seat, Exhaust Valve
11135	11135-15020	Seat, Exhaust Valve
11135	11135-15021	Seat, Exhaust Valve
11135	11136-15010	Seat, Exhaust Valve
11135	11136-70030	Seat, Exhaust Valve
11135	11136-15020	Seat, Exhaust Valve
11135	11136-15021	Seat, Exhaust Valve
11151	90253-11021	Pin, Ring
11151	90311-35003	Seal, Oil(For Camshaft Setting)
11151	90311-35040	Seal, Oil(For Timing Chain Or Belt Cover)
11181	11181-15020	Plate, Cylinder Head, Rear
11181	11181-15060	Plate, Cylinder Head, Rear
11182	11182-15010	Gasket, Cylinder Head Rear Plate
11182	11182-15012	Gasket, Cylinder Head Rear Plate
11182	11182-15011	Gasket, Cylinder Head Rear Plate
11183	11183-15010	Plug, Semicircular
11201	11210-19015	Cover Sub-Assy, Cylinder Head
11201	11210-19016	Cover Sub-Assy, Cylinder Head
11201	90176-08007	Nut, Cap(For Cylinder Head Cover)
11201	90210-09001	Washer, Seal(For Cylinder Head Cover)
11201	90210-09019	Washer, Seal(For Cylinder Head Cover)
11213	11213-15020	Gasket, Cylinder Head Cover
12108	12180-13010	Cap Sub-Assy, Oil Filler
12108	12180-70010	Cap Sub-Assy, Oil Filler
12108	12180-E0010	Cap Sub-Assy, Oil Filler
12108	90430-37140	Gasket(For Oil Filler Cap)
12205	12205-15010	Case Sub-Assy, Ventilation
12256	12256-15010	Gasket, Ventilation Baffle
9011908166	90119-08166	New Genuine Part
9011908166	90119-08598	New Genuine Part
9161160610	91611-60610	Bolt (For Transfer Oil Receiver No.1)
9161160610	91611-B0610	Bolt (For Transfer Oil Receiver No.1)
9161160835	91611-60835	Bolt(For Clutch Release Cylinder Setting)
9165160820	91651-60820	Bolt, Radiator Side Support Plate
9165160820	91651-B0820	Bolt, Radiator Side Support Plate

OEM	Part name	Category
11101-15020	Head Sub-Assy, Cylinder	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11101-15021	Head Sub-Assy, Cylinder	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11101-15031	Head Sub-Assy, Cylinder	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11101-19125	Head Sub-Assy, Cylinder	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11101-19126	Head Sub-Assy, Cylinder	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11115-15042	Gasket, Cylinder Head	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11115-15043	Gasket, Cylinder Head	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11115-15060	Gasket, Cylinder Head	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11115-15061	Gasket, Cylinder Head	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11122-15020	Bush, Intake Valve Guide	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11123-15020	Bush, Intake Valve Guide	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11126-15020	Bush, Intake Valve Guide	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11127-15020	Bush, Intake Valve Guide	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11131-15010	Seat, Intake Valve	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11131-15020	Seat, Intake Valve	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11132-15010	Seat, Intake Valve	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11132-15020	Seat, Intake Valve	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11135-15010	Seat, Exhaust Valve	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11135-15020	Seat, Exhaust Valve	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11135-15021	Seat, Exhaust Valve	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11135-70030	Seat, Exhaust Valve	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11136-15010	Seat, Exhaust Valve	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11136-15020	Seat, Exhaust Valve	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11136-15021	Seat, Exhaust Valve	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11136-70030	Seat, Exhaust Valve	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11181-15020	Plate, Cylinder Head, Rear	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11181-15060	Plate, Cylinder Head, Rear	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11182-15010	Gasket, Cylinder Head Rear Plate	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11182-15011	Gasket, Cylinder Head Rear Plate	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11182-15012	Gasket, Cylinder Head Rear Plate	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11183-15010	Plug, Semicircular	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11210-19015	Cover Sub-Assy, Cylinder Head	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11210-19016	Cover Sub-Assy, Cylinder Head	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
11213-15020	Gasket, Cylinder Head Cover	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
12180-13010	Cap Sub-Assy, Oil Filler	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
12180-70010	Cap Sub-Assy, Oil Filler	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
12180-E0010	Cap Sub-Assy, Oil Filler	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
12205-15010	Case Sub-Assy, Ventilation	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
12256-15010	Gasket, Ventilation Baffle	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
90109-10025	Bolt(For Cylinder Head Set)	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
90119-08166	New Genuine Part	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
90119-08598	New Genuine Part	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
90176-08007	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
90201-10344	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
90210-09001	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
90210-09019	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
90253-11021	Pin, Ring	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
90254-03003	Pin, Straight	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
90311-35003	Seal, Oil(For Camshaft Setting)	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
90311-35040	Seal, Oil(For Timing Chain Or Belt Cover)	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
90341-20002	Plug, W/head Taper Screw, No.1	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
90344-51002	Plug, W/head Taper Screw, No.1	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
90344-54002	Plug, W/head Taper Screw, No.3	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
90430-20004	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
90520-10001	Ring, Shaft Snap (For Valve Guide Bush)	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
91611-60610	Bolt (For Transfer Oil Receiver No.1)	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
91611-60835	Bolt(For Clutch Release Cylinder Setting)	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
91611-B0610	Bolt (For Transfer Oil Receiver No.1)	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
91651-60820	Bolt, Radiator Side Support Plate	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
91651-B0820	Bolt, Radiator Side Support Plate	Cylinder Head ([03.1979 - 04.1983] (7903-8304)3AU)
