Search › Model › AE70

AE70

Toyota COROLLA · 1979 · 4,680 parts · 174 categories
AE70 ×

← Back to categories

4,680 items

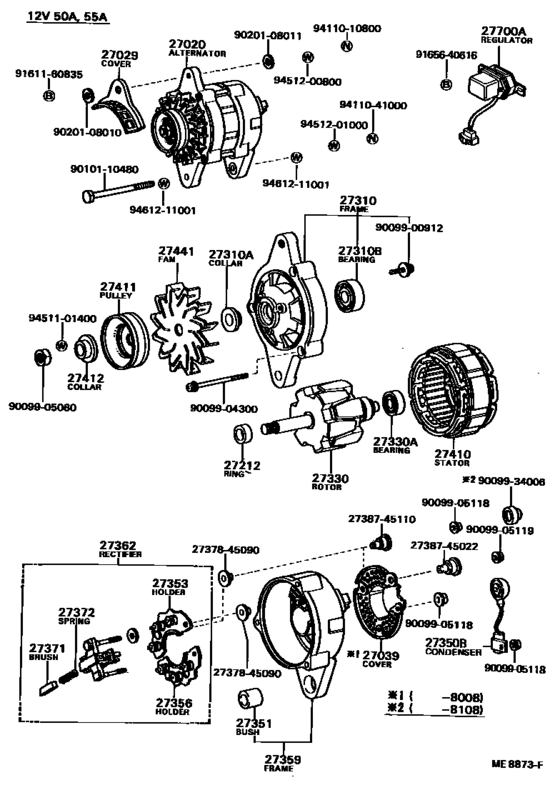

Alternator ([10.1979 - 04.1983] (7910-8304)3AU) 60
#OEMPart name
27020 27020-15022 Alternator Assy
27020 27020-15140 Alternator Assy
27029 27029-15012 Cover, Alternator
27212 27412-45070 Ring, Space(For Alternator Rotor)
27310 27310-61013 Frame Assy, Drive End, Alternator
27310 27310-61023 Frame Assy, Drive End, Alternator
27310 27412-31040 Collar Or Nut(For Alternator Drive End Frame)
27310 90099-10126 Bearing(For Alternator Drive End Frame)
27310 90099-10125 Bearing(For Alternator Drive End Frame)
27330 27330-45070 Rotor Assy, Alternator
27330 27330-16030 Rotor Assy, Alternator
27330 27330-63010 Rotor Assy, Alternator
27330 90099-10111 Bearing(For Alternator Rotor)
27330 90099-10116 Bearing(For Alternator Rotor)
27350 90099-52065 Condenser, Alternator
27350 90099-52034 Condenser, Alternator
27351 27351-38051 Bush(For Alternator Rectifier End Frame)
27353 27353-34021 Holder, W/rectifier Positive, Alternator
27353 27353-34051 Holder, W/rectifier Positive, Alternator
27353 27353-34121 Holder, W/rectifier Positive, Alternator
27356 27356-34021 Holder, W/rectifier Negative, Alternator
27356 27356-34051 Holder, W/rectifier Negative, Alternator
27359 27359-15021 Frame, Alternator Rectifier End
27362 27362-15021 Rectifier Assy, W/brush
27362 27362-63011 Rectifier Assy, W/brush
27362 27362-34021 Rectifier Assy, W/brush
27371 27371-31011 Brush, Alternator
27372 27372-31011 Spring, Alternator Brush
27410 27410-41080 Stator Assy, Alternator
27410 27410-43040 Stator Assy, Alternator
27411 27411-26111 Pulley, Alternator
27412 27412-44030 Ring, Space(For Alternator Rotor)
27412 27412-44031 Collar, Spacer(For Alternator Pulley)
27441 27441-34030 Fan, Alternator
27700 27700-15010 Regulator Assy, Generator
27700 27700-15040 Regulator Assy, Generator
27700 27700-15011 Regulator Assy, Generator
2737845090 27378-45090 Insulator, Alternator, No.1
2738745022 27387-45022 Insulator, Terminal
2738745110 27387-45110 Insulator, Terminal
9009900912 90099-00912 New Genuine Part
9009904300 90099-04300 New Genuine Part
9009905060 90099-05060 Collar Or Nut(For Alternator Drive End Frame)
9009905118 90099-05118 New Genuine Part
9009905119 90099-05119 New Genuine Part
9009934006 90099-34006 Cap, Alternator Terminal
9010110480 90101-10480 Shaft, Brake Pedal
9010110480 91552-81090 Bolt, No.1(For Alternator)
9020108010 90201-08010 New Genuine Part
9020108011 90201-08011 New Genuine Part
9161160835 91611-60835 Bolt(For Clutch Release Cylinder Setting)
9165640616 91656-40616 Bolt
9165640616 91651-60614 Bolt
9411010800 94110-10800 Nut(for Steering Damper)
9411010800 94130-00802 Nut, No.1 (For Center Support Bearing)
9411041000 94110-41000 Nut(For Steering Damper)
9451101400 94511-01400 WASHER
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
9461211001 94612-11001 Washer, Plate (For Center Support Bearing Housing)
