Search › Model › AE114

AE114

Toyota COROLLA · 1995 · 5,369 parts · 227 categories

5,369 items

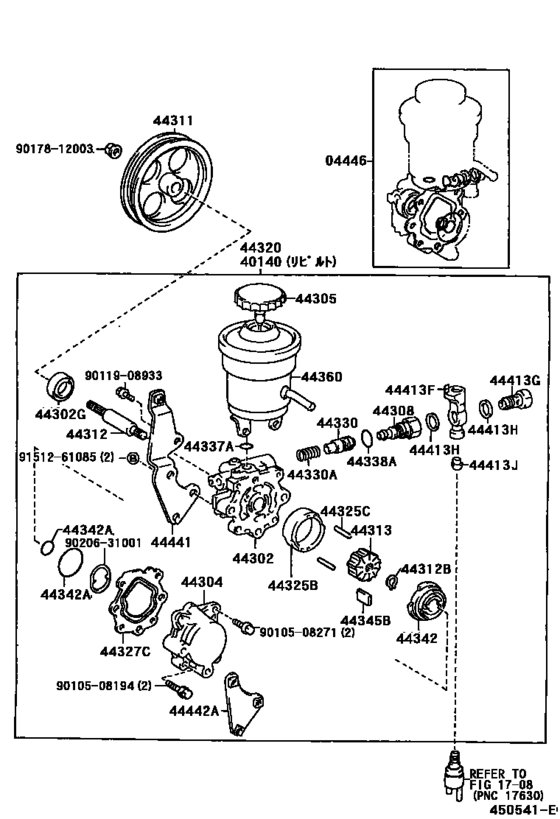

Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114) 66

#	OEM	Part name
4446	04446-32011	Gasket Kit, Power Steering Pump
40140	40140-12391	Pump Assy,vane Rebuilt
40140	44320-12391	Pump Assy, Vane
44302	44302-12160	Housing Sub-Assy, Vane Pump, Front
44302	90311-18015	Seal, Oil, No.2(For Vane Pump Housing)
44304	44324-26031	Housing Sub-Assy, Vane Pump, Rear
44305	44305-22040	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-12110	Union Sub-Assy, Pressure Port
44308	44308-28010	Union Sub-Assy, Pressure Port
44311	44311-12090	Pulley, Vane Pump
44312	44312-32020	Shaft, Vane Pump
44312	90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-26060	Rotor, Vane Pump
44313	44313-26070	Rotor, Vane Pump
44313	44313-26080	Rotor, Vane Pump
44313	44313-26090	Rotor, Vane Pump
44313	44313-26100	Rotor, Vane Pump
44320	44320-12390	Pump Assy, Vane
44325	44325-12270	Ring, Vane Pump Cam
44325	44325-12280	Ring, Vane Pump Cam
44325	44325-12290	Ring, Vane Pump Cam
44325	44325-12300	Ring, Vane Pump Cam
44325	44325-12310	Ring, Vane Pump Cam
44325	90250-04071	Pin, Straight(For Vane Pump Cam Ring)
44327	44327-26010	Gasket, Vane Pump Housing
44330	44330-12570	Valve Assy, Flow Control
44330	44330-32191	Valve Assy, Flow Control
44330	44330-12580	Valve Assy, Flow Control
44330	44330-32201	Valve Assy, Flow Control
44330	44330-12590	Valve Assy, Flow Control
44330	44330-32211	Valve Assy, Flow Control
44330	44330-12600	Valve Assy, Flow Control
44330	44330-32221	Valve Assy, Flow Control
44330	44330-12610	Valve Assy, Flow Control
44330	44330-32231	Valve Assy, Flow Control
44330	44330-12620	Valve Assy, Flow Control
44330	44330-32241	Valve Assy, Flow Control
44330	90501-13034	Spring, Compression(For Flow Control Valve)
44337	90301-11010	Pin, Straight(For Vane Pump Cam Ring)
44337	90301-11016	Ring, O(For Power Steering Suction Port)
44338	90301-19003	Ring, O(For Pressure Port Union)
44338	90301-19018	Ring, O(For Pressure Port Union)
44338	90301-19013	Seal, Oil, No.1(For Vane Pump Housing)
44342	44342-26020	Plate, Vane Pump Side, Rear
44342	90301-18007	Ring, O(For Pump Housing Rear)
44342	90301-47001	Ring, O(For Vane Pump Side Plate Rear)
44345	44345-26010	Plate, Vane Pump
44345	44345-26020	Plate, Vane Pump
44345	44345-26030	Plate, Vane Pump
44345	44345-26040	Plate, Vane Pump
44345	44345-26050	Plate, Vane Pump
44360	44306-12160	Reservoir Assy, Vane Pump Oil
44413	44413-12160	Tube, Pressure Feed, No.2
44413	96341-41603	Bolt, Union(For Rear Stabilizer Contorol Tube)
44413	90430-16242	Gasket, W/head Straight Screw Plug
44413	90410-05035	Seat, Union(For Valve Body Housing)
44441	44441-12070	Bracket, Pump, Front
44442	44442-12020	Bracket, Vane Pump, Rear
9010508194	90105-08194	New Genuine Part
9010508271	90105-08271	Bolt
9011908933	90119-08933	Bolt (For Transmission Control Cable Bracket)
9011908933	91611-B0816	Bolt
9017812003	90178-12003	Nut(For Vane Pump Pulley)
9020631001	90206-31001	WASHER WAVE
9151261085	91512-61085	New Genuine Part

OEM	Part name	Category
04446-32011	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
40140-12391	Pump Assy,vane Rebuilt	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44302-12160	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44305-22040	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44306-12160	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44308-12110	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44308-28010	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44311-12090	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44312-32020	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44313-26060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44313-26070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44313-26080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44313-26090	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44313-26100	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44320-12390	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44320-12391	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44324-26031	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44325-12270	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44325-12280	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44325-12290	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44325-12300	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44325-12310	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44327-26010	Gasket, Vane Pump Housing	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44330-12570	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44330-12580	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44330-12590	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44330-12600	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44330-12610	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44330-12620	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44330-32191	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44330-32201	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44330-32211	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44330-32221	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44330-32231	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44330-32241	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44342-26020	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44345-26010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44345-26020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44345-26030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44345-26040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44345-26050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44413-12160	Tube, Pressure Feed, No.2	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44441-12070	Bracket, Pump, Front	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
44442-12020	Bracket, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
90105-08194	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
90105-08271	Bolt	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
90119-08933	Bolt (For Transmission Control Cable Bracket)	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
90178-12003	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
90206-31001	WASHER WAVE	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
90250-04071	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
90301-11010	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
90301-11016	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
90301-18007	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
90301-19003	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
90301-19013	Seal, Oil, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
90301-19018	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
90301-47001	Ring, O(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
90311-18015	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
90410-05035	Seat, Union(For Valve Body Housing)	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
90430-16242	Gasket, W/head Straight Screw Plug	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
90501-13034	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
91512-61085	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
91611-B0816	Bolt	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
96341-41603	Bolt, Union(For Rear Stabilizer Contorol Tube)	Vane Pump & Reservoir (Power Steering) ([04.1997 - ] (9505-9704)AE11# ; (9704- )AE110,114)
