AE114

Toyota COROLLA · 1995 · 5,369 parts · 227 categories
AE114 ×

← Back to categories

5,369 items

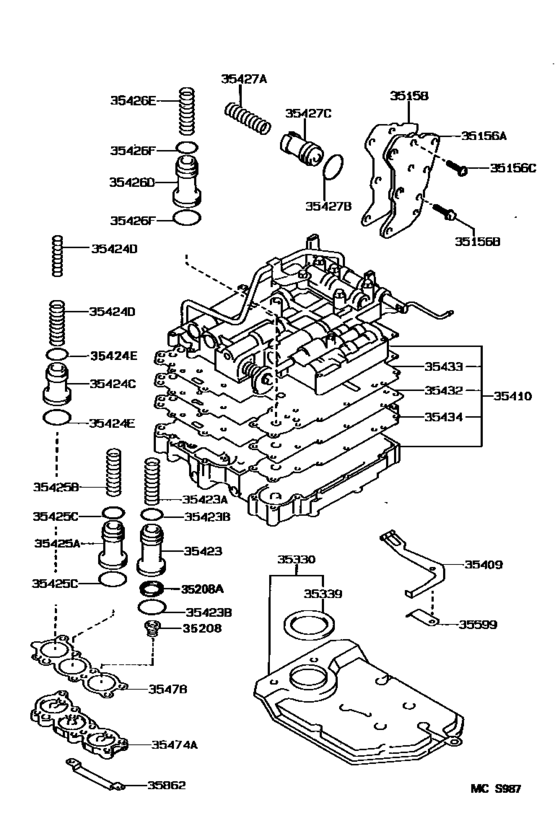

Valve Body & Oil Strainer (Atm) ([05.1995 - ] A240L,A241H,A241L (9505- )AE110,114,CE110,113..4FC) 132
#OEMPart name
35156 35156-20010 Plate, Transmission Case, No.2
35156 90105-06049 Bolt(For Transmission Case No.2 Plate)
35156 90149-60041 Screw(For Transmission Case No.2 Plate)
35158 35158-20020 Gasket, Transmission Case, No.2 Plate
35208 35209-20010 Spring Sub-Assy, B-2 Accumulator
35211 35211-12010 Valve, Lock Up Signal
35211 90501-08057 Spring, Compression (For Lock Up Signal Valve)
35211 90282-03002 Key, Straight (For Lock Up Signal Valve)
35212 35212-12010 Valve, Lock Up Relay
35212 90501-05010 Spring, Compression (For Lock Up Relay Valve)
35213 35213-12010 Valve, Lock Up Relay Control
35215 90250-03038 Pin, Straight (For Lock Up Relay Valve Sleeve)
35215 35215-12021 Sleeve, Lock Up Relay Valve
35261 35261-12010 Body, Pressure Regulator Valve, No.2
35261 90105-05003 Bolt (For Pressure Regulator Valve No.2)
35261 90119-05035 Bolt (For Pressure Regulator Valve No.2)
35261 90105-05014 Bolt (For Pressure Regulator Valve No.2)
35262 35262-12010 Valve, Pressure Regulator, No.2
35262 90501-08098 Spring, Compression (For Pressure Regulator Valve No.2)
35262 90339-05006 Plug (For Pressure Regulator Valve No.2)
35262 90361-02023 Roller (For Pressure Regulator Valve No.2)
35263 35263-12010 Plunger, Pressure Regulator Valve
35264 35264-12010 Plate, Pressure Regulator Valve Body
35265 35265-12010 Tube, Clutch Pressure Apply
35266 35266-12010 Clamp, Clutch Pressure Apply Tube
35330 35330-12020 Strainer Assy, Valve Body Oil
35339 35339-12010 Gasket, Oil Strainer
35409 35409-20010 Spring Sub-Assy, Manual Detent
35410 35410-12361 Body Assy, Transmission Valve
35410 35410-12580 Body Assy, Transmission Valve
35410 82125-20240 Wire, Transmission
35415 35415-12020 Valve, Primary Regulator
35415 90201-08021 Washer, Plate (For Pressure Regulator Valve)
35416 35416-17010 Plunger, Primary Regulator Valve, No.1
35417 35417-12020 Sleeve, Primary Regulator Valve
35418 35418-12020 Valve, Manual
35418 90250-02007 Pin, Straight (For Lock Up Signal Valve)
35418 90339-04007 Plug (For Manual Valve)
35419 35419-12030 Valve, Check, No.1
35419 90501-10079 Spring, Compression (For Check Valve)
35422 35422-22010 Stopper, Valve Vibrating
35423 35423-20030 Piston, B-2 Accumulator
35423 90501-26048 Spring, Compression (For B-2 Accumulator Piston)
35423 90301-22185 Ring (For Accumulator Piston No.3)
35423 90301-29187 Ring, O (For Low Speed Brake Accumulator Piston)
35424 35424-20030 Piston, C-1 Accumulator
35424 90501-19023 Spring, Compression (For C-1 Accumulator Piston)
35424 90501-25044 Spring, Compression (For C-1 Accumulator Piston)
35424 90301-23194 Ring, O (For Low Speed Brake Accumulator Piston)
35425 35425-12020 Piston, C-2 Accumulator
35425 90501-24023 Spring, Compression (For C-2 Accumulator Piston)
35426 35426-20040 Piston, C-3 Accumulator
35426 90501-25050 Spring, Compression (For C-3 Accumulator Piston)
35426 90301-20002 Ring, O (For C-3 Accumulator Piston)
35427 90501-26078 Spring, Compression (For B-4 Accumulator Piston)
35427 35427-12010 Piston, B-4 Accumulator
35432 35432-12120 Plate, Valve Body, No.1
35433 35433-12040 Gasket, Valve Body, No.1
35434 35434-12020 Gasket, Valve Body, No.2
35437 35437-20010 Plate, Valve Body Cover
35438 35438-22020 Seat (For Direct Clutch Modulator Valve Plug)
35439 35439-20010 Strainer, Line Pressure Oil
35442 35442-32010 Strainer, Throttle Modulator Oil
35445 35445-12010 Valve, 2Nd Coast Modulator
35445 90339-02003 Plug (For 2Nd Coast Modulator Valve)
35445 90501-10081 Spring, Compression (For Low Modulator Valve)
35445 90501-09046 Spring, Compression (For Low Coast Modulator Valve)
35449 35449-32010 Valve, Pressure Relief
35449 90501-09032 Spring, Compression (For Valve Pressure Relief)
35450 35495-22020 Ball (For Transfer Upper Valve Body)
35450 90360-06004 Ball, Detent(For Gear Shift Head No.4)
35450 90080-36191 Ball, Check Valve
35451 35451-32010 Sleeve, Throttle Valve
35453 35453-20010 Valve, Detent Regulator
35453 90501-10135 Spring, Compression (For Detent Regulator Valve)
35453 90501-10208 Spring, Compression (For Detent Regulator Valve)
35454 35454-20010 Valve, Low Coast Shift
35454 90339-04008 Plug (For Low Coast Shift Valve)
35456 35456-32010 Valve, 2-3 Shift
35456 90501-06027 Spring, Compression (For 2-3 Shift Valve)
35456 90339-07005 Plug (For 2-3 Shift Valve)
35456 90282-03001 Key, Straight (For Lock Up Signal Valve)
35457 35457-12010 Valve, Throttle Modulator
35457 90501-09040 Spring, Compression (For Throttle Modulator Valve)
35458 35458-32020 Valve, Cut Back
35458 90339-04002 Plug(For Low-High Shift Valve)
35458 90282-03003 Key, Straight (For Lock Up Signal Valve)
35461 35408-32010 Plug, Down Shift
35461 90501-10054 Spring, Compression (For Down Shift Plug)
35462 35462-12020 Valve, Throttle
35462 90501-07027 Spring, Compression (For Throttle Valve)
35462 90523-06023 Ring, E (For Throttle Valve)
35463 35463-32010 Valve, 1-2 Shift, Lower
35464 90501-06025 Spring, Compression (For 1-2 Shift Valve)
35464 35464-32020 Valve, 1-2 Shift, Upper
35465 35465-17010 Sleeve, Primary Regulator Valve Plunger
35465 35465-20010 Plug, Intermediate Shift Valve
35467 35467-20010 Valve, Intermediate Shift
35468 35468-12020 Valve, Secondary Regulator
35468 90501-14105 Spring, Compression (For Secondary Regulator Valve)
35468 90339-03004 Plug (For Lock Up Control Valve)
35472 35472-12050 Cover, Lower Valve Body
35474 35474-12010 Cover, Accumulator
35476 35476-20010 Valve, 3Rd Coast
35477 35477-20010 Gasket, Valve Body Cover
35478 35478-32010 Gasket, Accumulator Cover
35491 35491-20010 Valve, Accumulator Control, No.1
35491 90501-09115 Spring, Compression (For Accumulator Control Valve No.1)
35491 90339-04042 Plug (For Accumulator Control Valve No.1)
35497 35497-20020 Valve, 3-4 Shift
35497 90339-04006 Plug (For 3-4 Shift Valve)
35498 35498-20020 Valve, 3-4 Coast Shift
35499 35499-20010 Valve, Overdrive Sequence
35499 90501-08039 Spring, Compression (For Overdrive Sequence Valve)
35521 35521-32010 Cam, Throttle Valve
35521 90508-11003 Spring (For Throttle Valve Cam Return)
35521 90201-06472 Washer (For Throttle Valve Cam Set)
35521 90105-06018 Bolt (For Throttle Valve Cam Set)
35522 35522-22010 Pin, Throttle Valve Cam
35599 35599-12010 Cover, Manual Detent Spring
35862 35862-12020 Bracket, Accumulator Apply Tube
9010505007 90105-05007 New Genuine Part
9010505009 90105-05009 New Genuine Part
9010505010 90105-05010 New Genuine Part
9010506017 90105-06017 Bolt(for Cylinder Head Cover)
9010506017 91551-A0625 Bolt(For Cylinder Head Cover)
9010506020 90105-06020 New Genuine Part
9010506020 91511-C0630 New Genuine Part
9010506026 90105-06026 Bolt (For Transaxle Case Upper Cover)
9010506026 91511-H0620 Bolt (For Transaxle Case Upper Cover)
9010506053 90105-06053 Bolt(For Sensor Rotor Adapter)
9010506055 90105-06055 New Genuine Part
