Search › Model › AE114

AE114

Toyota COROLLA · 1995 · 5,369 parts · 227 categories
AE114 ×

← Back to categories

5,369 items

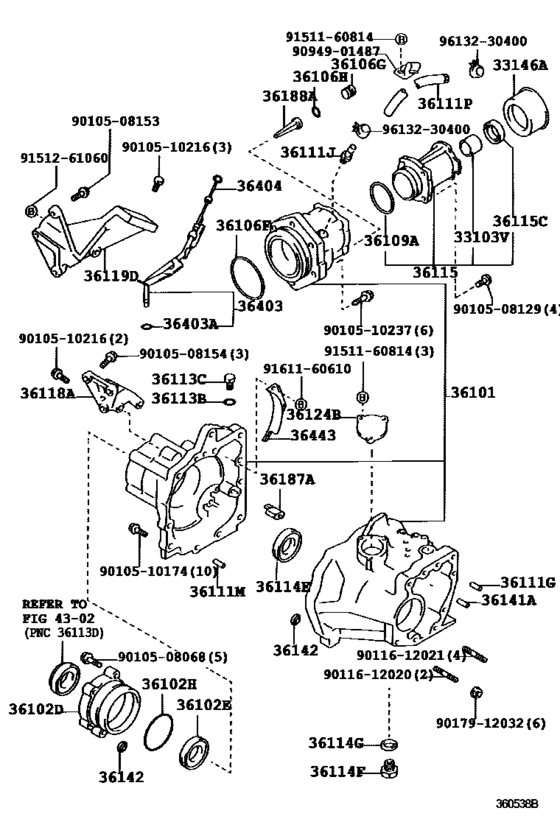

Transfer Case & Extension Housing ([05.1995 - ] A241H (9505- )AE114..4FC) 57
#OEMPart name
33103 90999-73105 Bush(For Manual Transmission Extension Housing)
33146 33146-30020 Deflector, Extension Housing Dust(Mtm)
36101 36101-12020 Case Sub-Assy, Transfer
36102 36102-12010 Retainer Sub-Assy, Transfer Rh Bearing
36102 90316-52001 Seal, Oil, No.1 (For Transfer Rh Bearing Retainer)
36102 90301-85003 Ring, O (For Transfer Rh Bearing Retainer)
36106 90301-94001 Ring, O (For 1St & Reverse Brake)
36106 90334-09004 Plug, Straight (For Transfer Pinion Bearing Cage)
36106 90301-05002 Ring, O (For Front Support)
36109 90301-63005 Ring, O (For Transfer Extension Housing)
36111 90250-10021 Pin, Straight (For Transaxle Case)
36111 90404-51059 Union, Breather, No.1 (For Transfer)
36111 90254-10003 Pin, Straight (For Transfer Case)
36111 90447-11034 Hose, Breather (For Transfer Case)
36113 90301-10189 Ring, O(For Oil Cooler Tube Union)
36113 90341-13002 Plug (For Transfer Case)
36114 90316-61001 Seal, Oil (For Transfer Case Lh)
36114 90341-18021 Plug, Filler(Hv)
36114 90430-18008 Gasket
36114 90430-T0021 Gasket(For Manual Transmission Filler Plug)
36115 36105-12020 Housing, Transfer Extension
36115 90311-38032 Seal, Oil(For Manual Transmission Extension Housing)
36118 36118-12040 Plate, Transfer Stiffener, Rh
36119 36119-12040 Plate, Transfer Stiffener, Center
36124 36124-12020 Cover, Transfer Inspection Hole
36141 36141-12020 Gasket (For Transmission Housing)
36142 36142-12010 Gasket, Transfer Cover
36187 36187-12010 Strainr, Transfer Oil, No.1
36188 36188-12010 Strainer, Transfer Oil, No.2
36403 36403-12021 Tube Sub-Assy, Transfer Oil Filler
36403 36403-12030 Tube Sub-Assy, Transfer Oil Filler
36403 90301-09173 Ring, O(For Transmission Oil Filler Tube)
36404 36404-12021 Gage Sub-Assy, Transfer Oil Level
36404 36404-12030 Gage Sub-Assy, Transfer Oil Level
36443 36443-12010 Plate, Transfer Oil Level Gage Guide
36443 36443-12011 Plate, Transfer Oil Level Gage Guide
9010508068 90105-08068 Bolt (For Transaxle Rear Cover Setting)
9010508068 91551-C0835 Bolt (For Rear Differential Carrier)
9010508129 90105-08129 Bolt(For Alternator)
9010508129 91511-80830 Bolt(For Alternator)
9010508153 90105-08153 New Genuine Part
9010508154 90105-08154 Bolt, No.1(For Alternator)
9010510174 90105-10174 New Genuine Part
9010510216 90105-10216 Bolt (For Transfer Oil Receiver No.1)
9010510216 91512-B1030 Bolt (For Transfer Oil Receiver No.1)
9010510237 90105-10237 New Genuine Part
9011612020 90116-12020 Bolt, Stud (For Transfer & Transaxle Setting)
9011612021 90116-12021 New Genuine Part
9017912032 90179-12032 New Genuine Part
9094901487 90949-01487 New Genuine Part
9151160814 91511-60814 New Genuine Part
9151160814 91511-B0814 BOLT
9151261060 91512-61060 Bolt(For Transaxle Case & Engine Setting)
9161160610 91611-60610 Bolt (For Transfer Oil Receiver No.1)
9161160610 91611-B0610 Bolt (For Transfer Oil Receiver No.1)
9613230400 96132-30400 Clip Or Clamp(For Ventilation Hose)
9613230400 96132-51000 Clip Or Clamp(For Ventilation Hose)
