Search › Model › AE114
AE114

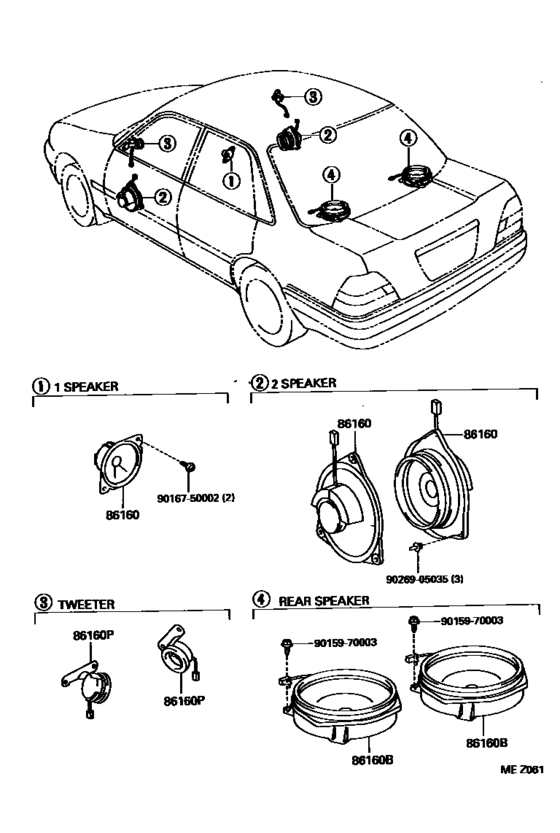

Speaker ([05.1995 - ] (9505- )) 9
| # | OEM | Part name |
|---|---|---|
| 86160 | 86160-12630 | Speaker Assy, Front No.1 |
| 86160 | 86160-12820 | Speaker Assy, Front No.1 |
| 86160 | 86160-12830 | Speaker Assy, Rear |
| 86160 | 86160-12840 | Speaker Assy, Front No.2 |
| 86160 | 86160-12850 | Speaker Assy, Front No.2 |
| 9015970003 | 90159-70003 | Bolt, W/washer |
| 9016750002 | 90167-50002 | Direct |
| 9016750002 | 93568-55014 | Screw |
| 9026905035 | 90269-05035 | RIVET |
| OEM | Part name | Category |
|---|---|---|
| 86160-12630 | Speaker Assy, Front No.1 | Speaker ([05.1995 - ] (9505- )) |
| 86160-12820 | Speaker Assy, Front No.1 | Speaker ([05.1995 - ] (9505- )) |
| 86160-12830 | Speaker Assy, Rear | Speaker ([05.1995 - ] (9505- )) |
| 86160-12840 | Speaker Assy, Front No.2 | Speaker ([05.1995 - ] (9505- )) |
| 86160-12850 | Speaker Assy, Front No.2 | Speaker ([05.1995 - ] (9505- )) |
| 90159-70003 | Bolt, W/washer | Speaker ([05.1995 - ] (9505- )) |
| 90167-50002 | Direct | Speaker ([05.1995 - ] (9505- )) |
| 90269-05035 | RIVET | Speaker ([05.1995 - ] (9505- )) |
| 93568-55014 | Screw | Speaker ([05.1995 - ] (9505- )) |
