Search › Model › AE114

AE114

Toyota COROLLA · 1995 · 5,369 parts · 227 categories
AE114 ×

← Back to categories

5,369 items

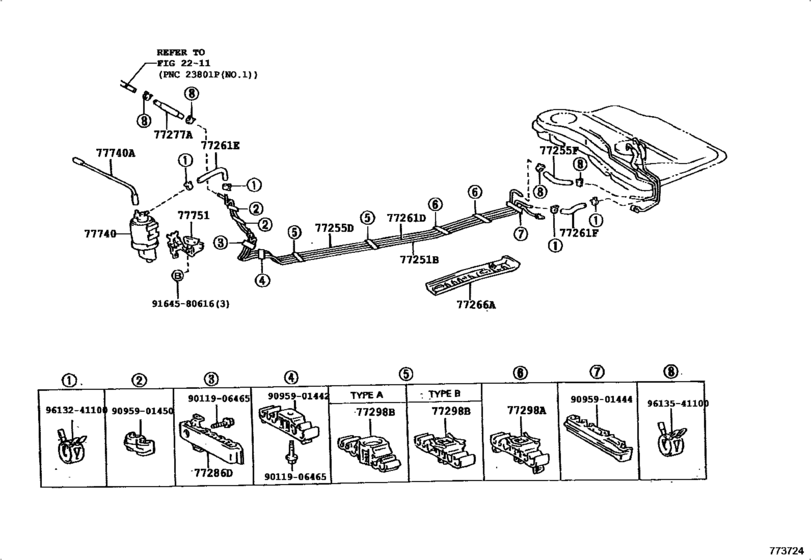

Fuel Tank & Tube ([05.1995 - ] (9505- )AE114) 26
#OEMPart name
77251 77251-12600 Tube, Fuel Main
77255 77255-12540 Tube, Fuel Return
77255 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77255 95337-06020 Hose, Differential Pressure Control
77261 77261-12390 Tube, Fuel Tank To Canister
77261 77259-12180 Hose, Fuel, No.2 (For Fuel Tank To Canister Tube)
77266 77267-12130 Protector, Fuel Tube, No.1
77277 90447-12139 Hose, Fuel, No.1(For Return Tube, No.1)
77286 77286-12040 Clamp, Fuel Tube W/grommet, No.2
77298 77298-12030 Clamp, Fuel Tube, No.1
77298 77298-12040 Clamp, Fuel Tube, No.4
77298 77298-12050 Clamp, Fuel Tube, No.4
77740 77740-10140 Canister Assy, Charcoal
77740 77740-12610 Canister Assy, Charcoal
77740 95413-49939 Hose, Fuel, No.1(For Charcoal Canister)
77751 77750-12080 Bracket, Charcoal Canister Base
9011906465 90119-06465 BOLT
9095901442 90959-01442 CLAMP
9095901444 90959-01444 New Genuine Part
9095901450 90959-01450 Clamp, Fuel Tube, No.1
9164580616 91645-80616 New Genuine Part
9164580616 91641-C0612 New Genuine Part
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
9613541100 96135-41100 Clamp Or Clip, Hose(For Water By-Pass Pipe)
9613541100 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
