Search › Model › AE114

AE114

Toyota COROLLA · 1995 · 5,369 parts · 227 categories

5,369 items

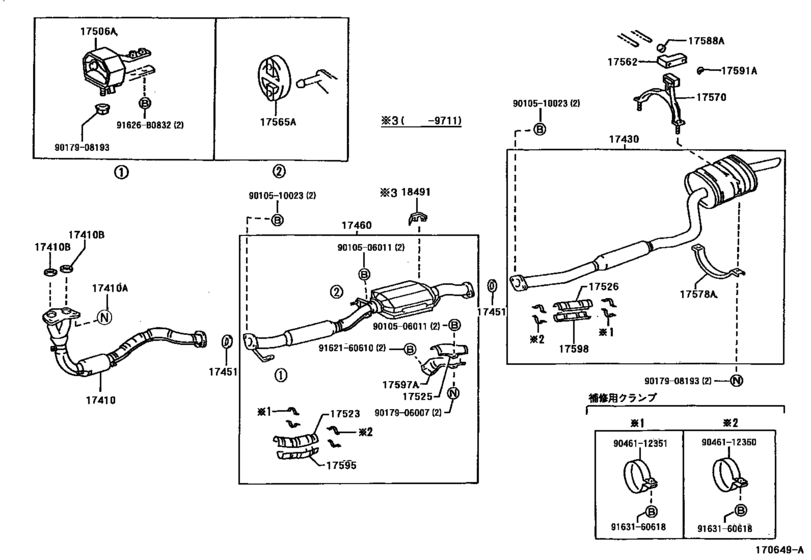

Exhaust Pipe ([04.1997 - ] (9704- )4AFE) 42

#	OEM	Part name
17410	17410-1A240	Pipe Assy, Exhaust, Front
17410	17410-1A520	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06064	Gasket, Exhaust Pipe
17430	17430-1A530	Pipe Assy, Exhaust, Tail
17430	17430-1A904	Pipe Assy, Exhaust, Tail
17430	17578-16050	Clamp, Muffler
17430	17430-1A531	Pipe Assy, Exhaust, Tail
17451	90917-06039	Gasket, Exhaust Pipe
17460	17460-16100	Converter Assy, Catalytic W/pipe
17460	17460-16160	Converter Assy, Catalytic W/pipe
17460	17460-16210	Converter Assy, Catalytic W/pipe
17506	17506-16110	Bracket Sub-Assy, Exhaust Pipe No.1 Support
17523	17523-16210	Protector, Exhaust Pipe, Upper No.3
17523	17523-16220	Protector, Exhaust Pipe, Upper No.3
17525	17525-16020	Protector, Exhaust Pipe, Upper No.5
17526	17526-16050	Protector, Exhaust Pipe, Upper No.6
17562	17562-16240	Support, Exhaust Pipe, No.2
17565	17565-11160	Support, Exhaust Pipe, No.1
17570	17570-16020	Bracket Assy, Exhaust Pipe Support
17578	17578-16030	Clamp, Muffler
17588	17588-16020	Spacer, Exhaust Pipe Hanger
17591	17591-16020	Stopper, Exhaust Pipe Support
17595	17595-16350	Protector, Exhaust Pipe, Lower No.3
17595	17595-16380	Protector, Exhaust Pipe, Lower No.3
17597	17597-16060	Protector, Exhaust Pipe, Lower No.5
17598	17598-16040	Protector, Exaust Pipe, Lower No.6
18491	18491-16020	Flange, Thermosensor Inlet
91626	91626-B0832	New Genuine Part
91626	91651-B0830	New Genuine Part
9010506011	90105-06011	BOLT
9010510023	90105-10023	Bolt
9010510023	91512-81035	BOLT
9017906007	90179-06007	Nut
9017908193	90179-08193	NUT
9046112350	90461-12350	Clamp, Exhaust Pipe
9046112351	90461-12351	New Genuine Part
9162160610	91621-60610	New Genuine Part
9162160610	91651-B0612	Bolt
9163160618	91631-60618	BOLT WWASHER
9163160618	91631-B0618	BOLT WWASHER

OEM	Part name	Category
17410-1A240	Pipe Assy, Exhaust, Front	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17410-1A520	Pipe Assy, Exhaust, Front	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17430-1A530	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17430-1A531	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17430-1A904	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17460-16100	Converter Assy, Catalytic W/pipe	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17460-16160	Converter Assy, Catalytic W/pipe	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17460-16210	Converter Assy, Catalytic W/pipe	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17506-16110	Bracket Sub-Assy, Exhaust Pipe No.1 Support	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17523-16210	Protector, Exhaust Pipe, Upper No.3	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17523-16220	Protector, Exhaust Pipe, Upper No.3	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17525-16020	Protector, Exhaust Pipe, Upper No.5	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17526-16050	Protector, Exhaust Pipe, Upper No.6	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17562-16240	Support, Exhaust Pipe, No.2	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17565-11160	Support, Exhaust Pipe, No.1	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17570-16020	Bracket Assy, Exhaust Pipe Support	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17578-16030	Clamp, Muffler	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17578-16050	Clamp, Muffler	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17588-16020	Spacer, Exhaust Pipe Hanger	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17591-16020	Stopper, Exhaust Pipe Support	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17595-16350	Protector, Exhaust Pipe, Lower No.3	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17595-16380	Protector, Exhaust Pipe, Lower No.3	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17597-16060	Protector, Exhaust Pipe, Lower No.5	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
17598-16040	Protector, Exaust Pipe, Lower No.6	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
18491-16020	Flange, Thermosensor Inlet	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
90105-06011	BOLT	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
90105-10023	Bolt	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
90179-06007	Nut	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
90179-08193	NUT	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
90461-12350	Clamp, Exhaust Pipe	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
90461-12351	New Genuine Part	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
90917-06039	Gasket, Exhaust Pipe	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
90917-06064	Gasket, Exhaust Pipe	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
91512-81035	BOLT	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
91621-60610	New Genuine Part	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
91626-B0832	New Genuine Part	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
91631-60618	BOLT WWASHER	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
91631-B0618	BOLT WWASHER	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
91651-B0612	Bolt	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)
91651-B0830	New Genuine Part	Exhaust Pipe ([04.1997 - ] (9704- )4AFE)

Source: Public OEM parts-catalog data
Variants: 1 / 5
Category: 227
Collected: 2026-08-02
