AE112

Toyota COROLLA · 1997 · 3,598 parts · 220 categories
AE112 ×

← Back to categories

3,598 items

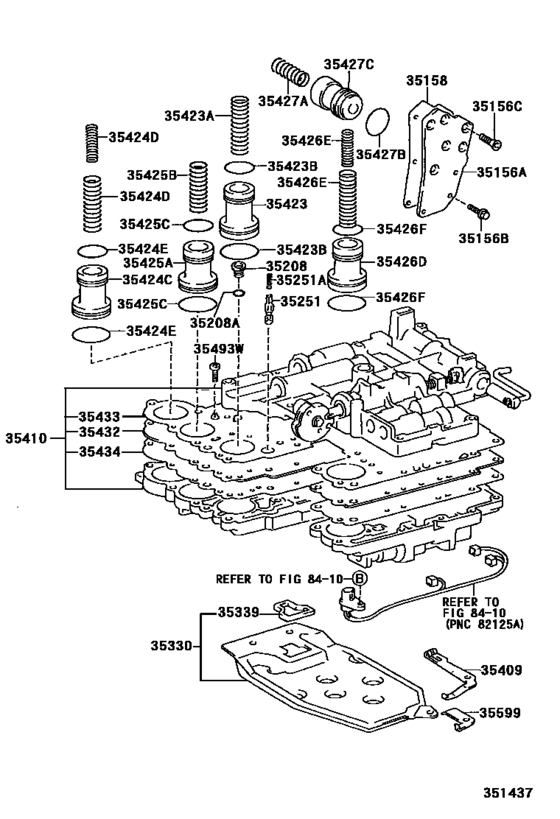

Valve Body & Oil Strainer (Atm) ([09.1998 - ] A245E (9809- )AE112..4FC..PHL,TH) 115
#OEMPart name
35156 35156-20010 Plate, Transmission Case, No.2
35156 90105-06049 Bolt(For Transmission Case No.2 Plate)
35156 90149-60041 Screw(For Transmission Case No.2 Plate)
35158 35158-20020 Gasket, Transmission Case, No.2 Plate
35208 35205-20030 Spring Sub-Assy, C-3 Accumulator
35208 90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)
35212 35212-12010 Valve, Lock Up Relay
35212 90501-05010 Spring, Compression (For Lock Up Relay Valve)
35213 35213-12020 Valve, Lock Up Relay Control
35215 35215-12040 Sleeve, Lock Up Relay Valve, No.1
35224 35224-50010 Valve, Reverse Control
35224 90501-06056 Spring, Compression (For Reverse Control Valve)
35251 35251-30020 Body, Check Ball
35251 90501-03005 Spring, Compression (For Check Ball Body)
35330 35330-12030 Strainer Assy, Valve Body Oil
35339 35339-12020 Gasket, Oil Strainer
35408 35408-12010 Plug Sub-Assy, Throttle Valve
35408 90501-10119 Spring, Compression (For Throttle Valve Plug)
35408 90282-03015 Key, Straight (For Throttle Valve Plug)
35408 35408-50010 Plug Sub-Assy, Accumulator Control Valve
35409 35409-12030 Spring Sub-Assy, Manual Detent
35409 35409-12060 Spring Sub-Assy, Manual Detent
35410 35410-12670 Body Assy, Transmission Valve
35415 35415-12030 Valve, Primary Regulator
35415 90501-14117 Spring, Compression (For Primary Regulator Valve)
35415 90201-08067 Washer (For Primary Regulator Valve)
35416 35416-50010 Plunger, Primary Regulator Valve, No.1
35417 35417-12030 Sleeve, Primary Regulator Valve
35418 35418-12030 Valve, Manual
35419 35419-50020 Valve, Check, No.1
35419 35419-50030 Valve, Check, No.2
35419 90360-06004 Ball, Detent(For Gear Shift Head No.4)
35419 90080-36191 Ball, Check Valve
35419 90501-08139 Spring, Compression (For Check Valve)
35419 35419-50010 Valve, Check, No.1
35422 35422-50011 Plunger, Primary Regulator Valve, No.2
35423 35423-12010 Piston, B-2 Accumulator
35423 90501-23126 Spring, Compression (For B-2 Accumulator Piston)
35423 90301-21012 Ring (For Accumulator Piston No.3)
35423 90301-22185 Ring (For Accumulator Piston No.3)
35423 90301-29011 Ring (For Accumulator Piston No.1)
35423 90301-29187 Ring, O (For Low Speed Brake Accumulator Piston)
35424 35424-12030 Piston, C-1 Accumulator
35424 90501-20136 Spring, Compression (For C-1 Accumulator Piston)
35424 90501-24027 Spring, Compression (For C-1 Accumulator Piston)
35424 90301-23010 Ring (For Accumulator Piston No.1)
35424 90301-23194 Ring, O (For Low Speed Brake Accumulator Piston)
35425 35425-12040 Piston, C-2 Accumulator
35425 90501-24028 Spring, Compression (For C-2 Accumulator Piston)
35425 90301-26012 Ring (For Accumulator Piston No.1)
35425 90301-26190 Ring, O (For Flange Yoke)
35426 35426-12030 Piston, C-3 Accumulator
35426 90501-20134 Spring, Compression (For C-3 Accumulator Piston)
35426 90501-23125 Spring, Compression (For C-3 Accumulator Piston)
35427 90501-26078 Spring, Compression (For B-4 Accumulator Piston)
35427 35427-13010 Piston, B-4 Accumulator
35432 35432-12210 Plate, Valve Body, No.1
35433 35433-12050 Gasket, Valve Body, No.1
35434 35434-12030 Gasket, Valve Body, No.2
35437 35437-20060 Plate, Valve Body Cover
35438 35438-22020 Seat (For Direct Clutch Modulator Valve Plug)
35438 35438-50010 Seat, Detent Spring
35439 35439-50010 Screw, Throttle Valve
35441 35441-12020 Strainer, Solenoid Oil
35445 35445-12020 Valve, Low Modulator
35445 90339-04030 Plug (For Solenoid Modulator Valve)
35445 90501-10186 Spring, Compression (For 2Nd Coast Modulator Valve)
35445 90501-09119 Spring, Compression (For Low Coast Modulator Valve)
35456 35456-12020 Valve, 2-3 Shift
35458 35458-50010 Valve, Cut Back
35458 90501-06055 Spring, Compression (For Solenoid Relay Valve)
35462 35462-50010 Valve, Throttle
35462 90504-06002 Spring, Compression (For Throttle Valve)
35464 35464-12040 Valve, 1-2 Shift
35468 35468-12030 Valve, Secondary Regulator
35468 90501-13035 Spring, Compression (For Secondary Regulator Valve)
35468 90339-05020 Plug (For Reverse Control Valve)
35472 35472-12030 Cover, Lower Valve Body
35477 35477-12030 Gasket, Valve Body Cover
35486 35486-50010 Seat, Pressure Relief Valve Spring
35486 90501-10143 Spring (For Lower Valve Body)
35486 90360-08003 Ball (For Lower Valve Body)
35491 35491-12020 Valve, Accumulator Control, No.1
35491 90501-08138 Spring, Compression (For Accumulator Control Valve No.1)
35493 35493-50040 Seat, Valve Body
35493 90282-03002 Key, Straight (For Lock Up Signal Valve)
35493 35493-12030 Seat, Primary Regulator Valve Plug
35493 35493-50030 Seat, Accumulator Control Valve Plug, No.1
35495 35495-22020 Ball (For Transfer Upper Valve Body)
35496 35496-22030 Ball (For Lower Valve Body)
35497 35497-12020 Valve, 3-4 Shift
35497 90501-08135 Spring, Compression (For Shift Valve Plug Seat)
35497 90339-05019 Plug
35521 35521-12030 Cam, Throttle Valve
35521 90949-03004 Spring (For Throttle Valve Cam Return)
35521 90201-06472 Washer (For Throttle Valve Cam Set)
35521 90105-06076 Bolt (For Throttle Valve Cam Set)
35522 35522-12010 Pin, Throttle Valve Cam
35554 35554-12020 Rod, Manual Valve Connecting
35554 96160-00400 Ring, E(For Release Arm)
35599 35599-12020 Cover, Manual Detent Spring
35599 35599-12040 Cover, Manual Detent Spring
9010505005 90105-05005 Bolt (For Transfer Relief Valve Plate)
9010505047 90105-05047 New Genuine Part
9010506017 90105-06017 Bolt(for Cylinder Head Cover)
9010506017 91551-A0625 Bolt(For Cylinder Head Cover)
9010506018 90105-06018 Bolt (For Throttle Valve Cam Set)
9010506026 90105-06026 Bolt (For Transaxle Case Upper Cover)
9010506026 91511-H0620 Bolt (For Transaxle Case Upper Cover)
9010506029 90105-06029 Bolt(For Cylinder Head Cover)
9010506029 90105-06202 Bolt(For Cylinder Head Cover)
9010506053 90105-06053 Bolt(For Sensor Rotor Adapter)
9011905023 90119-05023 New Genuine Part
9011905024 90119-05024 New Genuine Part
9094901828 90949-01828 New Genuine Part
