Search › Model › AE112

AE112

Toyota COROLLA · 1997 · 3,598 parts · 220 categories

3,598 items

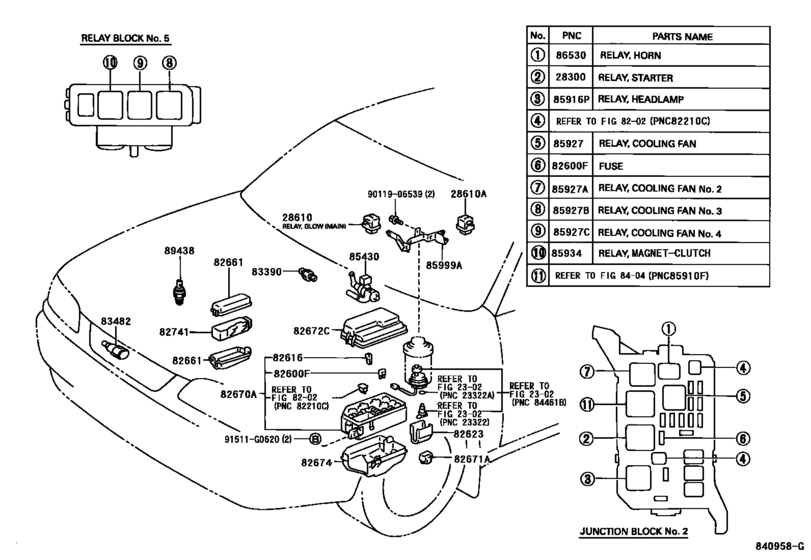

Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- )) 27

#	OEM	Part name
28300	28300-10020	Relay Assy, Starter
82600	90982-09003	Fusible Link
82600	90982-09007	Fusible Link
82600	90982-09008	Fusible Link
82600	90982-09009	Fusible Link
82600	90982-09010	Fusible Link
82600	90982-09011	Fusible Link
82600	90982-09013	Fusible Link
82616	82616-20010	Puller, Fuse
82623	82623-02010	Cover, Fusible Link, Lower
82623	82623-13010	Cover, Fusible Link, Lower
82661	82661-12200	Cover, Relay Block, No.1
82661	82661-12220	Cover, Relay Block, No.1
82670	82720-12050	Block Assy, Junction, No.1
82672	82672-12360	Cover, Junction Block
82674	82674-12010	Cover, Junction Block Lower
82741	82741-12010	Block, Engine Room Relay
85916	90987-02006	Relay
85927	85925-17010	Relay, Ignition, No.1
85927	90084-98011	Relay, Cooling Fan
85927	90987-03003	Relay Assy, Fuel Pump
85927	90080-87009	Relay, Cooling Fan, No.2
85927	90987-04004	Relay, Starter Cut
85927	90987-02012	Relay, Ignition, No.1
86530	90080-87008	Relay Assy, Circuit Opening (For Efi)
91511	91511-G0620	BOLT, FLANGE
9011906539	90119-06539	New Genuine Part

OEM	Part name	Category
28300-10020	Relay Assy, Starter	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
82616-20010	Puller, Fuse	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
82623-02010	Cover, Fusible Link, Lower	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
82623-13010	Cover, Fusible Link, Lower	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
82661-12200	Cover, Relay Block, No.1	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
82661-12220	Cover, Relay Block, No.1	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
82672-12360	Cover, Junction Block	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
82674-12010	Cover, Junction Block Lower	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
82720-12050	Block Assy, Junction, No.1	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
82741-12010	Block, Engine Room Relay	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
85925-17010	Relay, Ignition, No.1	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
90080-87008	Relay Assy, Circuit Opening (For Efi)	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
90080-87009	Relay, Cooling Fan, No.2	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
90084-98011	Relay, Cooling Fan	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
90119-06539	New Genuine Part	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
90982-09003	Fusible Link	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
90982-09007	Fusible Link	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
90982-09008	Fusible Link	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
90982-09009	Fusible Link	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
90982-09010	Fusible Link	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
90982-09011	Fusible Link	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
90982-09013	Fusible Link	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
90987-02006	Relay	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
90987-02012	Relay, Ignition, No.1	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
90987-03003	Relay Assy, Fuel Pump	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
90987-04004	Relay, Starter Cut	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
91511-G0620	BOLT, FLANGE	Switch & Relay & Computer ([05.1995 - ] ENGINE ROOM (9505- ))
