Search › Model › AE112

AE112

Toyota COROLLA · 1997 · 3,598 parts · 220 categories

3,598 items

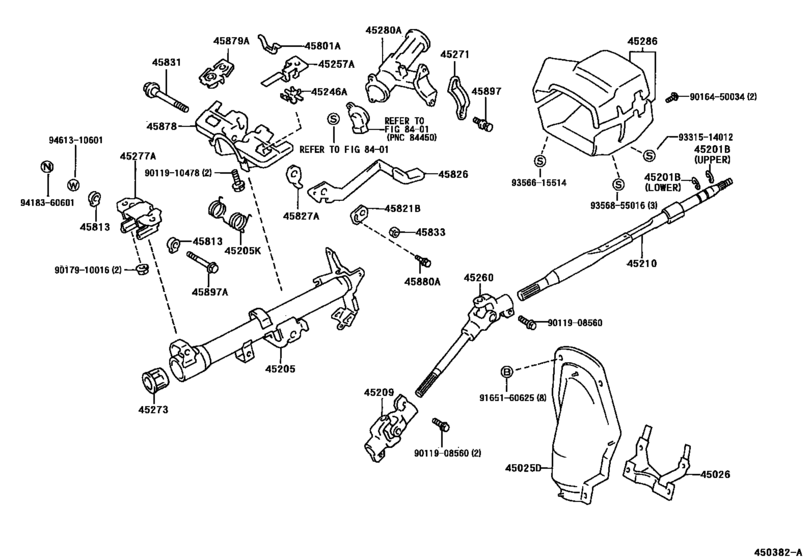

Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- )) 42

#	OEM	Part name
45025	45025-12201	Cover Sub-Assy, Steering Column Hole, No.1
45026	45026-12040	Cover Sub-Assy, Steering Column Hole, No.2
45201	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45201	90520-17269	Ring, Shaft Snap(For Steering Main Shaft)
45205	90949-03027	Spring(For Steering Column Tube)
45209	45209-12080	Yoke Sub-Assy, Steering Sliding
45210	45210-02060	Shaft Assy, Steering Main
45246	45246-12110	Guide, Steering Energy Absorbing Plate
45257	45257-12070	Plate, Steering Column Energy Absorbing
45260	45260-12450	Shaft Assy, Steering Intermediate, No.2
45271	45271-16020	Clamp, Steering Column, Upper
45273	45273-38010	Bush, Steering Main Shaft
45277	45277-12010	Support, Tilt Steering
45280	45280-12331	Bracket Assy, Steering Column, Upper
45280	45280-12341	Bracket Assy, Steering Column, Upper
45286	45286-12963-B1	Cover, Steering Column
45286	45286-12963-B0	Cover, Steering Column
45801	45875-12010	Support Sub-Assy, Steering Post
45813	45813-12010	Collar, Tilt Steering Support, No.1
45821	45821-12010	Reinforce, Tilt Steering Support, No.1
45826	45826-12040	Lever, Steering Tilt
45827	45827-12030	Lever, Steering Tilt Sub
45831	45831-12020	Bolt, Tilt Lever Lock, No.1
45833	45833-12010	Nut, Tilt Steering Adjusting, No.1
45878	45878-12220	Bracket, Steering Column Upper Support
45879	45879-12050	Capsule, Break Away
45880	45832-12010	Bolt(For Steering Tilt Lever)
45897	45897-12020	Bolt, Steering Lock Set
45897	45897-12040	Bolt, Tilt Steering Pawl Set
9011908560	90119-08560	Bolt, Hexagon
9011908560	90080-11555	Bolt w-washer
9011910478	90119-10478	New Genuine Part
9016450034	90164-50034	Direct
9016450034	93568-55014	Screw
9017910016	90179-10016	Nut(For Counter Gear Shaft)
9017910016	90179-10132	Nut
9165160625	91651-60625	New Genuine Part
9331514012	93315-14012	Screw with washer
9356615514	93566-15514	Direct
9356855016	93568-55016	Screw
9418360601	94183-60601	New Genuine Part
9461310601	94613-10601	Washer (For Primary Regulator Valve)

OEM	Part name	Category
45025-12201	Cover Sub-Assy, Steering Column Hole, No.1	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45026-12040	Cover Sub-Assy, Steering Column Hole, No.2	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45209-12080	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45210-02060	Shaft Assy, Steering Main	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45246-12110	Guide, Steering Energy Absorbing Plate	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45257-12070	Plate, Steering Column Energy Absorbing	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45260-12450	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45271-16020	Clamp, Steering Column, Upper	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45273-38010	Bush, Steering Main Shaft	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45277-12010	Support, Tilt Steering	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45280-12331	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45280-12341	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45286-12963-B0	Cover, Steering Column	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45286-12963-B1	Cover, Steering Column	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45813-12010	Collar, Tilt Steering Support, No.1	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45821-12010	Reinforce, Tilt Steering Support, No.1	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45826-12040	Lever, Steering Tilt	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45827-12030	Lever, Steering Tilt Sub	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45831-12020	Bolt, Tilt Lever Lock, No.1	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45832-12010	Bolt(For Steering Tilt Lever)	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45833-12010	Nut, Tilt Steering Adjusting, No.1	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45875-12010	Support Sub-Assy, Steering Post	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45878-12220	Bracket, Steering Column Upper Support	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45879-12050	Capsule, Break Away	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45897-12020	Bolt, Steering Lock Set	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
45897-12040	Bolt, Tilt Steering Pawl Set	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
90080-11555	Bolt w-washer	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
90119-10478	New Genuine Part	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
90164-50034	Direct	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
90179-10016	Nut(For Counter Gear Shaft)	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
90179-10132	Nut	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
90520-17269	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
90949-03027	Spring(For Steering Column Tube)	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
91651-60625	New Genuine Part	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
93315-14012	Screw with washer	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
93566-15514	Direct	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
93568-55014	Screw	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
93568-55016	Screw	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
94183-60601	New Genuine Part	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
94613-10601	Washer (For Primary Regulator Valve)	Steering Column & Shaft ([05.1995 - ] W(TILT STEERING) (9505- ))
