Search › Model › AE112

AE112

Toyota COROLLA · 1997 · 3,598 parts · 220 categories

3,598 items

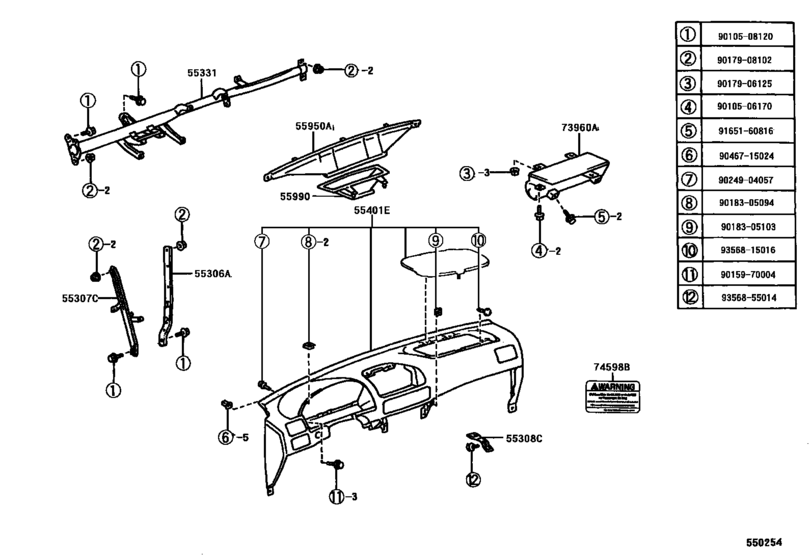

Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD) 65

#	OEM	Part name
55306	55306-12290	Brace Sub-Assy, Instrument Panel, No.1
55307	55307-12270	Brace Sub-Assy, Instrument Panel, No.2
55308	55308-12260	Bracket Sub-Assy, Instrument Panel, Center
55331	55330-12341	Reinforcement, Instrument Panel
55401	55401-12560-B1	Pad Sub-Assy, Instrument Panel Safety
55401	55401-12620-B1	Pad Sub-Assy, Instrument Panel Safety
55401	55401-12640-B1	Panel Sub-assy, Instrument Cluster Finish
55403	55403-12020	Hood Sub-Assy, Meter
55411	55411-12908-B1	Panel, Instrument Cluster Finish, No.1
55412	55405-1A060-B0	Panel, Instrument Cluster Finish, Center
55413	55413-12470	Panel, Instrument Cluster Finish, Center No.2
55432	55432-12400-B0	Panel, Instrument Panel Finish, Lower No.1
55433	55433-12170-B0	Panel, Instrument Panel Finish, Lower No.2
55434	55434-12180-B0	Panel, Instrument Panel Finish, Lower Center
55441	55441-12140-B1	Box, Instrument Panel
55444	55444-12050	Spring, Instrument Panel Box
55465	55465-12060	Insert, Instrument Panel Lower Pad, Lh
55477	55477-33010	Bezel, Cigar Lighter Hole
55510	55550-12370-B0	Door Assy, Glove Compartment
55521	55520-12010-B1	Cover, Stereo Opening
55522	55522-32010	Cover, Radio Tuner Opening
55522	55522-20070	Cover, Radio Tuner Opening
55562	55562-10010	Link, Glove Compartment Door Lock
55574	55574-10010	Shaft, Glove Compartment Door Hinge
55620	55604-12030-B1	Holder Assy, Instrument Panel Cup
55650	55650-12230-B0	Register Assy, Instrument Panel, No.1
55660	55660-12290-B1	Register Assy, Instrument Panel, No.2
55670	55670-12270-B0	Register Assy, Instrument Panel, No.3
55670	55670-12270-B2	Register Assy, Instrument Panel, No.3
55950	55950-12230	Nozzle Assy, Defroster
55990	55990-12040	Nozzle Assy, Center Defroster
73960	73960-12090	Air Bag Assy, Instrument Panel Passenger W/o Door
74598	74598-20010	Label, Driver & Passenger Air Bag Caution
81942	81942-12450-B1	Sheet, Heater Control Name
81942	81942-12460-B0	Sheet, Heater Control Name
81942	81942-12510-B1	Sheet, Heater Control Name
81942	81942-12520-B1	Sheet, Heater Control Name
5596350010	55963-50010	Retainer, Side Defroster
9010506170	90105-06170	New Genuine Part
9010506170	90105-06228	BOLT WASHER BASED
9010508120	90105-08120	New Genuine Part
9011906022	90119-06022	BOLT
9011906022	90080-11127	New Genuine Part
9015970004	90159-70004	SCREW WWASHER
9016740021	90167-40021	SCREW
9016745011	90167-45011	Direct
9017906125	90179-06125	Nut (For Rear Wiper Arm Setting)
9017908102	90179-08102	NUT
9018305018	90183-05018	Clip, Instrument Panel Finish, Lower Center
9018305094	90183-05094	NUT
9018305103	90183-05103	NUT
9024904057	90249-04057	Pin, Instrument Panel, No.1
9046710198	90467-10198	Clip(For Instrument Lower Cover)
9046715024	90467-15024	New Genuine Part
9054103015	90541-03015	Cushion, Instrument Panel Box
9054105020	90541-05020	Cushion(For Glove Compartment)
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9356755016	93567-55016	Screw
9356815012	93568-15012	SCREW
9356815012	93568-55012	SCREW
9356815014	93568-15014	Direct
9356815016	93568-15016	Sensor, Automatic Light Control
9356815016	93568-55016	Screw
9356855014	93568-55014	Screw

OEM	Part name	Category
55306-12290	Brace Sub-Assy, Instrument Panel, No.1	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55307-12270	Brace Sub-Assy, Instrument Panel, No.2	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55308-12260	Bracket Sub-Assy, Instrument Panel, Center	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55330-12341	Reinforcement, Instrument Panel	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55401-12560-B1	Pad Sub-Assy, Instrument Panel Safety	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55401-12620-B1	Pad Sub-Assy, Instrument Panel Safety	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55401-12640-B1	Panel Sub-assy, Instrument Cluster Finish	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55403-12020	Hood Sub-Assy, Meter	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55405-1A060-B0	Panel, Instrument Cluster Finish, Center	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55411-12908-B1	Panel, Instrument Cluster Finish, No.1	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55413-12470	Panel, Instrument Cluster Finish, Center No.2	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55432-12400-B0	Panel, Instrument Panel Finish, Lower No.1	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55433-12170-B0	Panel, Instrument Panel Finish, Lower No.2	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55434-12180-B0	Panel, Instrument Panel Finish, Lower Center	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55441-12140-B1	Box, Instrument Panel	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55444-12050	Spring, Instrument Panel Box	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55465-12060	Insert, Instrument Panel Lower Pad, Lh	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55477-33010	Bezel, Cigar Lighter Hole	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55520-12010-B1	Cover, Stereo Opening	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55522-20070	Cover, Radio Tuner Opening	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55522-32010	Cover, Radio Tuner Opening	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55550-12370-B0	Door Assy, Glove Compartment	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55562-10010	Link, Glove Compartment Door Lock	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55574-10010	Shaft, Glove Compartment Door Hinge	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55604-12030-B1	Holder Assy, Instrument Panel Cup	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55650-12230-B0	Register Assy, Instrument Panel, No.1	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55660-12290-B1	Register Assy, Instrument Panel, No.2	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55670-12270-B0	Register Assy, Instrument Panel, No.3	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55670-12270-B2	Register Assy, Instrument Panel, No.3	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55950-12230	Nozzle Assy, Defroster	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55963-50010	Retainer, Side Defroster	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
55990-12040	Nozzle Assy, Center Defroster	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
73960-12090	Air Bag Assy, Instrument Panel Passenger W/o Door	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
74598-20010	Label, Driver & Passenger Air Bag Caution	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
81942-12450-B1	Sheet, Heater Control Name	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
81942-12460-B0	Sheet, Heater Control Name	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
81942-12510-B1	Sheet, Heater Control Name	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
81942-12520-B1	Sheet, Heater Control Name	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
90080-11127	New Genuine Part	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
90080-11396	Bolt	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
90105-06170	New Genuine Part	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
90105-06228	BOLT WASHER BASED	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
90105-08120	New Genuine Part	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
90119-06022	BOLT	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
90159-70004	SCREW WWASHER	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
90167-40021	SCREW	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
90167-45011	Direct	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
90179-06125	Nut (For Rear Wiper Arm Setting)	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
90179-08102	NUT	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
90183-05018	Clip, Instrument Panel Finish, Lower Center	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
90183-05094	NUT	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
90183-05103	NUT	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
90249-04057	Pin, Instrument Panel, No.1	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
90467-10198	Clip(For Instrument Lower Cover)	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
90467-15024	New Genuine Part	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
90541-03015	Cushion, Instrument Panel Box	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
90541-05020	Cushion(For Glove Compartment)	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
91651-60816	BOLT	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
93567-55016	Screw	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
93568-15012	SCREW	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
93568-15014	Direct	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
93568-15016	Sensor, Automatic Light Control	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
93568-55012	SCREW	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
93568-55014	Screw	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
93568-55016	Screw	Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )LHD)
