Search › Model › AE112

AE112

Toyota COROLLA · 1997 · 3,598 parts · 220 categories
AE112 ×

← Back to categories

3,598 items

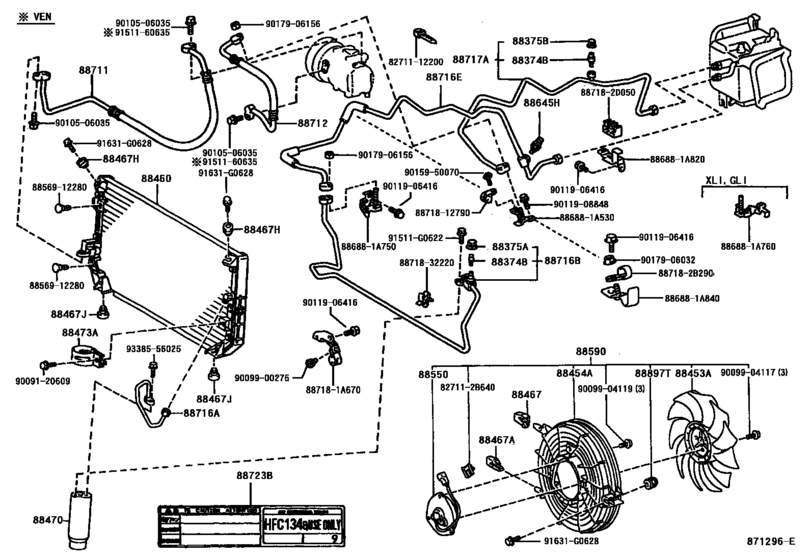

Heating & Air Conditioning - Cooler Piping ([04.1997 - ] MAKER OPTION (9704- )AE111,112,EE11#..LHD) 52
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88453 88453-10022 Fan, Cooling (For Condenser)
88454 88454-12160 Shroud, Fan
88460 88460-12480 Condenser Assy, Cooler
88467 88467-12130 Cushion, Cooler Condenser, No.1
88467 88467-12140 Cushion, Cooler Condenser, No.2
88467 88897-12250 Cushion, Condenser Bracket, No.1
88467 88467-12100 Cushion, Cooler Condenser, No.1
88470 88471-60010 Receiver & Dryer Assy, Cooler
88473 88473-20070 Holder, Receiver
88550 88550-12160 Motor, Cooling Fan
88590 88590-12250 Blower Assy, W/shroud
88645 88645-20050 Switch, Pressure
88711 88711-1A491 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-1A600 Hose, Cooler Refrigerant Suction, No.1
88716 88726-12470 Pipe, Cooler Refrigerant Liquid, A
88716 88716-1A410 Pipe, Cooler Refrigerant Liquid, B
88716 88716-1A440 Pipe, Cooler Refrigerant Liquid, E
88717 88717-1A080 Pipe, Cooler Refrigerant Suction, A
88723 88723-12120 Label, Cooler Service Caution
91511 91511-G0622 BOLT, FLANGE
91631 91631-G0628 New Genuine Part
91631 90119-06775 BOLT WWASHER
827112 82711-2B640 Wire, Fuse To Fuse(for Combustion Heater)
886881 88688-1A530 Bracket, Cooler Diaphragm
886881 88688-1A750 Bracket, Cooler Diaphragm
886881 88688-1A760 Bracket, Cooler Diaphragm
886881 88688-1A820 Bracket, Cooler Diaphragm
886881 88688-1A840 Bracket, Cooler Diaphragm
887181 88718-1A670 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2B290 Clamp(For Cooler Refrigerant Pipe), No.4
887182 88718-2D050 Pipe, Cooler Refrigerant Suction, No.2
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
8856912280 88569-12280 Clamp (for Cooler Relay)
8871812790 88718-12790 Pipe, Cooler Refrigerant Suction, No.2
8871832220 88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2
9009120609 90091-20609 BOLT
9009900275 90099-00275 New Genuine Part
9009904117 90099-04117 Bolt, Radiator Side Support Plate
9009904119 90099-04119 BOLT WASHER HEAD
9010506035 90105-06035 New Genuine Part
9011906416 90119-06416 New Genuine Part
9011908848 90119-08848 New Genuine Part
9015950070 90159-50070 New Genuine Part
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9017906156 90179-06156 Nut (For Transmission Control Cable)
9151160635 91511-60635 Bolt
9151160635 90080-10195 Bolt
9338556025 93385-56025 New Genuine Part
