AE112

Toyota COROLLA · 1997 · 3,598 parts · 220 categories
AE112 ×

← Back to categories

3,598 items

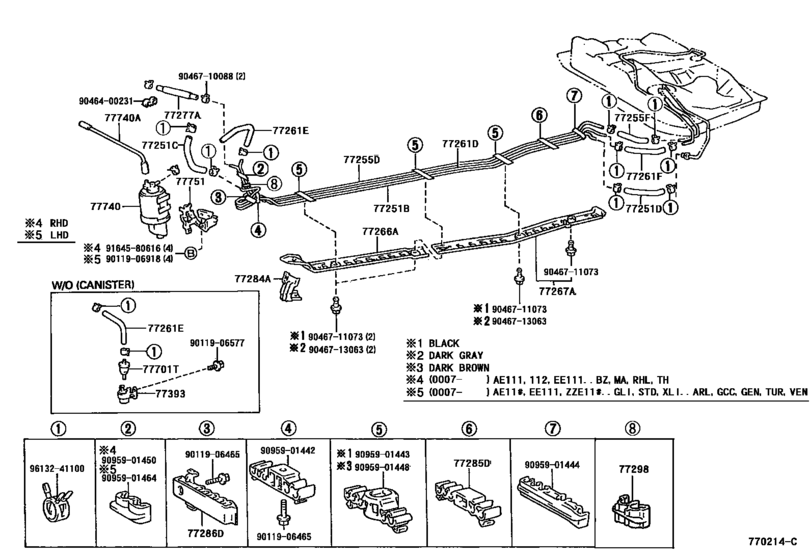

Fuel Tank & Tube ([05.1995 - ] (9505- )AE11#,EE111,ZZE11#) 33
#OEMPart name
77251 77251-12560 Tube, Fuel Main
77255 77255-12500 Tube, Fuel Return
77255 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77255 95337-06020 Hose, Differential Pressure Control
77261 77261-12330 Tube, Fuel Tank To Canister
77266 77266-12080 Protector, Fuel Tube, No.1
77267 77267-12100 Protector, Fuel Tube, No.2
77277 90447-12139 Hose, Fuel, No.1(For Return Tube, No.1)
77284 77284-12030 Protector, Fuel Tube, No.3
77285 77285-12020 Clamp, Fuel Tube W/grommet, No.1
77286 77286-12040 Clamp, Fuel Tube W/grommet, No.2
77298 77298-12010 Clamp, Fuel Tube, No.4
77740 77740-12630 Canister Assy, Charcoal
77740 90447-04147 Hose, Fuel, No.1(For Charcoal Canister)
77751 77750-12090 Bracket, Charcoal Canister Base
9011906465 90119-06465 BOLT
9011906577 90119-06577 New Genuine Part
9011906918 90119-06918 New Genuine Part
9046400231 90464-00231 Clamp, Fuel Pipe(Hose), No.1
9046710088 90467-10088 Clip, No.2(For Idle-Up Hose)
9046710088 96132-41000 Clip, No.1(For Idle-Up Hose)
9046711073 90467-11073 New Genuine Part
9046713063 90467-13063 New Genuine Part
9095901442 90959-01442 CLAMP
9095901443 90959-01443 New Genuine Part
9095901444 90959-01444 New Genuine Part
9095901448 90959-01448 CLAMP
9095901450 90959-01450 Clamp, Fuel Tube, No.1
9095901464 90959-01464 New Genuine Part
9164580616 91645-80616 New Genuine Part
9164580616 91641-C0612 New Genuine Part
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
