Search › Model › AE112

AE112

Toyota COROLLA · 1997 · 3,598 parts · 220 categories
AE112 ×

← Back to categories

3,598 items

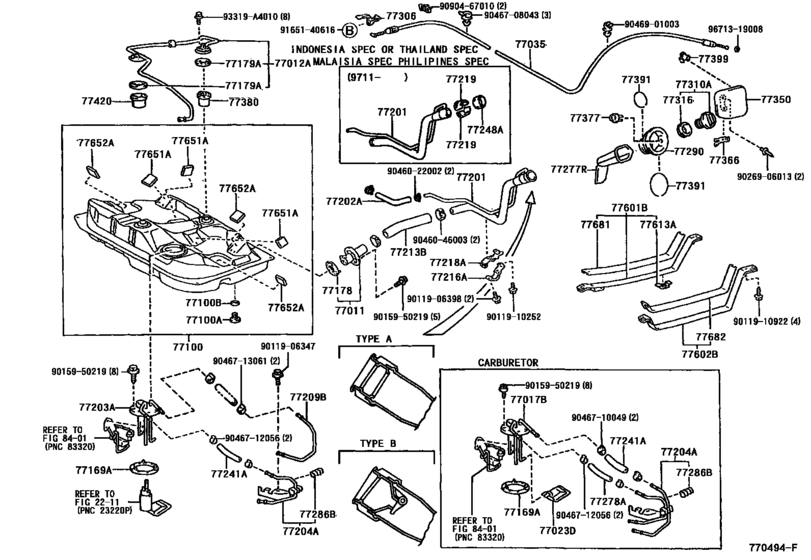

Fuel Tank & Tube ([05.1995 - ] (9505- )) 60
#OEMPart name
77035 77035-12370 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-12931 Tank Assy, Fuel
77100 90341-20004 Plug(For Fuel Tank)
77100 90430-20007 Gasket(For Fuel Tank)
77169 77169-12030 Gasket, Fuel Pump Bracket
77203 77203-12240 Bracket, Fuel Pump
77204 77204-12020 Tube Sub-Assy, Fuel Pump Return
77209 77209-12080 Tube Sub-Assy, Fuel Pump
77213 77213-12170 Hose, Fuel Tank To Filler Pipe
77213 77213-12220 Hose, Fuel Tank To Filler Pipe
77216 77216-12070 Support, Fuel Tank Filler Pipe, No.1
77218 77218-12030 Support, Fuel Tank Filler Pipe, No.3
77219 77219-20070 Cover, Fuel Tank Filler Pipe
77241 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77241 95337-06020 Hose, Differential Pressure Control
77248 77248-20030 Holder, Fuel Tank Filler Pipe Cover
77277 77277-12160 Protector, Fuel Tank Filler Pipe
77286 77285-12040 Clamp, Fuel Tube, No.1
77290 77291-12110 Shield Assy, Fuel Tank Filler Pipe
77310 77310-48010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-12410 Lid Assy, Fuel Filler Opening
77366 77360-12080 Spring, Fuel Filler Opening Lid Hinge
77377 77377-12050 Bracket, Fuel Lid Lock Control
77380 77380-26010 Valve Assy, Fuel Cut Off
77391 77391-12010 Ring, Fuel Inlet Box
77391 77391-12020 Ring, Fuel Inlet Box
77399 77399-12020 Hanger, Fuel Tank Cap
77420 77420-26010 Valve Assy, Fuel Cut Off, No.2
77601 77601-12210 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-12130 Band Sub-Assy, Fuel Tank, No.1 Lh
77613 77613-16030 Bracket, Fuel Tank Band, No.1
77651 77651-20090 Cushion, Fuel Tank, No.1
77652 77652-12100 Cushion, Fuel Tank, No.1
77681 77681-32060 Seat, Fuel Tank Band, Rh
93319 93319-A4010 SCREW WWASHER
9011906347 90119-06347 New Genuine Part
9011906398 90119-06398 BOLT WWASHER
9011910252 90119-10252 BOLT
9011910922 90119-10922 BOLT WWASHER
9011910922 90080-11654 New Genuine Part
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9026906013 90269-06013 RIVET
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046708043 90467-08043 Clamp, Hood Lock Control Cable
9046710049 90467-10049 Clamp Or Clip(For Fuel Hose Set)
9046710049 90467-10149 Clip, No.2(For Idle-Up Hose)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9046713061 90467-13061 Crip (For Fuel Tank Filler Pipe)
9046901003 90469-01003 Clamp(For Hood Lock Control Cable)
9090467010 90904-67010 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9671319008 96713-19008 New Genuine Part
