AE112

Toyota COROLLA · 1997 · 3,598 parts · 220 categories

3,598 items

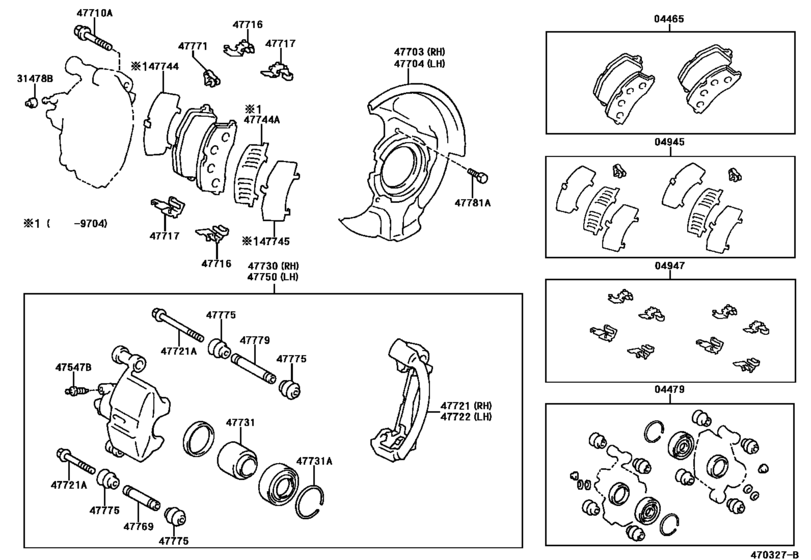

Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN) 25

#	OEM	Part name
4465	04465-12240	Pad Kit, Disc Brake, Front
4465	04465-12510	Pad Kit, Disc Brake, Front
4479	04479-12091	Cylinder Kit, Disc Brake, Front
4945	04945-12060	Shim Kit, Anti Squeal, Front
4945	04945-13020	Shim Kit, Anti Squeal, Front
4947	04947-20060	Fitting Kit, Disc Brake, Front
31478	31478-30010	Bleeder Plug Cap
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47703	47781-12170	Cover Sub-Assy, Disc Brake Dust, Front Rh
47704	47782-12170	Cover Sub-Assy, Disc Brake Dust, Front Lh
47710	90119-12040	Bolt, Hexagon(For Front Disc Brake Caliper)
47716	47716-20140	Plate, Pad Support, No.1(For Front Disc Brake)
47717	47717-20140	Plate, Pad Support, No.2(For Front Disc Brake)
47721	47721-12170	Mounting, Front Disc Brake Cylinder, Rh
47721	90119-09003	Bolt(For Front Disc Brake Cylinder Slide)
47721	90119-09004	Bolt(For Front Disc Brake Cylinder Slide)
47730	47730-12410	Cylinder Assy, Front Disc Brake, Rh
47731	47731-12150	Piston, Front Disc Brake
47731	90522-61001	Ring, Set(For Front Disc Brake Piston)
47750	47750-12410	Cylinder Assy, Disc Brake, Lh
47769	47769-12030	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47771	47771-12050	Plate, Pad Wear Indicator, No.1
47775	47775-32010	Boot, Bush Dust(For Front Disc Brake)
47779	47779-16010	Bush, Cylinder Slide, No.2(For Front Disc Brake)
47781	90109-06134	Bolt(For Dust Cover To Steering Knuckle Arm Setting)

OEM	Part name	Category
04465-12240	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
04465-12510	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
04479-12091	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
04945-12060	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
04945-13020	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
04947-20060	Fitting Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
31478-30010	Bleeder Plug Cap	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
47547-20010	Plug, Bleeder(For Release Cylinder)	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
47716-20140	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
47717-20140	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
47721-12170	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
47730-12410	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
47731-12150	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
47750-12410	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
47769-12030	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
47771-12050	Plate, Pad Wear Indicator, No.1	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
47775-32010	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
47779-16010	Bush, Cylinder Slide, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
47781-12170	Cover Sub-Assy, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
47782-12170	Cover Sub-Assy, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
90109-06134	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
90119-09003	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
90119-09004	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
90119-12040	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
90522-61001	Ring, Set(For Front Disc Brake Piston)	Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9505-9610) ; (9610- )EE110 ; (9610- )AE11 #,CE110,EE111..GCC,GEN,GENKD,IDN,MA ,NZ,PHL,TH,VEN)
